Automotive Parts XGT2 Flexible Coupling - High Damping Capacity Rubber Type - Standard Type
-
Highlight
Automotive Parts Flexible Coupling
,Standard Type Flexible Coupling
,High Damping Capacity Rubber Type Coupling
-
Product NameXGT2 Flexible Coupling
-
Product TypeRubber Type With High Damping Capacity
-
Allowable Torque65
-
Material QualityAluminum Alloy
-
Maximum Speed42000
-
ToleranceEccentricity, Deviation Angle, And Axial Deviation
-
Axis Locking MethodScrew Clamping Type
-
ColourBlack
-
Place of OriginChina
-
Model NumberXGT2
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging
Automotive Parts XGT2 Flexible Coupling - High Damping Capacity Rubber Type - Standard Type
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:

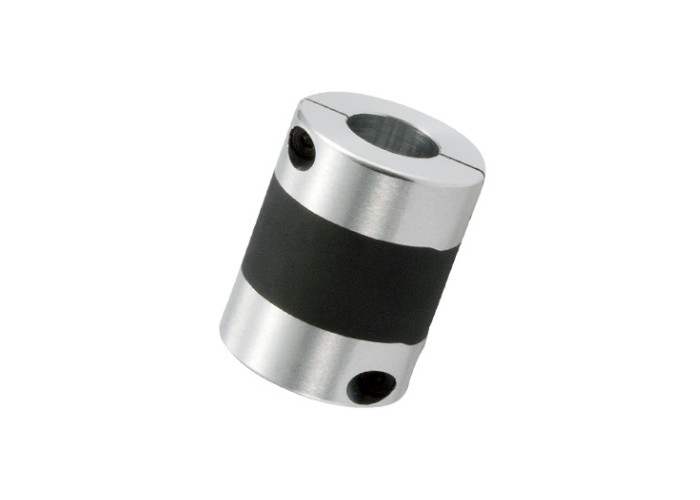

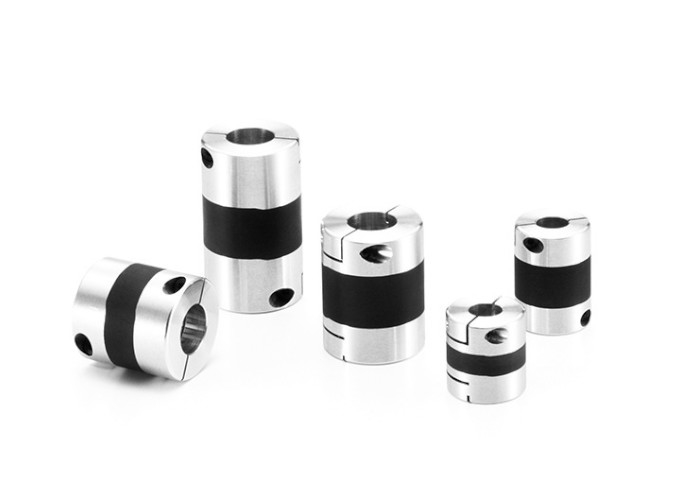

The XGT2 series flexible coupling is a precision mechanical component that combines high vibration reduction capability, high torsional rigidity, high torque transmission capability, and electrical insulation.
This series adopts a high damping rubber and two end shaft sleeve integrated molding design, which not only optimizes the damping and rigidity performance, but also significantly improves the high gain ability of the servo motor and shortens the setting time. Its standard, extended, and short form have all been standardized and are widely used in high-precision industrial fields such as semiconductor production equipment, packaging machines, machine tools, and packaging machines.
The XGT2 series ensures stable operation in high-intensity working environments through excellent physical properties, chemical resistance, and good heat and oil resistance, providing strong support for improving production efficiency and product quality. Providing strong support for improving production efficiency and product quality.
Technical Parameter:
| Model | XGT2-15C | XGT2-19C | XGT2-25C | XGT2-27C | XGT2-30C | XGT2-34C | XGT2-39C |
| Maximum shaft aperture (mm) | 6 | 8 | 12 | 14 | 15 | 16 | 20 |
| Maximum shaft aperture for keyway machining (mm) | - | 6 | 9 | 10 | 11 | 12 | 15 |
| Rated torque (N · m) | 1.1 | 2.1 | 4 | 4 | 6.3 | 8 | 13.5 |
| Maximum speed (min-1) | 42000 | 33000 | 25000 | 23000 | 21000 | 18000 | 16000 |
| Inertia moment (kg · m2) | 2.6x10-7 | 7.6x10-7 | 2.7x10-6 | 3.7x10-6 | 6.3x10-6 | 1.2x10-5 | 2.5x10-5 |
| Static torsional rigidity (N · m/rad) | 110 | 240 | 390 | 400 | 590 | 890 | 1100 |
| Allowable eccentricity (mm) | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 |
| Allowable deviation angle (°) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Allowable axial deviation (mm) | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.3 | ±0.3 | ±0.3 |
| Quality (g) | 9 | 15 | 29 | 33 | 45 | 66 | 105 |
Applicable scenarios:
The XGT2 series high damping rubber flexible coupling is widely used in high-end manufacturing fields such as semiconductor production equipment, packaging machines, machine tools, and transmission systems. Its excellent high gain, high torsional rigidity, high torque transmission capability, as well as excellent vibration damping and electrical insulation, make this series of couplings perform outstandingly in improving equipment production efficiency, shortening setting time, and optimizing product positioning accuracy, which helps to improve product quality and production efficiency.
Product Function:
High damping performance: Using rubber material, it effectively absorbs and reduces vibration and impact during equipment operation, protects the equipment, and extends its service life.
Zero backlash: Ensure that the coupling has no gap when transmitting power, improving transmission accuracy and stability.
High torsional rigidity: Maintain excellent rigidity and stability when transmitting high torque, reducing energy loss and mechanical wear.
Electrical insulation: Rubber materials provide excellent electrical insulation performance, ensuring the safe operation of equipment in electrical environments.
High torque transmission: Designed to withstand high torque loads and meet high-power transmission requirements.
