Automotive Parts MLDS-B Flexible coupling - single diaphragm type (expansion sleeve type)
-
Highlight
expansion sleeve type Flexible coupling
,MLDS-B Flexible coupling
,single diaphragm type Flexible coupling
-
Product NameMLDS-B Expansion Sleeve Flexible Coupling
-
Product TypeSingle Membrane Type
-
Material QualityCarbon Steel
-
DiaphragmSingle Film Sheet
-
CharacteristicHigh Torque
-
Maximum Speed13000
-
ColourPrimary Colours
-
Axis Locking MethodTight Expansion Type
-
Place of OriginChina
-
Model NumberMLDS-B
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging

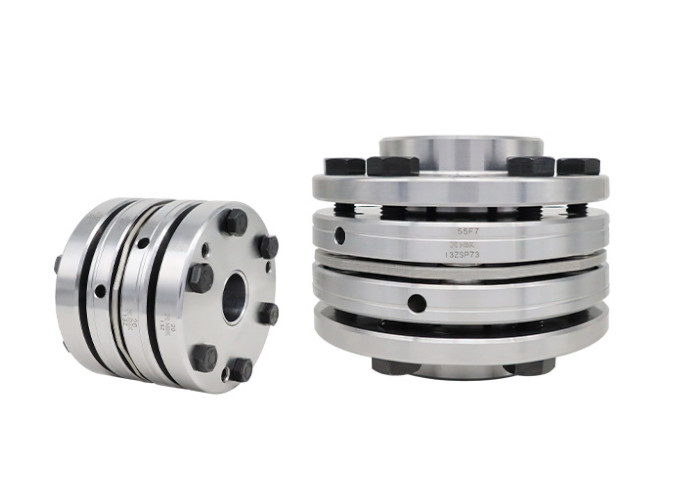

Automotive Parts MLDS-B Flexible coupling - single diaphragm type (expansion sleeve type)
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:
MLDS-B is a high-performance single diaphragm type (expansion sleeve type) flexible coupling. This coupling is characterized by zero backlash, high torsional rigidity, and high torque transmission capability, and is designed specifically for transmission systems that require high precision and stability. Its unique expansion sleeve connection method ensures a reliable connection between the shaft and the coupling, adapting to the needs of various working conditions.
Technical Parameter:
| Model | MLDS-64B | MLDS-79B | MLDS-90B | MLDS-100B | MLDS-125B | MLDS-140B | MLDS-150B |
| Maximum shaft aperture (mm) | 35 | 40 | 48 | 50 | 65 | 70 | 80 |
| Rated torque (N · m) | 100 | 200 | 300 | 500 | 800 | 1300 | 1600 |
| Maximum speed (min-1) | 20000 | 16000 | 14000 | 13000 | 10000 | 9000 | 8000 |
| Inertia moment (kg · m2) * 2 | 4.8x10-4 | 1.2x10-3 | 2.0x10-3 | 3.7x10-3 | 1.0x10-2 | 1.5x10-2 | 2.2x10-2 |
| Static torsional rigidity (N · m/rad) | 23000 | 45000 | 48000 | 65000 | 80000 | 10000 | 140000 |
| Allowable eccentricity (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Allowable deviation angle (°) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Allowable axial deviation (mm) | ±0.5 | ±0.5 | ±0.65 | ±0.65 | ±0.8 | ±0.8 | ±0.8 |
| Quality (g) | 740 | 1300 | 1600 | 2400 | 4200 | 5400 | 6400 |
Applicable scenarios:
MLDS-B flexible couplings are widely used in various mechanical equipment that requires high-precision transmission and connection, including but not limited to:
Machine tool: Ensure high-precision connection between the machine tool spindle and transmission components to improve machining accuracy.
Molding machine: During the molding process such as injection molding and stamping, it transmits large torque while absorbing vibration to protect the equipment from impact damage.
Printing machinery: Maintain stable power transmission during high-speed printing to ensure printing quality.
Packaging machinery: In the packaging line, it achieves fast and accurate motion transmission, improving packaging efficiency.
Product Function:
High precision transmission:Zero backlash design ensures high precision during transmission and reduces error accumulation.
High torsional rigidity:Provides strong torsional rigidity, maintaining stable performance even when rotating at high speeds or subjected to large torques.
High torque transmission:Support high torque transmission to meet the power requirements of high-power equipment.

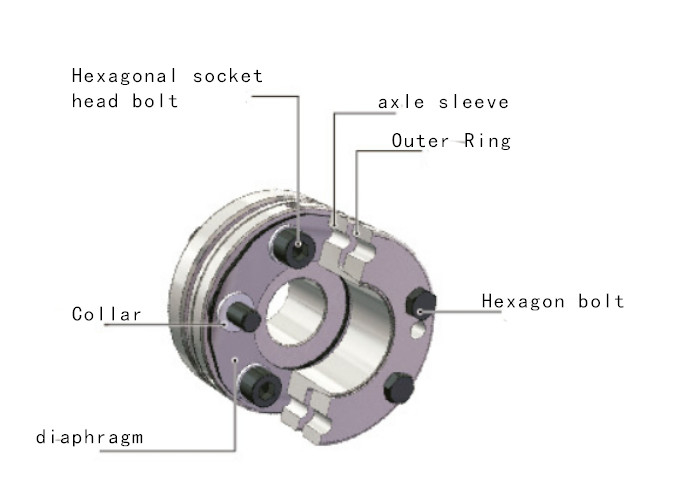

Deviation compensation:The stainless steel diaphragm design allows for a certain degree of eccentricity, deflection angle, and axial deviation, protecting the equipment from accidental impacts.
Safe and reliable:The expansion sleeve connection method is firm and reliable, ensuring a stable connection state even under harsh working conditions.
Easy installation:Detailed installation and disassembly instructions, as well as the accompanying hexagonal bolts, make the installation process easier and faster.
