Automotive Parts XUT-C Flexible Coupling - Cross Joint Type - Clamping Type

Automotive Parts XUT-C Flexible Coupling - Cross Joint Type - Clamping Type

  • Highlight

    Cross Joint Type Flexible Coupling

    ,

    Automotive Parts Flexible Coupling

    ,

    Clamping Type Flexible Coupling

  • Product Name
    XUT-C Flexible Coupling
  • Product Type
    Cross Joint Type - Clamping Type
  • Allowable Torque
    6
  • Allowable Deviation Angle
    1
  • Maximum Speed
    42000
  • Characteristic
    High Torsional Rigidity
  • Axis Locking Method
    Screw Clamping Type
  • Number Of Sections
    Integrated
  • Place of Origin
    China
  • Model Number
    XUT-C
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

Automotive Parts XUT-C Flexible Coupling - Cross Joint Type - Clamping Type

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

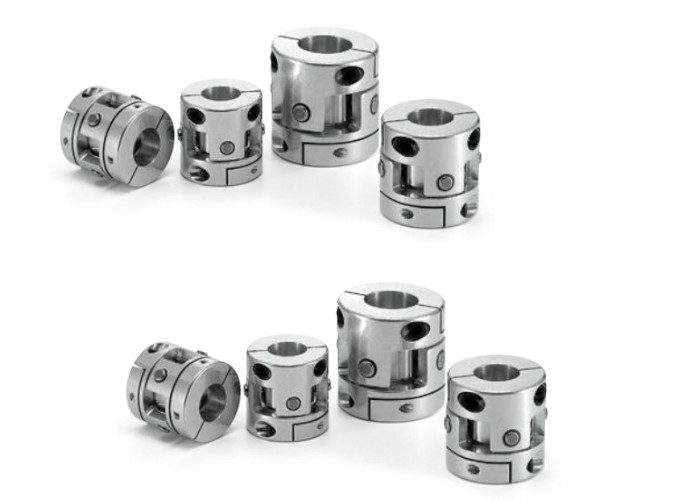

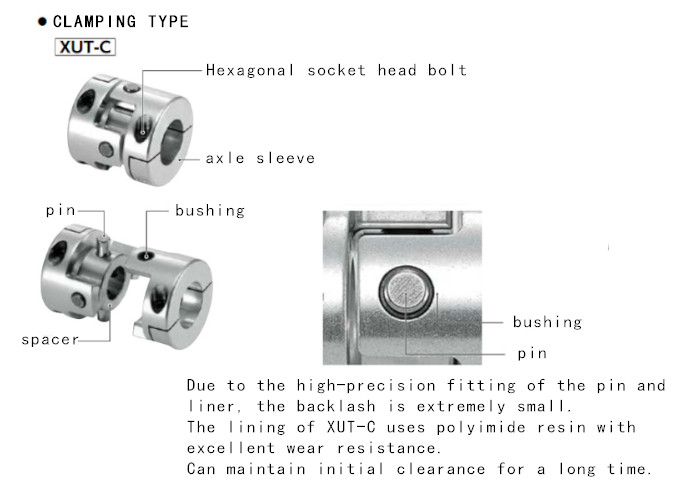

The XUT-C flexible coupling is a precision mechanical component designed with a clamping cross joint, which has high torsional rigidity, excellent vibration reduction, and minimal eccentric reaction force. Its unique structure allows for a certain degree of eccentricity and deviation angle through the sliding mechanism of built-in bushings and spacer pins, while maintaining minimal backlash, making it suitable for mechanical transmission systems with high precision requirements.

Technical Parameter:

Model XUT-15C XUT-20C XUT-25C XUT-30C XUT-35C XUT-40C
Maximum shaft aperture (mm) 6 8 12 14 16 20
Rated torque (N · m)  0.3 0.6 1.2 2.4 4 6
Maximum speed (min-1) 42000 31000 25000 21000 18000 15000
Inertia moment (kg · m2 2.3x10-7 8.1x10-7 2.7x10-6 6.2x10-6 1.3x10-5 2.6×10-5
Static torsional rigidity (N · m/rad) 200 400 900 1300 2200 2300
Allowable eccentricity (mm) 0.2 0.2 0.2 0.2 0.2 0.2
Allowable deviation angle (°) 1 1 1 1 1 1
Quality (g)  8 16 33 53 81 120

Automotive Parts XUT-C Flexible Coupling - Cross Joint Type - Clamping Type 0Automotive Parts XUT-C Flexible Coupling - Cross Joint Type - Clamping Type 1

Applicable scenarios:

XUT-C flexible couplings are widely used in mechanical equipment that requires precise control and low error transmission, such as actuators, XY axis sliding tables, indexing tables, etc. It can effectively reduce the shaft load caused by equipment vibration or installation errors, improve the stability and reliability of system operation, and reduce maintenance costs.

Product Function:

Vibration reduction and deviation adjustment: By using the pin slip between the bushing and the spacer embedded in the shaft sleeve, eccentricity and deviation angle are allowed to exist, reducing the load on the shaft.

High precision transmission: Due to the high-precision fitting of the pin and bushing, a very small backlash is achieved, maintaining long-term stable transmission accuracy.

Error adjustment: The error adjustment amount is small, reducing the load on components such as bearings and improving the overall stability and lifespan of the system.
