Automotive Parts MSF Flexible Coupling  Serrated Type Excellent Elasticity Effect

Automotive Parts MSF Flexible Coupling Serrated Type Excellent Elasticity Effect

  • Highlight

    Excellent elasticity effect MSF Flexible Coupling

    ,

    serrated type MSF Flexible Coupling

    ,

    Automotive Parts MSF Flexible Coupling

  • Product Name
    MSF Flexible Coupling
  • Product Type
    Zigzag
  • Allowable Torque
    6
  • Allowable Deviation Angle
    2
  • Maximum Speed
    39000
  • Characteristic
    Large Allowable Error Adjustment Amount
  • Axis Locking Method
    Screw Fixed Type
  • Number Of Sections
    Double Section Style
  • Place of Origin
    China
  • Model Number
    MSF
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

Automotive Parts MSF Flexible Coupling Serrated Type Excellent Elasticity Effect

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

MSF flexible coupling, as a high-performance product, is widely used in various mechanical equipment that require efficient transmission and stable connection due to its large allowable error adjustment, excellent vibration reduction performance, and low-cost characteristics. This product achieves torque transmission through the close engagement of serrations, with a simple and efficient structure, making it particularly suitable for situations with high tolerance for shaft to shaft deviations.

Technical Parameter:

Model MSF-16 MSF-20 MSF-25 MSF-32
Maximum shaft aperture (mm) 8 10 12 15
Rated torque (N · m)  0.5 1 1.5 3
Maximum Torque(N · m) 1 2 3 6
Maximum speed (min-1) 39000 31000 25000 19000
Inertia moment (kg · m2 9.0x10-7 2.7x10-6 8.1x10-6 2.5x10-5
Static torsional rigidity (N · m/rad) 4.4 9.5 20 52
Allowable eccentricity (mm) 0.2 0.2 0.2 0.2
Allowable deviation angle (°) 2 2 2 2
Quality (g)  22 42 81 150

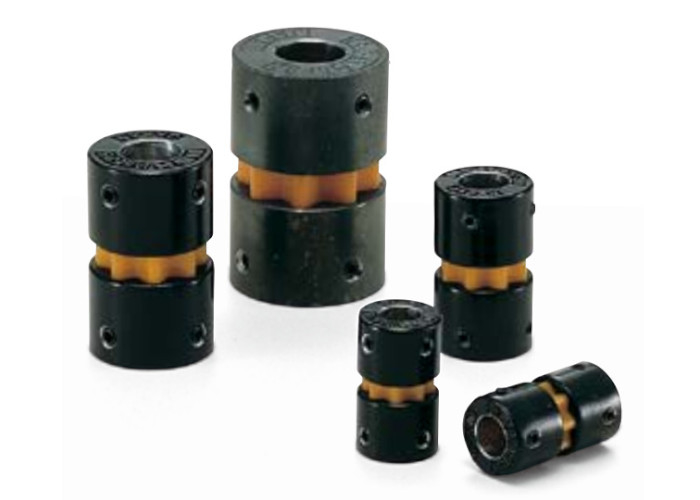

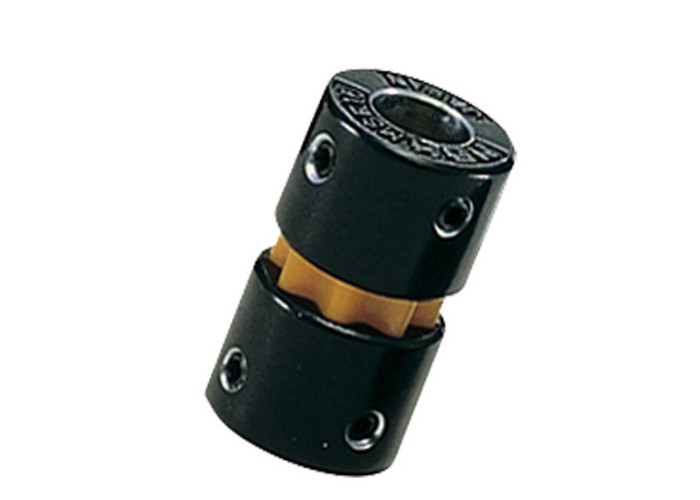

Automotive Parts MSF Flexible Coupling  Serrated Type Excellent Elasticity Effect 0Automotive Parts MSF Flexible Coupling  Serrated Type Excellent Elasticity Effect 1

Applicable scenarios:

MSF flexible couplings are particularly suitable for the following situations due to their excellent deviation adjustment ability and vibration reduction performance:

Blender: During the mixing process, the equipment often generates vibrations and shaft deviations due to changes in load. MSF couplings can effectively absorb these vibrations and maintain the smooth operation of the equipment.

Entertainment equipment: In entertainment facilities such as carousels, Ferris wheels, etc., there are extremely high requirements for equipment stability and passenger comfort. MSF couplings provide reliable power transmission for entertainment equipment with their excellent performance.

Product Function:

Torque transmission: Through precise meshing of serrations, efficient and stable torque transmission is achieved, ensuring the continuity and accuracy of power transmission.

Deviation adjustment: allows for larger eccentricities and deviations, ensuring the normal operation and power transmission of the coupling even when there is a certain deviation between the shafts.

Vibration and noise reduction: Excellent elastic effect, effectively absorbing and alleviating vibration and impact during equipment operation, reducing noise, improving equipment stability and service life.

Installation and maintenance: The design is simple, the installation is convenient and fast, and detailed installation and maintenance instructions are provided for users to operate and maintain.

Economic efficiency: While ensuring high performance, MSF flexible couplings also have the advantage of low cost, saving users equipment investment and operating costs.
