Automotive Parts Rigid Coupling Screw Clamping Type with Aluminum Alloy Material

Automotive Parts Rigid Coupling Screw Clamping Type with Aluminum Alloy Material

  • Highlight

    Automotive Parts Rigid Coupling

    ,

    Aluminum Alloy Rigid Coupling

    ,

    Screw Clamping Rigid Coupling

  • Product Name
    MRG Flexible Coupling
  • Product Type
    Positioning Screw Fixed Type
  • Allowable Torque
    35
  • Material Quality
    Aluminum Alloy
  • Installation Hole Type
    Circular Hole Type
  • Characteristic
    High Torque, Zero Backlash, High Rigidity
  • Axis Locking Method
    Screw Clamping Type
  • Number Of Sections
    Single Section Style
  • Place of Origin
    China
  • Model Number
    MRG
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

Automotive Parts Rigid Coupling Screw Clamping Type with Aluminum Alloy Material

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

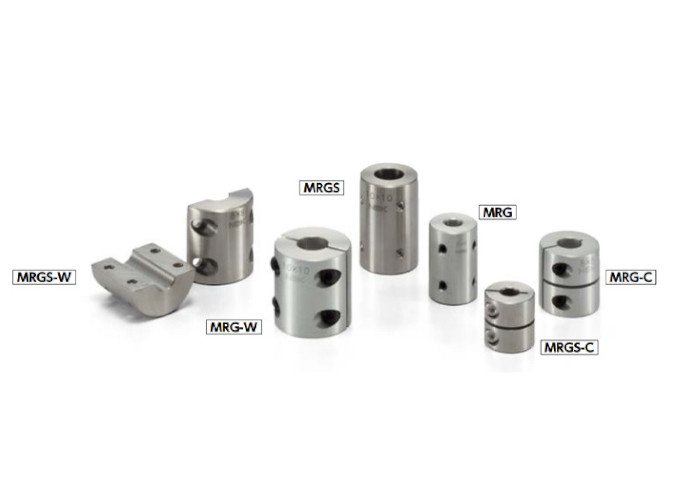

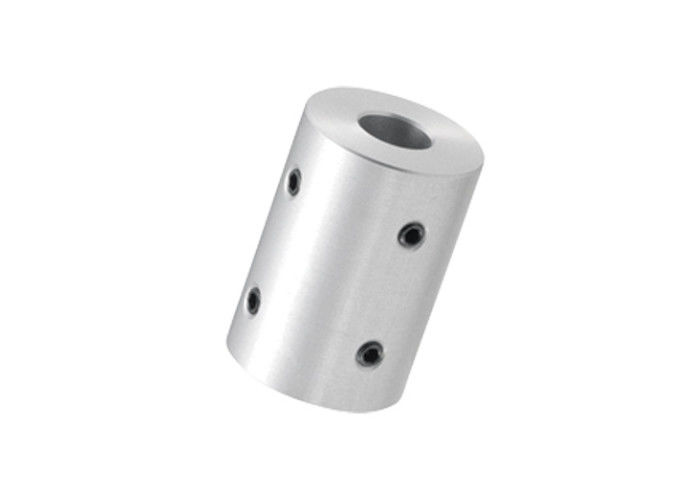

MRG rigid coupling is a precision mechanical connecting component made of aluminum alloy or all stainless steel material, with extremely high rigidity and responsiveness. This product offers three connection methods: fixed with positioning screws, clamped, and separated, to meet different application needs. Its design is compact, lightweight, and has minimal inertia moment, making it suitable for transmission systems that require high precision and responsiveness.

Technical Parameter:

Model MRG-16 MRG-20 MRG-25 MRG-32 MGR-40
Maximum shaft aperture (mm) 8 10 12 16 20
Rated torque (N · m)  1 2.5 4.5 10 20
Maximum speed (min-1) 39000 31000 25000 19000 15000
Inertia moment (kg · m2 4.4x10-7 1.3x10-6 3.9x10-6 1.2x10-5 2.8×10-5
Quality (g)  11 20 39 71 114

Automotive Parts Rigid Coupling Screw Clamping Type with Aluminum Alloy Material 0Automotive Parts Rigid Coupling Screw Clamping Type with Aluminum Alloy Material 1

Applicable scenarios:

MRG rigid couplings are widely used in high-precision mechanical equipment such as precision XY axis sliding tables, machine tools, and cleaning devices. Its excellent rigidity and lightweight design help improve the overall performance of the equipment and ensure the efficient and stable operation of the transmission system. At the same time, the product's various materials and connection methods also enable it to perform excellently under different working conditions.

Product Function:

Rigid connection: As a rigid coupling, it provides a stable shaft to shaft connection, ensuring transmission efficiency and accuracy.

High responsiveness: Due to its lightweight and low inertia moment design, it has a fast response speed and is suitable for applications with large dynamic changes.

Strong adaptability: By selecting different connection methods and materials, it meets the usage needs under different working conditions and provides flexible solutions.
