Phosphor Copper IDC Connector for Dependable Performance and Easy Crimp Installation

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

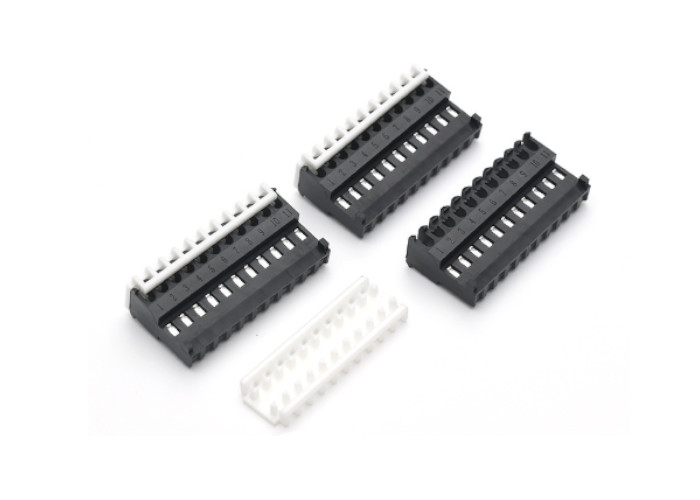

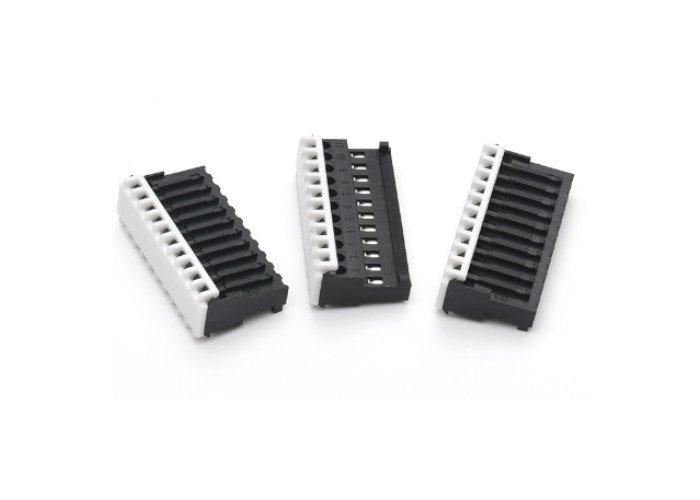

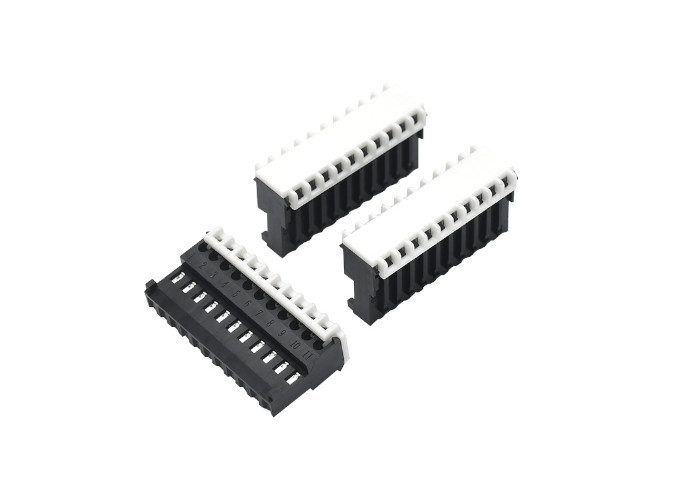

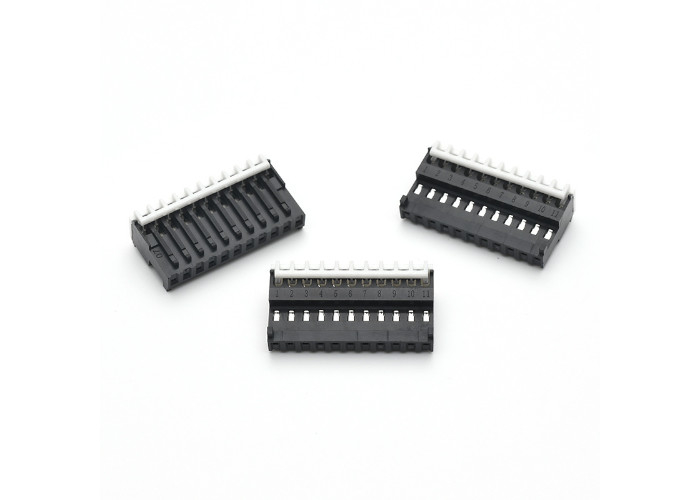

The M2050 series is a 2.54mm puncture type IDC (Insulation Displacement Connector) connector made of PA66 black material, with the 640440 model and equipped with a cover (643077). This connector is suitable for application scenarios that require fast and reliable electrical connections. It connects wires by puncturing the insulation layer without the need for wire stripping, simplifying the installation process.

Technical Parameter:

Applicable scenarios:

The M2050 series 2.54mm puncture type IDC connector is widely used in various fields that require fast electrical connections, including but not limited to: electronic device manufacturing, circuit board assembly, automation control systems, automotive electronics, household appliances, communication equipment, LED lighting systems, sensor connections. These connectors are particularly suitable for situations that require high-density and reliable connections, and their puncture design makes installation more convenient and improves production efficiency.

Product Function:

Quick connection: By puncturing the insulation layer, the wire can be quickly connected without stripping, saving time and labor costs.

Reliable electrical contact: Ensure a reliable electrical connection between the wire and the connector, reduce contact resistance, and improve signal transmission quality.

Space saving: The compact design allows the connector to install more wires in a limited space, improving the miniaturization and integration of the equipment.

Easy to install: The crimping installation method allows the connector to be easily fixed on the circuit board while providing a stable connection effect.

Durability: Made of PA66 material, it has good chemical resistance, heat resistance, and mechanical strength, ensuring that the connector can still work normally in harsh environments.

High flexibility: Suitable for various wire specifications and arrangements, meeting the needs of different application scenarios.

Safety: The puncture design avoids the risk of short circuit and electric shock that may occur during the wire stripping process, improving the safety of operation.

Environmental friendliness: Complies with relevant environmental standards, materials are recyclable, and reduces the impact on the environment.

Cost effectiveness: The efficient connection method and durability reduce maintenance costs and replacement frequency, resulting in good cost-effectiveness.
