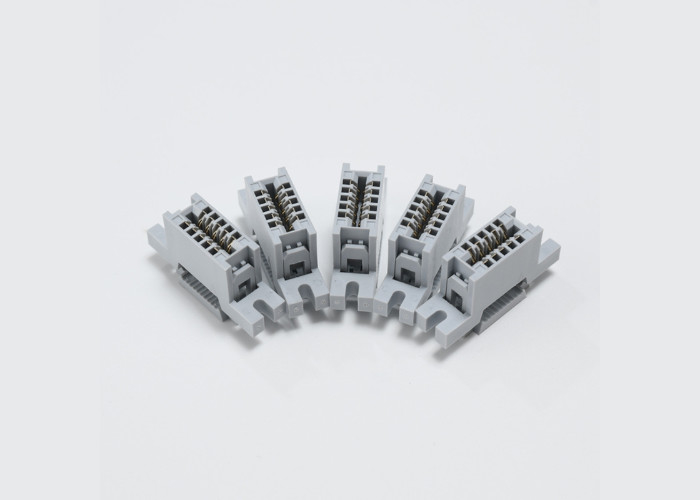

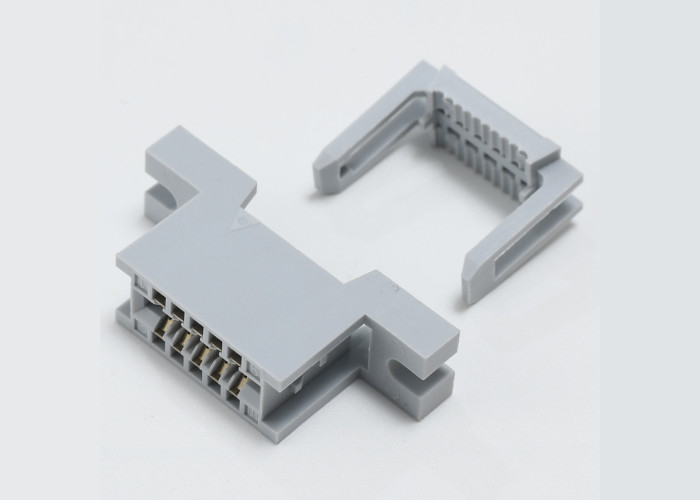

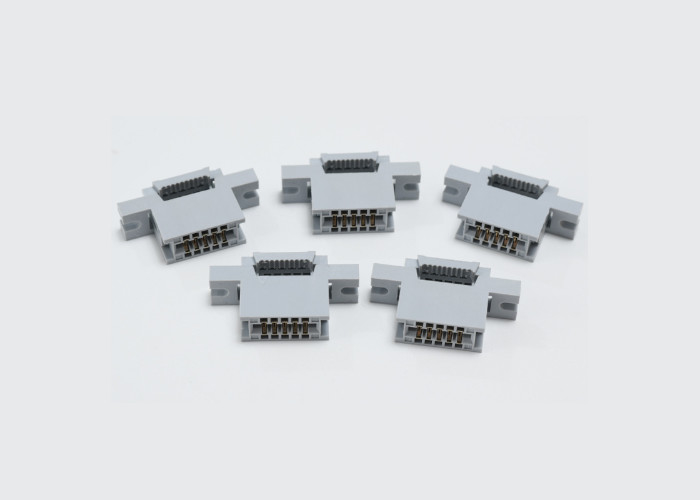

Gray White Half Ear Double Row Socket Connector with IP12 Rating Enhancing Stability

Gray White Half Ear Double Row Socket Connector with IP12 Rating Enhancing Stability

  • Highlight

    Double Row Half Ear Socket Connector

    ,

    Gray White Half Ear Socket Connector

    ,

    IP12 Rating Half Ear Socket Connector

  • Product Name
    Gold Finger Slot Double Row Socket Connector
  • Color
    Gray White
  • Row Number
    Double Row
  • Installation Type
    Direct Insertion Type
  • Pin Count
    10 Pins
  • IP Rating
    IP12
  • Shell Type
    Half Ear Design
  • Application Type
    PCB Board Connection
  • Connection Method
    Gold Finger Slot
  • Place of Origin
    CHINA
  • Model Number
    2.54
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

Gray White Half Ear Double Row Socket Connector with IP12 Rating Enhancing Stability

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

The gold finger slot dual row socket connector is designed specifically for electronic devices, and its unique dual row slot structure significantly improves connection stability and signal transmission efficiency. Its half ear gray white appearance is not only beautiful and elegant, but also meets the IP12 protection level standard, effectively resisting external environmental interference. This connector is suitable for various PCB board connection scenarios and has become the preferred accessory for many electronic device manufacturers due to its excellent electrical performance and reliable mechanical structure. Whether in the fields of precision instruments, communication equipment, or consumer electronics, the gold finger slot dual row socket connector can play an important role in ensuring efficient and stable connections between devices.

Technical Parameter:

Product Name CE Half Ear Grey
Colloidal material PBT
Iron shell material nothing
Terminal material bronze
Iron shell electroplating nothing
Maximum withstand voltage 500V
insulation resistance 1000MΩ Min
contact resistance 20mΩ Max

Applicable scenarios:

This product is widely used in various electronic devices and acts as a connection bridge between PCB boards and other components. In the field of industrial control systems, with its stable and reliable performance, it helps industrial production run efficiently and accurately. In terms of communication equipment, it ensures the integrity of data transmission and provides a guarantee for the smooth exchange of information. In computers and peripheral devices, it closely connects various components and guarantees the normal operation of the computer system. In the field of automotive electronics, this product plays an important role in the complex automotive electronic environment and provides reliable electrical connections for the safety and intelligence of automobiles. In short, it provides stable and reliable electrical connections and is a key element to ensure the normal operation of equipment and the integrity of data transmission.

Product Function:

Connection function: It is tightly connected to the PCB board through the gold finger slot to achieve reliable signal transmission.

Stability: The double row design increases the stability and durability of the connection, reducing looseness caused by vibration or external forces.

Protection: Compliant with IP12 protection level, with certain dust and water resistance, suitable for different working environments.

Easy to install: The direct insertion design simplifies the installation process and improves production efficiency.

Signal transmission: Efficiently transmit electronic signals to ensure the accuracy and speed of communication between devices.

Support and Services



  • 24/7 customer service support to answer any questions.
  • Expert advice on product selection and troubleshooting.
  • Detailed product information and training materials.
  • Full warranty and repair services.
  • Product updates and upgrades.

Packing and Shipping

Half ear gray white gold finger slot dual row socket connector is packaged and shipped in a cardboard box that is designed to keep the product safe and secure during transit. The box has a custom-sized insert to fit the product securely, and is sealed with tape. Inside the box, the product is wrapped in bubble wrap and foam padding to provide additional cushioning and protection. A packing slip and any promotional materials are included in the package.The package is then shipped via a reliable carrier such as UPS or FedEx. Tracking information is provided to the customer to follow the package's progress. Delivery time will vary depending on the chosen shipping method and destination.

The package is then shipped via a reliable carrier such as UPS or FedEx. Tracking information is provided to the customer to follow the package's progress. Delivery time will vary depending on the chosen shipping method and destination.
