High-Density 2.54mm Pitch Gold-Plated 10P Socket for DC3 PCB Connector Element

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

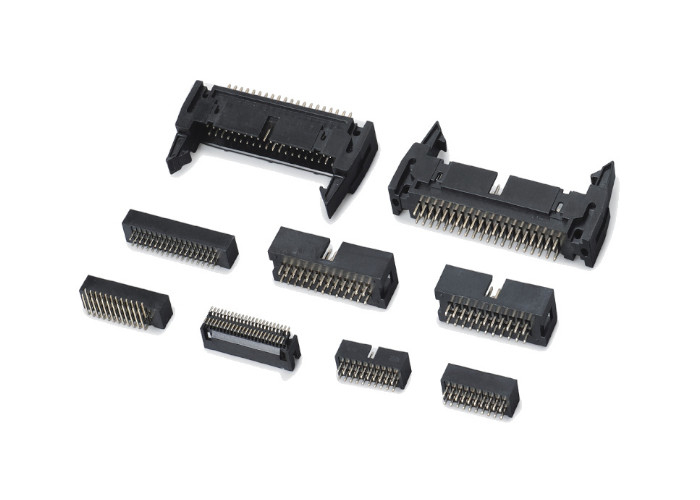

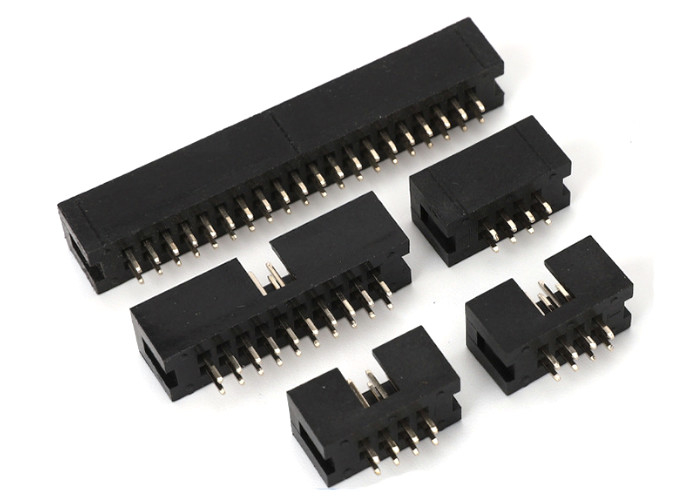

This product is a dual row 2.54mm pitch gold-plated environmentally friendly 10P socket, uniquely designed with a 90 degree bent pin for easy PCB board installation. Its gold-plated surface not only enhances conductivity, but also increases corrosion resistance and oxidation resistance, reflecting the perfect combination of environmental protection and practicality. Suitable for electronic devices with high requirements for connection density and signal transmission, such as communication equipment, computer boards, etc., it is an indispensable and important component in the field of modern electronic engineering.

Technical Parameter:

Applicable scenarios:

Electronic device connection: widely used in various electronic devices, such as communication equipment, computer hardware, industrial control boards, etc., for connecting components and circuits on circuit boards.

Signal transmission: Due to its low contact resistance and stable electrical performance, it is particularly suitable for applications that require high-quality signal transmission.

Power distribution: In a power distribution system, it serves as an interface for power input and output to ensure stable power supply.

Product Function:

Connection function: Provide stable and reliable electrical connections to ensure that the components on the circuit board can work properly.

Signal transmission: Ensure efficient and low loss transmission of signals on the circuit board, and improve the overall performance of the equipment.

Protection function: The design of gold plating and environmentally friendly materials helps prevent oxidation and corrosion, extending the service life of the product.

Compatibility: Designed with a spacing of 2.54mm, compatible with most standard electronic components for easy integration and replacement.

Easy installation: Supports PCB board installation, with a simple and fast installation process, reducing production costs and cycles.
