Compact Pin Cylinder for Tight Spaces Auto Return Spring Action Work Pressure 0.05-1.0

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

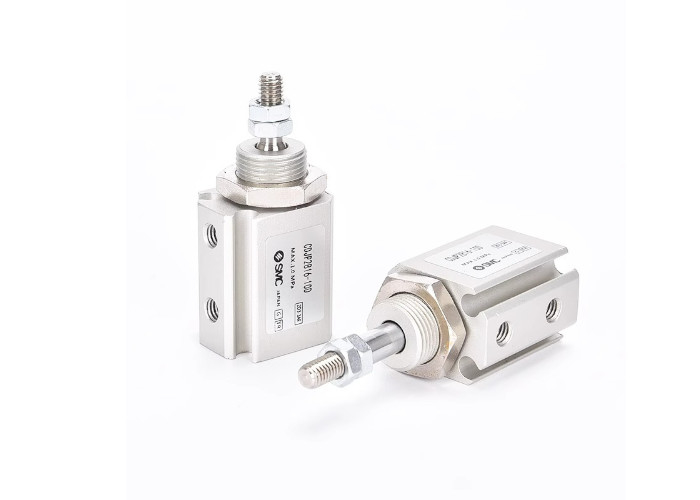

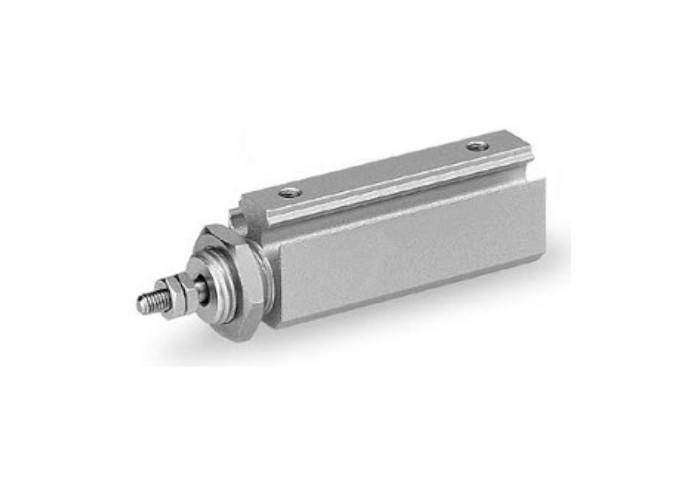

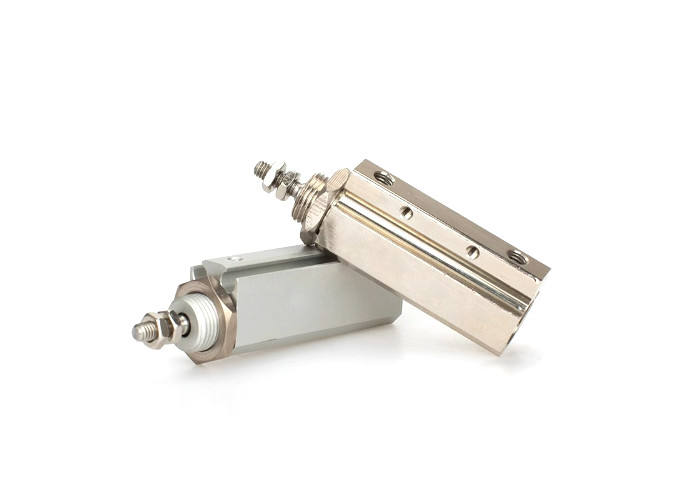

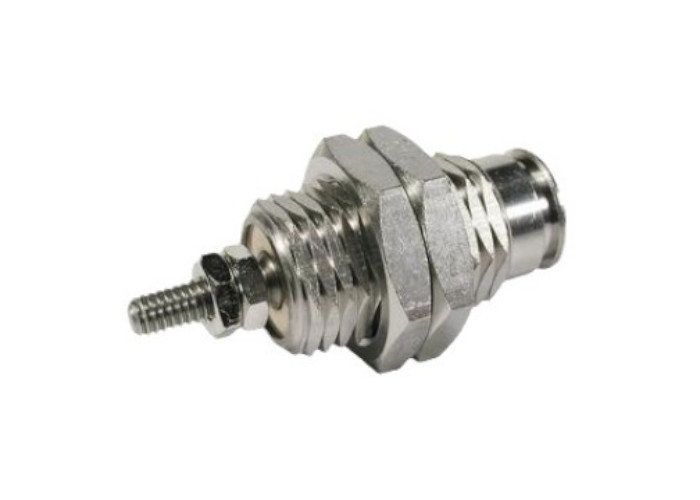

This needle cylinder is a single acting, spring-loaded cylinder with a compact design, suitable for applications with limited space. The product offers multiple cylinder diameter options (ø 4, ø 6, ø 10, ø 16) and can be customized according to industrial needs, including two installation forms: panel mounted and embedded. The cylinder is equipped with a built-in spring, which is used to push the piston rod to automatically reset without external power support.

Technical Parameter:

Applicable scenarios:

Automation equipment: widely used in various automated production lines, such as assembly lines, packaging lines, etc., to achieve precise and fast positioning and driving.

Mechanical system: As an executing element in various types of mechanical equipment, it performs reciprocating linear motion, such as punching machines, cutting machines, etc.

Space limited scenarios: With its compact design, it is particularly suitable for installation environments with limited space, such as precision instruments, small robots, etc.

Product Function:

Automatic reset: The built-in spring automatically pulls the piston rod back to its original position after the cylinder extends, without the need for external energy support.

High precision positioning: By precisely controlling the cylinder stroke, high-precision positioning and repetitive positioning can be achieved.

Durable and reliable: Made of high-quality materials, with good sealing performance, wear resistance and durability, ensuring long-term stable operation.

Easy to install and maintain: Provides multiple installation forms and standard accessories for users to install and maintain according to their actual needs.

Strong adaptability: Different cylinder diameters, strokes, and accessories can be selected according to different application requirements to meet the automation control needs in different scenarios.

Support and Services

• 24/7 customer service support to answer any questions.
• Expert advice on product selection and troubleshooting.
• Detailed product information and training materials.
• Full warranty and repair services.
• Product updates and upgrades.

Packing and Shipping

CJP series needle cylinder/single acting: spring compression type is packaged and shipped in a cardboard box that is designed to keep the product safe and secure during transit. The box has a custom-sized insert to fit the product securely, and is sealed with tape. Inside the box, the product is wrapped in bubble wrap and foam padding to provide additional cushioning and protection. A packing slip and any promotional materials are included in the package.The package is then shipped via a reliable carrier such as UPS or FedEx. Tracking information is provided to the customer to follow the package's progress. Delivery time will vary depending on the chosen shipping method and destination.

The package is then shipped via a reliable carrier such as UPS or FedEx. Tracking information is provided to the customer to follow the package's progress. Delivery time will vary depending on the chosen shipping method and destination.
