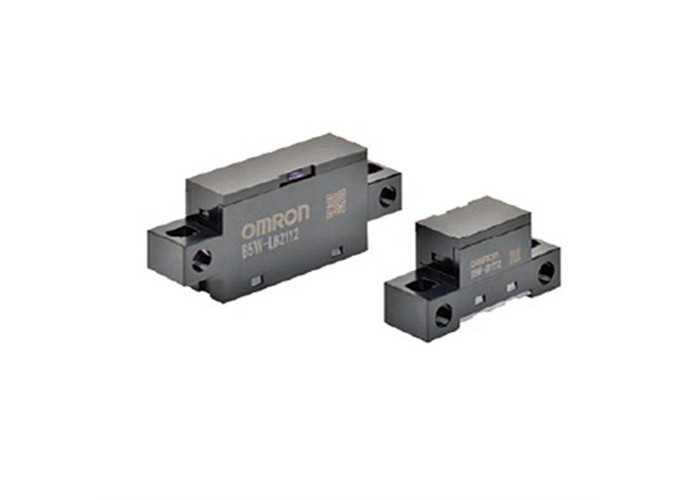

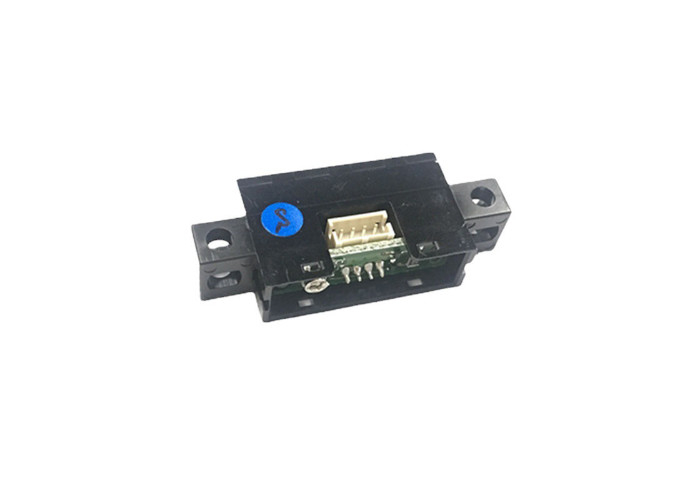

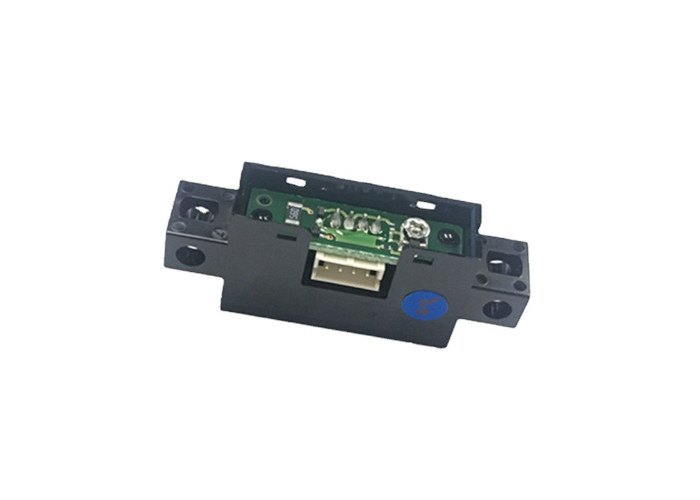

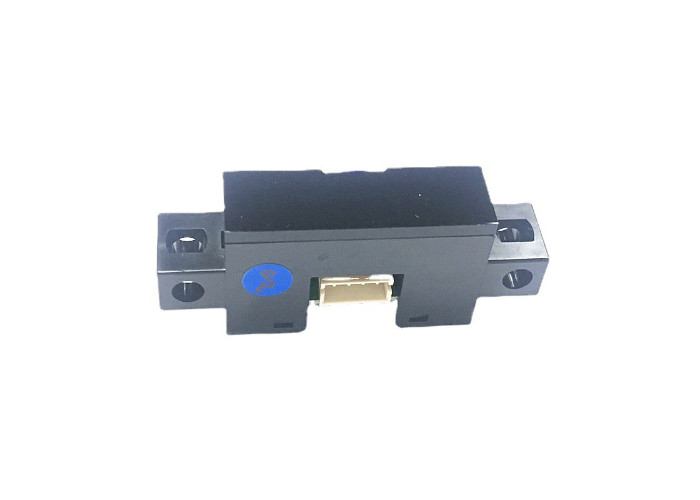

850mm Wavelength Versatile Sensor for Automation Robotics Made of PC/PMMA Material

850mm Wavelength Versatile Sensor for Automation Robotics Made of PC/PMMA Material

  • Highlight

    PC/PMMA Material Versatile Sensor

    ,

    Automation Robotics Versatile Sensor

    ,

    850mm Versatile Sensor

  • Product Types
    Photoelectric Switch
  • Protect The Structure
    IP50
  • Connection Method
    Connector Type
  • Material Quality
    PC/PMMA
  • Working Voltage
    DC24V
  • Detection Distance
    10~55mm
  • Wavelength
    850mm
  • Place of Origin
    Japan
  • Model Number
    B5W
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

850mm Wavelength Versatile Sensor for Automation Robotics Made of PC/PMMA Material

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

This is an outstanding analog output reflective photoelectric sensor. It is specifically designed for stable detection of objects of various colors and materials. Whether it is a highly reflective mirror object, a difficult-to-detect black object, or a transparent object, it can achieve precise detection. It has a wide detection range and can adapt to detection needs in different scenarios. At the same time, it has good tolerance to object displacement. Even if the object undergoes a certain degree of displacement during the detection process, it can still ensure the accuracy and stability of detection. Because of these prominent features, this sensor can provide reliable detection support for the automated operation of production lines in the field of industrial automation, ensuring the efficiency and precision of the production process. In the detection field, it plays an important role and provides strong guarantee for various object detection tasks. Being widely used in these two fields fully demonstrates its powerful functions and adaptability.

Technical Parameter:

Testing method Restricted reflex type
Project     Model NPN output B5W-LB1112-1 B5W-LB1122-1 B5W-LB2112-1 B5W-LB2122-1
Detection distance White paper 2~10mm 10~55mm
Black paper 3~8mm 10~40mm
Non detection distance height (white paper) Above 20mm Above 85mm
Minimum detected object (reference value) φ0.05mm φ0.15mm
wait to be sent Less than 20%
Light source (emission wavelength) Infrared light-emitting diode (850mm)
Supply voltage DC24V ± 10% pulsation (p-p) below 10%
Current consumption Below 5mA (at DC26.4V) Below 20mA (at DC26.4V)
Action mode ON when entering the ligh ON when blocking light ON when entering the ligh ON when blocking light
Control output Load power supply voltage below DC26.4V, load current below 50mA (residual voltage below 0.8V (load current below 50mA), residual voltage below 0.32V (load current below 10mA), open collector output (NPN output)
Indicator light not have
Response time Action and reset: less than 1ms each
Use environmental illumination Light receiving surface illumination incandescent lamp: below 3000lx, sunlight: below 10000lx
Environmental temperature range During operation: -10~+60 ℃, during storage: -25~+80 ℃ (without freezing or condensation)
Vibration (durability) 10~55Hz dual amplitude 1.5mm X, Y, 2 directions 2h
Impact (durability) 500m/s2 X, Y, Z directions 3 times
Protect the structure IEC standard IP50 (excluding terminal section)
Connection method connector type
Weight (body only) About 1.6g About 3.4g
Texture of material Shell Polycarbonate (PC)
Lens section Acrylic tree tire (PMMA)
Cover plate Polycarbonate (PC)

Applicable scenarios:

Industrial automation: used for object detection, position confirmation, etc. on production lines.

Robot navigation: Assist robots in identifying and avoiding obstacles.

Packaging machinery: detects the presence and location of packaging materials or products.

Security detection: Used in security systems that require precise detection of the location or presence of objects.

Product Function:

Stability detection: capable of stably detecting objects of various colors and materials, including difficult to detect mirror, black, and transparent objects.

Wide detection range: Provides a detection distance of 10~55mm to meet the needs of different application scenarios.

Anti interference design: Reduce the impact of external interference on detection results and improve detection accuracy.

Analog output: Provides analog voltage output signals for easy integration and data processing with various control systems.

Resistant to object position deviation: Has good tolerance for object position deviation, improving the stability and reliability of the system.
