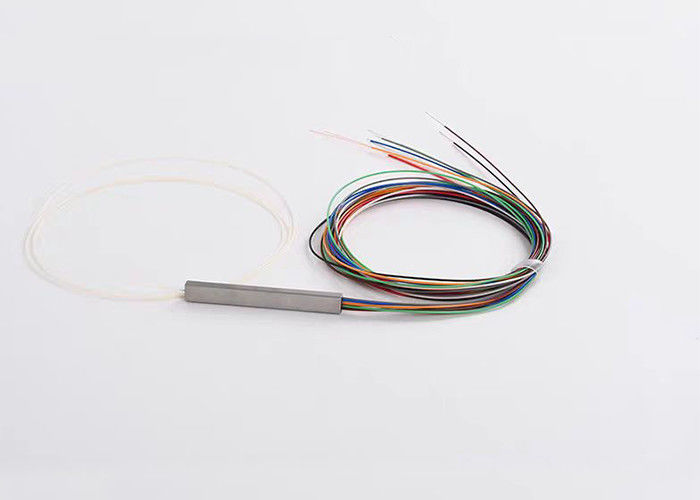

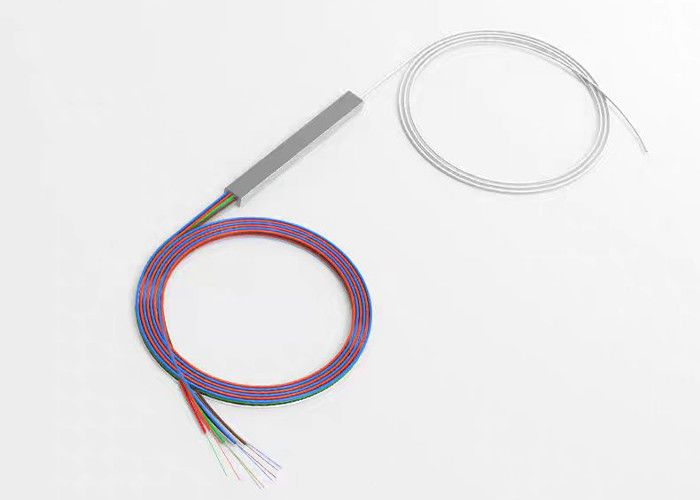

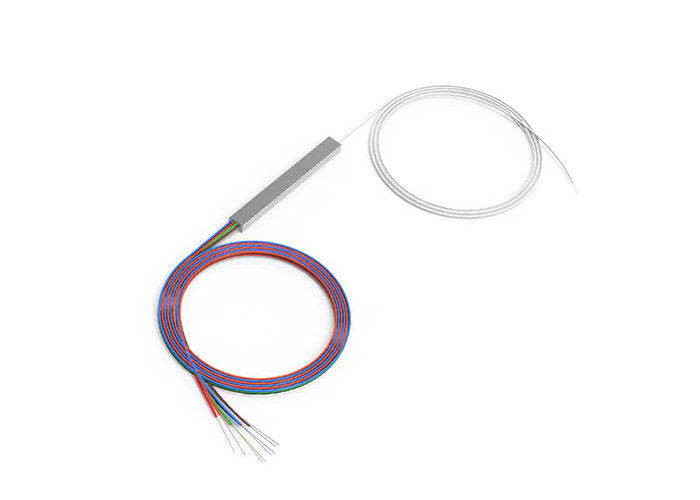

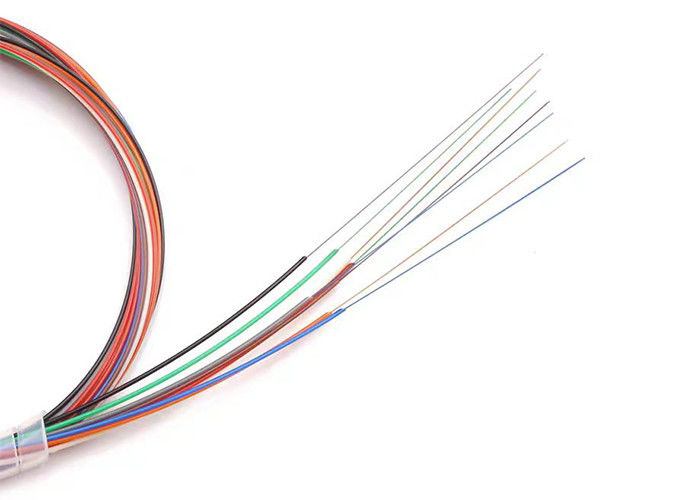

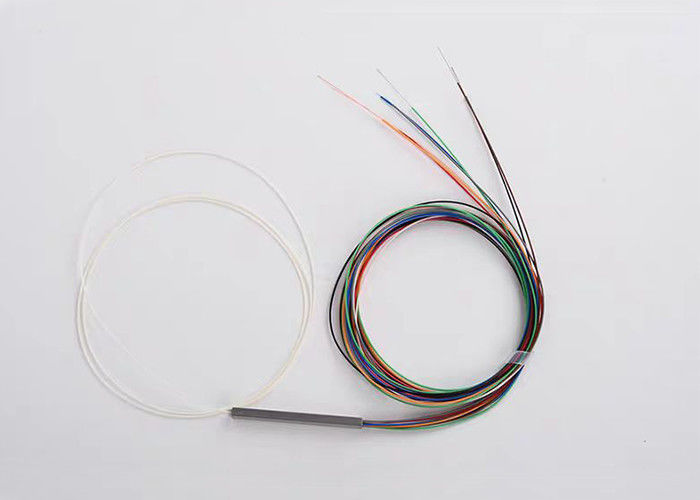

PLC Fiber Optic Splitter Miniature Steel Tube Type 1x2/4/8/16/32/64/128 Splitter Without Head Differential
-
Highlight
PLC Fiber Optic Splitter
,Miniature Steel Tube PLC Splitter
,1x128 Splitter
-
Splitting RatioSupport Various Specifications Such As 1:2, 2:4, 1:8, 1:16, 1:32, 1:64, 1:128, Etc.
-
Insertion LossWith A Low-loss Design, The Specific Value Depends On The Splitting Ratio And The Working Wavelength.
-
Return LossPossess High Return Loss Performance To Ensure The Stability Of Signal Transmission.
-
Fiber TypeSupport Single-mode Fiber And Multi-mode Fiber.
-
Packaging MethodSteel Tube Packaging To Protect The Internal Optical Path From External Interference.
-
Impedance MatchingHave Good Impedance Matching Performance To Reduce Signal Reflection And Loss.
-
ReliabilityWith A High-reliability Design To Ensure Long-term Stable Operation.
-
CompatibilityBe Compatible With Various Optical Fiber Network Equipment, Facilitating System Integration And Upgrade.
-
Place of OriginChina
-
CertificationISO9001
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging
PLC Fiber Optic Splitter Miniature Steel Tube Type 1x2/4/8/16/32/64/128 Splitter Without Head Differential
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:
This product is a PLC optical fiber splitter. It adopts a miniature steel tube design and has various splitting ratios, such as 1:2, 2:4, 1:8, 1:16, 1:32, 1:64, 1:128, etc. It is applicable to optical fiber network equipment such as FTTH (Fiber To The Home). This splitter features high performance, low loss, and good stability, and can meet the requirements of modern communication networks for high-speed and large-capacity data transmission.
Technical Parameter:
| PLC optical fiber splitter, miniature steel tube type splitter, headless differential | ||||||||
| Operating wavelength (nm) | 1260~1650 | |||||||
| Fiber type | Customizable | |||||||
| Splitting Ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | |
| Insertion Loss (dB) (p/s level) | Maximum | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21 | 23.8/24.2 |
| Loss Uniformity (dB) | Maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss (dB) | Maximum | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| Return Loss (dB) | Minimum | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Directivity (dB) | Minimum | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | Maximum | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
| Temperature Stability (-40 to 85°C) (dB) | Maximum | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
| Temperature Stability (-40 to 85°C) (dB) | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | N/A | |
Applicable scenarios:
This product is mainly used in optical fiber network equipment such as FTTH (Fiber To The Home) as a key component for signal distribution and transmission. It can evenly divide one optical signal into multiple optical signals, which can be used by multiple users or devices, thus realizing the efficient and large-capacity data transmission of the optical fiber network.
Product Function:
Signal Distribution: Evenly divide one optical signal into multiple optical signals for use by multiple users or devices.
Optimization of Transmission Performance: Through the design of performance such as low loss and high return loss, ensure the stability and high efficiency of signal transmission.
Strong Adaptability: Support various splitting ratios, working wavelengths, and fiber types to adapt to different application scenarios and requirements.
Protection of Optical Path: Adopt a steel tube packaging design to protect the internal optical path from external interference and damage.
Convenience for System Integration: Be compatible with various optical fiber network equipment, facilitating system integration and upgrade and reducing maintenance costs.
