Product Description:

The linear module is an important product for achieving automation. It is mainly used to achieve linear or curved movement of loads, and is particularly suitable for automation applications with light loads that require high precision and flexible positioning.

The linear module is widely used due to its characteristics of fast single-body movement speed, high repeated positioning accuracy, light body weight, small equipment space occupation, and long service life. In addition, it can also be applied in the mold industry, automotive parts industry, home appliance industry, etc., achieving energy consumption reduction by improving production efficiency and saving labor costs.

Characteristic

• High positioning accuracy, not easy to slip.
• Smooth and low-noise, precise guide rail, smooth track, smooth surface, low friction force.
• Selected materials with a wide range of applications to meet different needs.

Customization

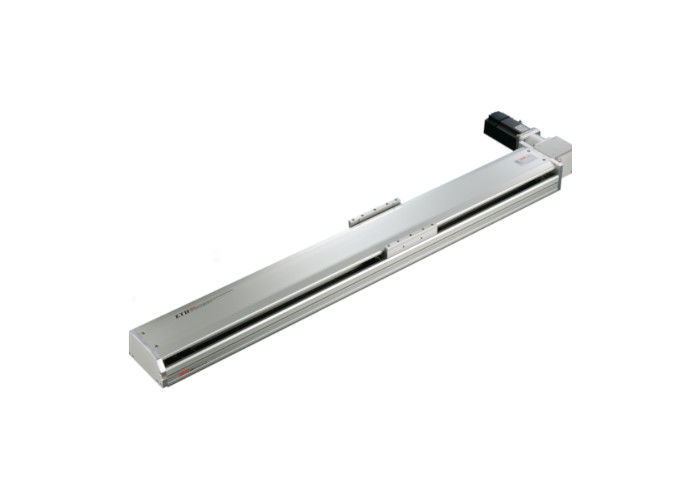

Screw series module (GTH series, ETH series, GTY series, Y series)

The screw drive module can easily meet high-precision usage requirements and operate stably, ensuring the service life and assembly quality of the screw and slide rail.

The repeated positioning accuracy can reach up to ± 0.005mm.

From a small load of 2kg to a large load of 150kg.

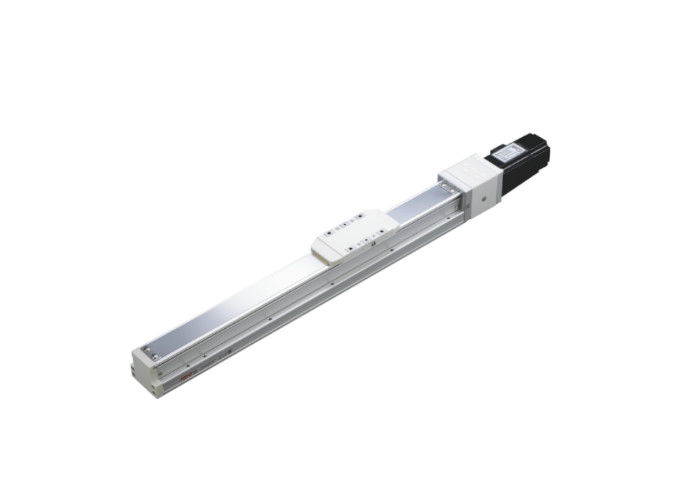

Belt Series Module (ETB Series, M Series)

The belt drive module can easily achieve long stroke usage conditions and achieve applications with a large range of motion.

Adopting an aluminum extrusion structure, it is designed and assembled with slide rails, belts, and pulleys, saving you costs and time during the assembly phase.

The maximum travel can reach 5000mm.

Up to 5000mm/s linear speed, improving the production efficiency of the machine.

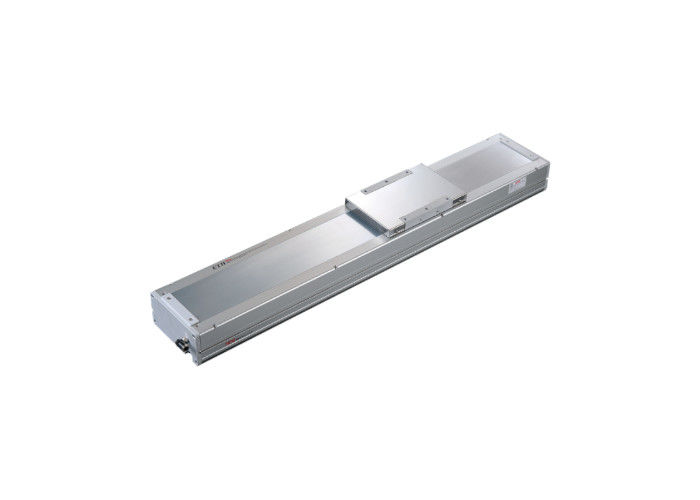

Dust-free series module (ECH series and ECB series)

It can achieve the same action performance as the ETH/ETB series.

The enclosed outer packaging can prevent foreign objects from entering the interior of the body, and a device with an air extraction nozzle can be added to remove the particles generated during the operation of the machine. It has been certified by SGS testing and can be used in a Class 10 environment.

It has high reliability in high-tech semiconductors and food production equipment, and effectively reduces pollution and damage to products.

The main use of the linear module

Mainly used for production automation of work positioning, gripping, handling, and plugins in clean rooms.

Scope of application, SMT device, construction device, testing device, inspection device.
