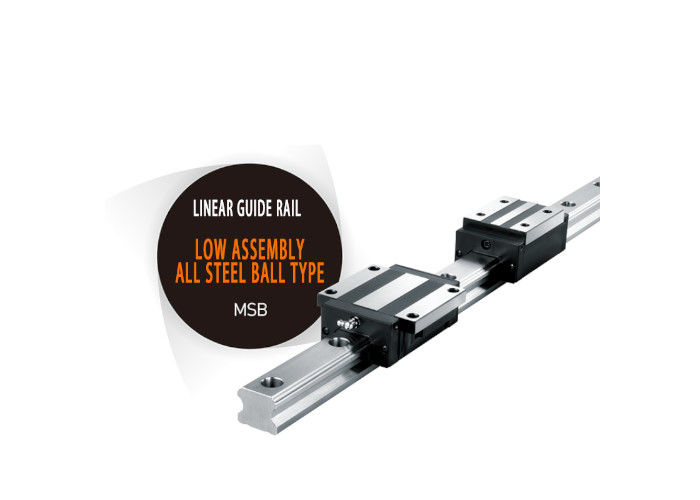

Linear guide MSB series, with automatic centering ability, low noise, and interchangeable features.

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

The MSB series linear guide adopts a unique four-column circular arc contact and 45° contact angle steel ball column design, providing the same rated load capacity in multiple directions. It is suitable for various installation methods of different axes. It has characteristics such as patented lubricating oil circuit design, low assembly, four-way equal load, smooth running with low noise, automatic centering, and interchangeability.

Technical Parameter:

Precision grade of PMI linear guide rail

Applicable scenarios:

It is widely applicable to equipment that requires high precision and high load and needs to be installed on different axes, such as precision machine tools and automated production lines. It performs outstandingly especially in occasions that require low noise, automatic centering, and convenient assembly and maintenance.

Product Function:

Multi-directional load capacity:

Adopting a four-column circular arc contact and 45° contact angle steel ball column design, it provides the same rated load capacity in radial, anti-radial, and transverse directions, and is suitable for various installation methods of axes such as X, Y, and Z.

Enhanced rigidity and low friction resistance:

It can uniformly apply preload while maintaining low friction resistance, enhancing the rigidity in four force directions and meeting the needs of high-precision and high-load motion modes.

Patented lubricating oil circuit:

The patented lubricating oil circuit design can evenly inject lubricating grease into each circulation loop. Regardless of the installation method, it can achieve the best lubrication effect, improve the walking smoothness and service life, and achieve high-precision, high-reliability, and stable linear motion.

Smooth running and low noise:

The simple and smooth design of the steel ball return path, combined with the use of impact-resistant reinforced synthetic resin steel ball circulation accessories, ensures smooth operation and low noise.

Automatic centering ability:

The circular groove design of the front combination (DF combination) endows it with automatic centering ability, which can absorb installation errors and maintain smooth, stable, and high-precision linear motion.

Interchangeability:

Under strict manufacturing precision control, the dimensions are maintained within a stable tolerance range. The slider can be freely assembled on the same type of guide rail, maintaining the same smoothness, preload, and accuracy. Assembly and maintenance are easy.
