Product Selling Point: CVQ Series SMC Thin Valve-Integrated Cylinder - Save Time, Space, & Energy

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

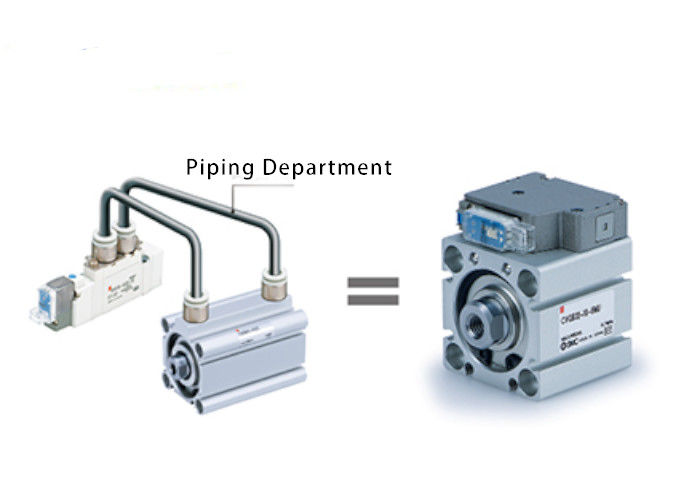

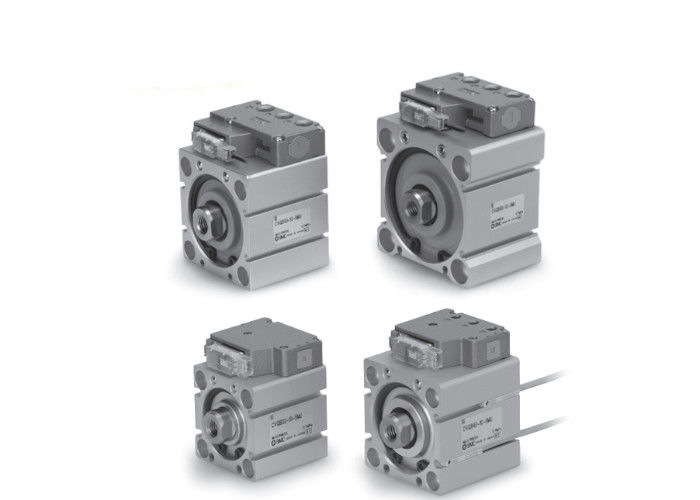

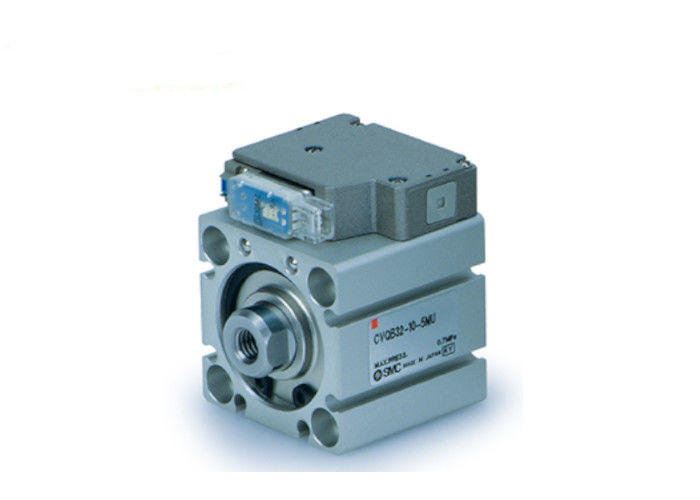

The CVQ series of thin valve cylinders, as a leader in the field of pneumatic automation, ingeniously integrates the valve and thin cylinder design, greatly saving installation space, working hours, and energy costs.

This series of cylinders is made of high-quality SMC materials from Japan, ensuring the stability and durability of the products. Its compact design makes it stand out in many industrial automation applications, especially suitable for occasions with limited space but strict performance requirements.

Technical Parameter:

Applicable scenarios:

The CVQ series of thin valve cylinders is widely used in various industrial automation production lines, including but not limited to:

Positioning, clamping, pushing and other operations in automated equipment.

Drive and control of robotic arms.

Automated production processes in industries such as packaging machinery, printing machinery, and textile machinery.

Pneumatic control applications that require high precision, high speed, and high reliability.

Product Features:

Double acting:

The cylinder can move in two directions (push out and retract) by controlling the pressure changes of the air source.

Buffer design (some models may include it):

Although the document does not explicitly mention that all models have buffering function, double acting cylinders are usually designed with buffering mechanisms to reduce the impact of the piston on the cylinder at the end of the stroke, improve service life and smooth operation.

High flexibility:

By changing the piping direction of the pipe joints on the rod side cylinder head, the flexibility of installation and use is improved, making it suitable for various complex installation environments.

Anti condensation feature:

The specially designed anti condensation tube (IDK series) effectively prevents condensation caused by high-frequency actions, ensuring stable operation of the cylinder.
