Product Description:

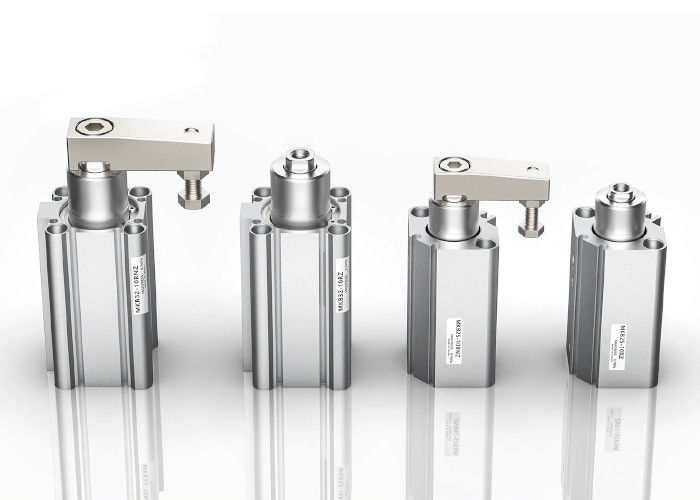

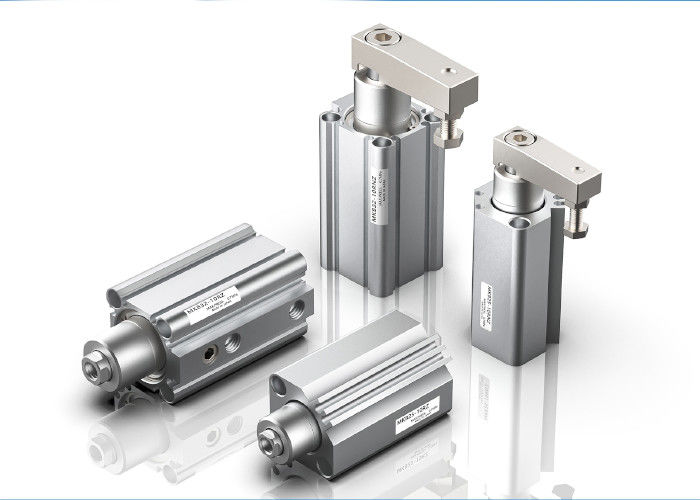

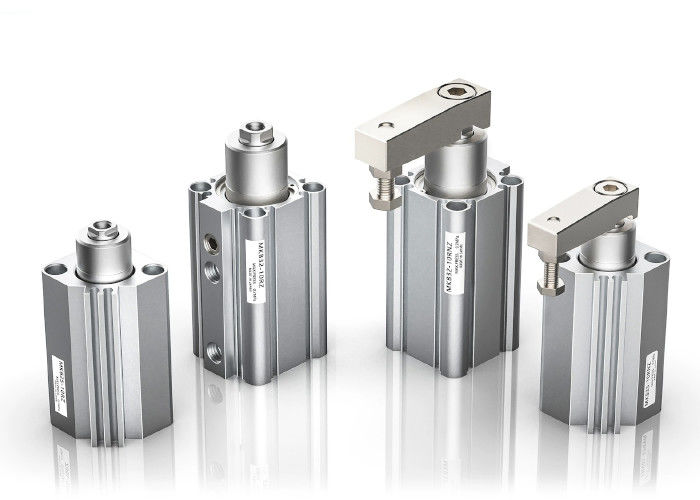

The MK series rotary clamping cylinder is a newly designed cylinder product. Its biggest highlight lies in being able to increase the inertia moment to three times. At the same time, it maintains interchangeability with the installation dimensions of the MK series and MK2 series and achieves full-length compactness. This series of products offers a variety of cylinder bore options (ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63) to meet the needs of different application scenarios. The MK series cylinders have improved performance and reliability through optimized structural design and are widely used in the field of industrial automation.

Technical Parameter:

Applicable scenarios:

The MK series rotary clamping cylinder is widely used in industrial automation applications that require precise clamping and rotating actions due to its high moment of inertia, compact design, and good interchangeability. For example, in robotic arms, automated equipment, production line fixtures, and other aspects, it is used for precise positioning and clamping of workpieces, improving production efficiency and product quality.

Product Features:

High inertia moment:

By optimizing the structural design, the allowable inertia moment of the MK series cylinder has been increased by three times, which can cope with higher load requirements.

Compact design:

Compared with the previous MK series, the MK series cylinders have achieved compactness along the entire length, saving installation space.

Multi directional rotation:

When not clamped, left and right rotation can be achieved, increasing the flexibility and applicability of the cylinder.

High precision positioning:

The clamping part has high precision without rotation, ensuring precise positioning and clamping effect of the workpiece.

Magnetic switch monitoring:

Some models support the installation of magnetic switches, which facilitates real-time monitoring of the cylinder's extension and retraction status, improving the safety and reliability of the equipment.

Easy to maintain:

The key components such as sealing ring components and guide rail pins can be replaced, reducing maintenance costs and extending the service life of the cylinder.
