Compact CUJ Cylinders: Space-Saving Design For Any Application

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

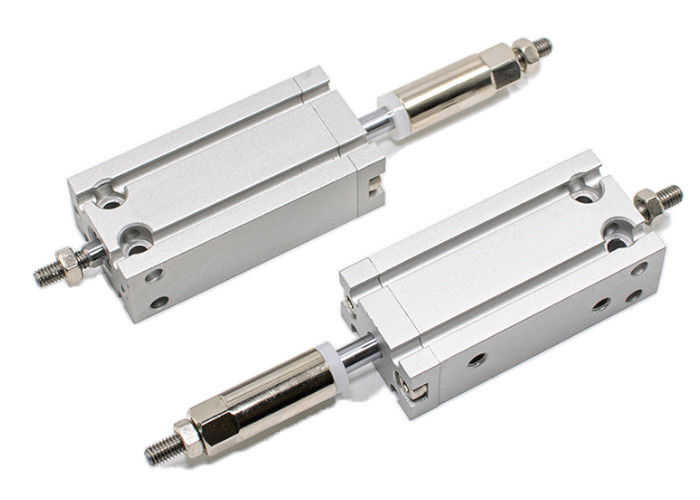

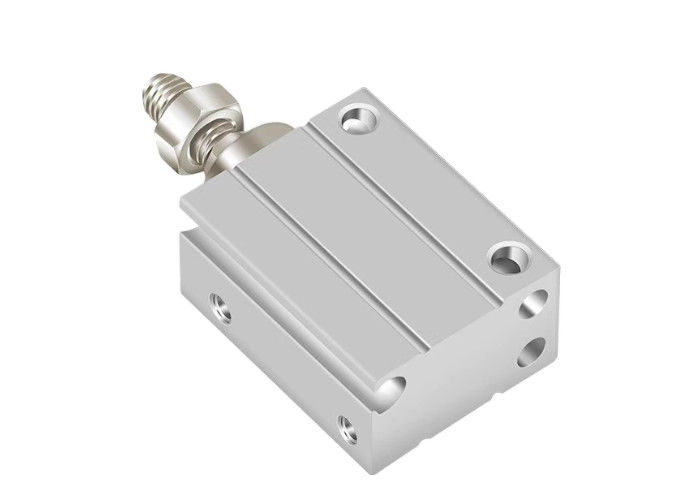

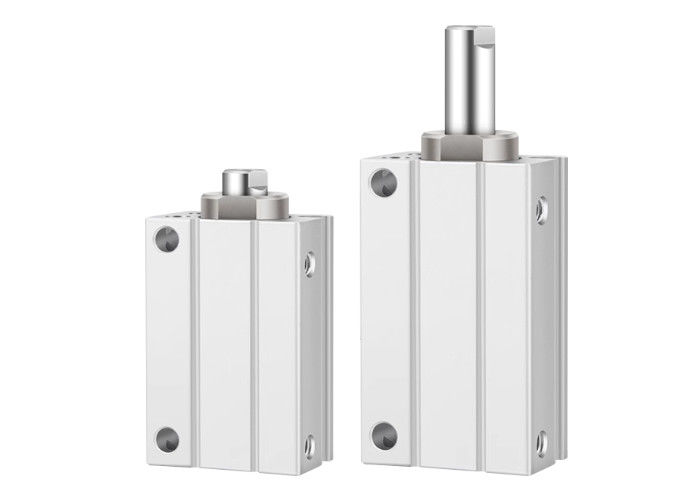

The CUJ series of small free-installation cylinders is an automated pneumatic component specifically designed for compact spaces. This series of cylinders offers a variety of cylinder diameters ranging from ø4 to ø20, suitable for various application scenarios.

The CUJ series cylinders stand out among numerous automated equipment due to their compact design, high space utilization rate, and easy installation characteristics. Through the unique free installation method, users can flexibly configure from four directions, greatly improving the flexibility and efficiency of the device.

Technical Parameter:

Applicable scenarios:

The CUJ series cylinders are widely used in fields such as automation equipment, robots, semiconductor manufacturing, medical devices, packaging machinery, etc. Its compact design and high flexibility make this series of cylinders the preferred choice for various precision control equipment. Whether it is precise positioning on the production line or flexible movement of robot arms, the CUJ series cylinders can provide stable and reliable power support.

Product Features:

High space utilization rate:

The CUJ series cylinders adopt a miniaturized design, and compared to traditional cylinders, their total length can be reduced by up to about 64%, and their volume can be reduced by up to about 70%. This enables the installation of more cylinders in a limited space, improving the overall efficiency of the equipment.

Free installation design:

The cylinder can be installed from four directions without specific directional restrictions, greatly improving the flexibility and ease of installation of the equipment.

Magnetic switch integration:

The integrated contactless magnetic switch can monitor the motion status of the cylinder in real time and provide accurate feedback signals for the control system. Users can choose the model and quantity of magnetic switches according to their needs to achieve more complex control logic.

Easy replacement of seals:

The sealing replacement process of CUJ series cylinders is simple and fast, without the need to disassemble the entire cylinder, effectively reducing maintenance costs and downtime.

Corresponding cleanroom:

The clean series cylinders comply with RoHS standards and are suitable for environments with high cleanliness requirements, such as semiconductor manufacturing workshops.
