Pneumatic Element Scf Series Valve Type Pull Cylinder One On One Control, High Performance And Reliability

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

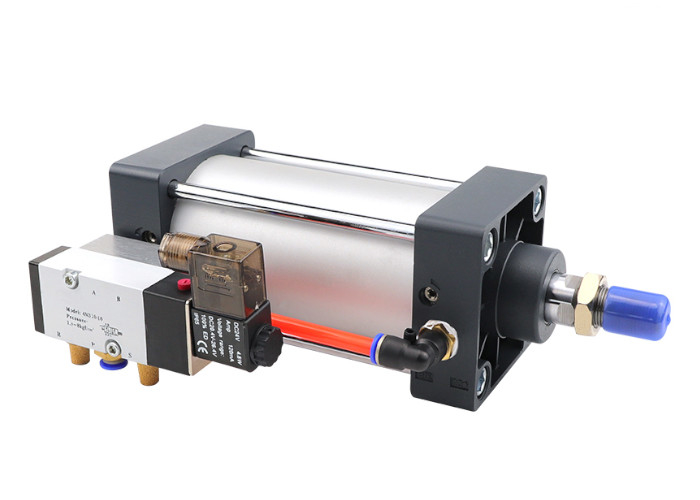

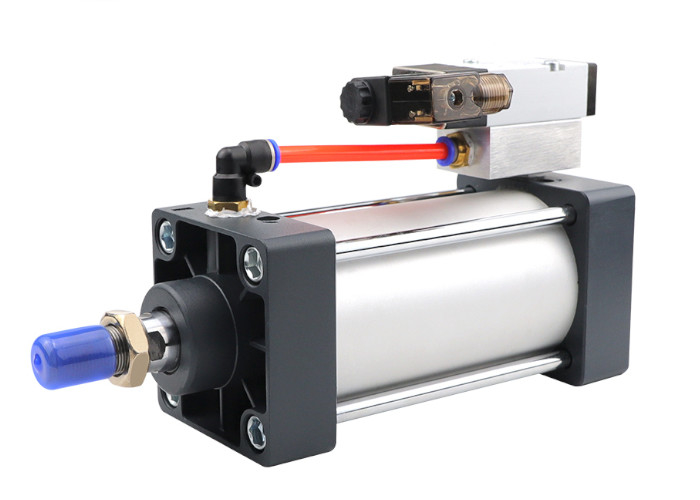

The SCF series valve type cylinder is a derivative product that integrates cylinders and control valves, designed specifically to simplify the configuration and installation of automation systems. This series of cylinders is tightly integrated with control valves through an integrated design, which not only reduces installation steps and required space, but also improves the overall efficiency of the system.

The SCF series offers a variety of cylinder diameters and stroke options to meet the needs of pushing, pulling, lifting, and other actions in different application scenarios. The piston sealing structure adopts advanced Y-shaped one-way sealing, ensuring the long life and low starting pressure of the cylinder. In addition, this series of cylinders also have characteristics such as high temperature resistance and corrosion resistance, making them suitable for various harsh working environments.

The product details cannot be displayed one by one. The product is suitable for the automation industry and can be customized. Please consult customer service for details.

Technical Parameter:

Applicable scenarios:

Production line automation:

On various production lines, SCF series cylinders are often used to achieve automated handling, assembly, positioning of materials, as well as clamping and releasing of workpieces. Its integrated design enables the cylinder and control valve to quickly respond to the control signals of the production line, ensuring the smooth progress of the production process.

Packaging Machinery:

In the packaging industry, SCF series cylinders can be used to drive various actions of packaging machines, such as opening and closing boxes, pressing seals, and pasting labels. Its precise travel control and reliable performance ensure the stability of packaging quality and the improvement of production efficiency.

Injection molding machine and stamping machine:

During injection molding and stamping processes, SCF series cylinders can be used for opening and closing molds, driving ejection mechanisms, etc. Its high load-bearing capacity and fast response characteristics enable the cylinder to accurately perform these key actions, improving production efficiency and product accuracy.

Automated warehousing and logistics:

In the fields of warehousing and logistics, the SCF series cylinders can be used to drive automated sorting systems, stackers, conveyor belts, and other equipment. Its compact structure and flexible installation method enable the cylinder to adapt to various complex storage environments, achieving fast and accurate handling of goods.

Special industrial environment:

In special industrial environments with high temperature, high humidity, and strong corrosiveness, the SCF series cylinders can work stably and reliably due to their high-temperature resistant and corrosion-resistant materials and structural design. This makes the application of cylinders of great significance in industries such as chemical, metallurgical, and food processing.

Robots and Automation Equipment:

In the manufacturing of robots and automation equipment, SCF series cylinders can be used as actuators to achieve various complex actions and motion trajectories. Its precise control and reliable performance provide strong guarantees for the stable operation of robots and automation equipment.

Product Function:

Direct control:

The integrated design of SCF series cylinders and valves allows each cylinder to be directly controlled by its corresponding control valve, without the need for additional installation of separate control valves. This one-on-one control method simplifies the system configuration and improves the accuracy and efficiency of control.

Quick response:

Due to the direct integration of the control valve onto the cylinder, the signal transmission path and time are reduced, allowing the cylinder to respond more quickly to control signals and achieve rapid action.

Compact design:

The SCF series cylinders are tightly integrated with control valves through an integrated design, reducing the overall space occupied. This compact design makes it easier to install and layout the cylinder within a limited space.

Simplified installation steps:

Since there is no need to install control valves separately, the installation steps are simplified and installation time is saved. Meanwhile, a variety of installation accessories with different specifications are available for selection, making the installation process more convenient and efficient.

Stable operation:

The SCF series cylinders use high-quality materials and advanced manufacturing processes to ensure stable operation and long lifespan of the cylinders. The piston sealing structure adopts a Y-shaped one-way seal with compensation function, which can reduce leakage and improve sealing performance.

High load-bearing capacity:

This series of cylinders has a high load-bearing capacity and can be applied to various heavy-duty working conditions. Meanwhile, its precise stroke control and reliable performance ensure the stability and reliability of the cylinder in various working environments.

Multiple cylinder diameters and strokes:

The SCF series cylinders offer a variety of cylinder diameters and stroke options to meet the needs of different application scenarios. Users can choose the appropriate cylinder specifications based on their actual needs to achieve optimal performance and economy.

Compatible with multiple valve models:

Cylinders with different diameters are compatible with different valve models (such as 4M210 and 4M310), providing users with more choices and enabling cylinders to better adapt to different control systems and application scenarios.
