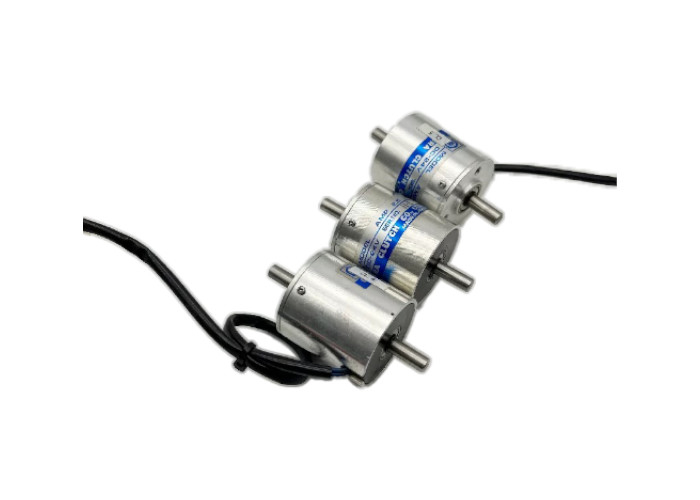

The AM series miniature electromagnetic clutch/brake is designed specifically for compact and lightweight design. This series of products performs well in many application scenarios due to their miniaturization, lightweight, and high torque output characteristics. The installation direction is free and easy to install, and the magnetic yoke is supported by bearings, making the installation process simple and fast.
Technical Parameter:

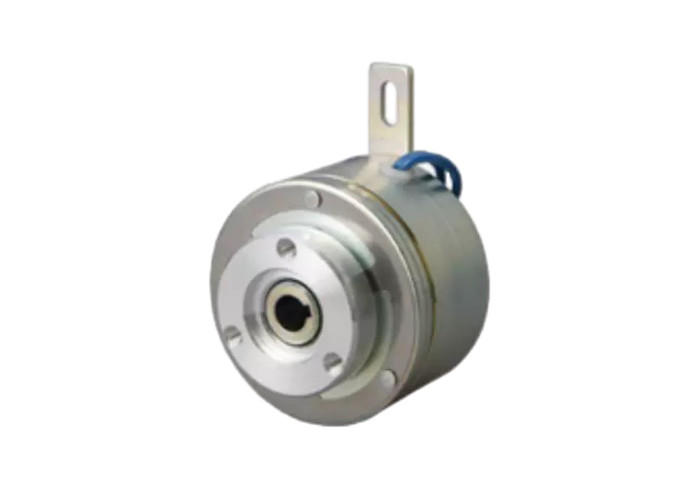

AMC micro electromagnetic clutch [bearing type]
Type 2.5, Type 5, Type 10, Type 20, Type 40, Type 80
Torque: 0.25 - 8 N·m.
| Model | AMC | 2.5 | 5 | 10 | 20 | 40 | 80 | |
| Static friction torque | [N·m] | 0.25 | 0.5 | 1 | 2 | 4 | 8 | |
| Inertia | J×10-4[kg·m2] | Rotor side | 0.048 | 0.075 | 0.145 | 0.290 | 0.715 | 1.26 |
| Armature side | 0.040 | 0.060 | 0.128 | 0.260 | 0.618 | 1.22 | ||
| Aperture | dH7 | 6 | 6 | 8 | 10 | 12 | 15 | |
| Keyway | bE9×t+0.1 | 2×6.9 | 2×6.9 | 2.5×8.9 | 4×11.5 | 4×13.5 | 5×17 | |
| Circumferential direction | A | 35 | 40 | 46 | 51 | 61 | 70 | |
| B | 26.5 | 26.5 | 35 | 44 | 49 | 54 | ||
| C | 22 | 22 | 30 | 38 | 42 | 46 | ||
| DH8 | 15 | 15 | 22 | 26 | 28 | 32 | ||
| E | M3 | M3 | M3 | M4 | M4 | M4 | ||
| F | 28.5 | 28.5 | 36 | 38 | 41.5 | 41.5 | ||
| G | 6.5 | 6.5 | 7 | 7 | 8.5 | 8.5 | ||
| H | 8 | 8 | 10 | 10 | 12 | 12 | ||
| J | 3.2 | 3.2 | 4.2 | 4.2 | 5.2 | 5.2 | ||
| K | 7.5 | 7.5 | 9.5 | 9.5 | 11.2 | 11.2 | ||
| Axial direction | L | 32.6 | 32.6 | 40.9 | 45.1 | 52 | 54 | |
| M | 19 | 19 | 22.3 | 24.5 | 31 | 31 | ||
| N | 2 | 2 | 2.5 | 3 | 3 | 3 | ||
| P | 10 | 10 | 14 | 16 | 16 | 18 | ||
| Q | 1.6 | 1.6 | 2.1 | 1.6 | 2 | 2 | ||
| R | 22.4 | 22.4 | 28.1 | 30.6 | 35 | 36 | ||
| S | 0.2 | 0.2 | 0.25 | 0.25 | 0.3 | 0.3 | ||
| T | 7.3 | 7.3 | 9.8 | 9.45 | 12.2 | 12.1 | ||
| U | 1.6 | 1.6 | 1.6 | 1.6 | 2 | 2 | ||
| Suitable for armature hub bearing | 696ZZ | 696ZZ | 608ZZ | 6000ZZ | 6001ZZ | 6002ZZ | ||
| Mass [g] | 140 | 185 | 300 | 410 | 725 | 1050 | ||
AMB micro electromagnetic brake
Type 25, Type 5, Type 10, Type 20, Type 40, Type 80.
Torque: 0.25 - 8 N·m.

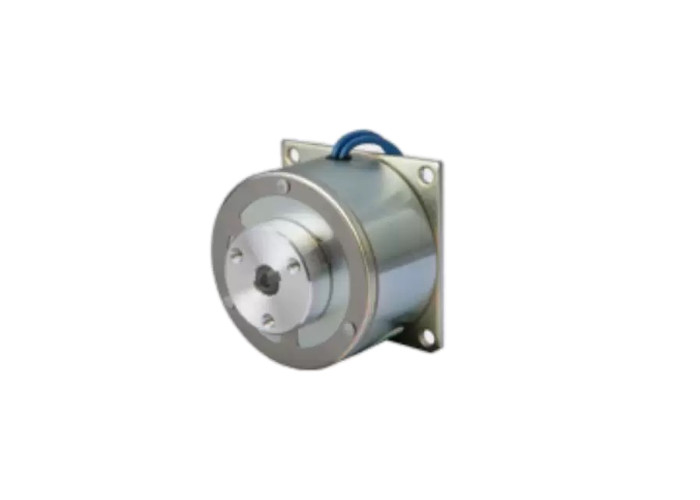

| Model | AMB | 2.5 | 5 | 10 | 20 | 40 | 80 | |
| Static friction torque | [N·m] | 0.25 | 0.5 | 1 | 2 | 4 | 8 | |
| Inertia | J×10-4[kg·m2] | 0.035 | 0.055 | 0.103 | 0.193 | 0.495 | 1.05 | |
| Aperture | dH8 | 6 | 6 | 8 | 10 | 12 | 15 | |
| Keyway | bE9×t+0.1 | 2×6.9 | 2×6.9 | 2.5×8.9 | 4×11.5 | 4×13.5 | 5×17 | |
| Circumferential direction | A | 35 | 40 | 46 | 51 | 61 | 70 | |
| B | 22 | 22 | 26 | 31 | 36 | 40 | ||
| C | 42 | 48 | 56 | 63 | 74 | 84 | ||
| DH7 | 15 | 15 | 22 | 26 | 28 | 32 | ||
| E | M3 | M3 | M4 | M4 | M5 | M5 | ||
| F | 35 | 40.2 | 46.2 | 53 | 61 | 70.2 | ||
| H | 3.3 | 3.3 | 4.5 | 4.5 | 5.3 | 5.3 | ||
| J | 15.7 | 15.7 | 23 | 27.2 | 29.4 | 33.7 | ||
| Axial direction | L | 31 | 31 | 39.8 | 44.3 | 50.5 | 53.5 | |
| M | 3.5 | 3.5 | 3.5 | 4.2 | 4.2 | 4.2 | ||
| N | 1.15 | 1.15 | 1.15 | 1.35 | 1.35 | 1.35 | ||
| Q | 1.4 | 1.4 | 1.4 | 1.4 | 1.9 | 1.9 | ||
| R | 21.8 | 21.8 | 27.55 | 30.05 | 34.5 | 35.5 | ||
| S | 0.15~0.25 | 0.15~0.25 | 0.2~0.3 | 0.2~0.3 | 0.25~0.35 | 0.25~0.35 | ||
| T | 9 | 9 | 12 | 14 | 15.7 | 17.7 | ||
| U | 3 | 3 | 4 | 5 | 5 | 5 | ||
| Mass [g] | 125 | 170 | 255 | 370 | 600 | 850 | ||

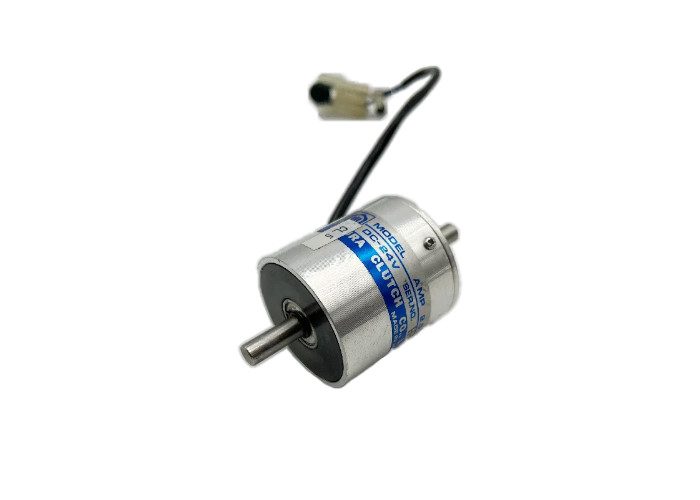

AMP micro electromagnetic clutch device
Type 2.5, Type 5, Type 10, Type 20
Torque: 0.25 - 2 N·m
| Model | AMP | 2.5 | 5 | 10 | 20 | |
| Static friction torque | [N·m] | 0.25 | 0.5 | 1 | 2 | |
| Inertia | J×10-4[kg·m2] | Rotor side | 0.053 | 0.110 | 0.203 | 0.413 |
| Armature side | 0.033 | 0.055 | 0.090 | 0.185 | ||
| shaft diameter | dH7 | 6 | 6 | 8 | 10 | |
| Circumferential direction | A | 38.5 | 44.5 | 51.5 | 56.5 | |
| Bh8 | 18 | 18 | 26 | 32 | ||
| C | 28 | 30 | 40 | 43 | ||
| D | M4 | M4 | M4 | M5 | ||
| E | 6 | 6 | 6 | 8 | ||
| Axial direction | L | 74 | 76 | 95 | 109 | |
| M | 40 | 42 | 52 | 60 | ||
| N | 16 | 16 | 20 | 23 | ||
| P | 2 | 2 | 3 | 3 | ||
| Mass[g] | 200 | 280 | 465 | 650 | ||

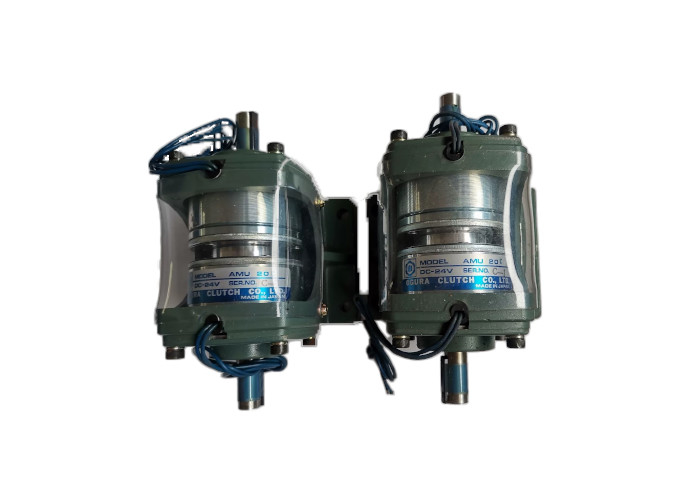

AMU-C micro electromagnetic clutch/brake assembly [with protective cover]
Type 2.5, Type 5, Type 10, Type 20, Type 40, Type 80.
Torque: 0.25 - 8 N·m.
| Model | AMU | 2.5C | 5C | 10C | 20C | 40C | 80C | |
| Static friction torque | [N·m] | 0.25 | 0.5 | 1 | 2 | 4 | 8 | |
| Inertia | J×10-4[kg·m2] | Rotor side | 0.050 | 0.068 | 0.148 | 0.290 | 0.718 | 1.30 |
| Armature side | 0.063 | 0.113 | 0.208 | 0.390 | 1.04 | 2.19 | ||
| shaft diameter | dH7 | 6 | 6 | 8 | 10 | 12 | 15 | |
| keyway | bh8×t-0.15 | 2×6.9 | 2×6.9 | 2.5×8.9 | 4×11.5 | 4×13.5 | 5×17 | |
| Circumferential direction | A | 54.5 | 61.5 | 69 | 77 | 93 | 105 | |
| B | 66 | 72 | 84 | 90 | 106 | 120 | ||
| C | 56 | 62 | 70 | 78 | 90 | 100 | ||
| D | 31.5 | 35.5 | 40 | 45 | 56 | 63 | ||
| E | 6 | 7 | 9 | 10 | 11 | 12 | ||
| F | 5.5 | 5.5 | 6.5 | 6.5 | 8.5 | 8.5 | ||
| Axial direction | L | 100 | 100 | 124 | 139 | 166 | 174 | |
| M | 50 | 50 | 62 | 69 | 80 | 86 | ||
| N | 40 | 40 | 45 | 50 | 60 | 70 | ||
| P | 30 | 30 | 39.5 | 44.5 | 53 | 52 | ||
| Q | 9 | 9 | 11 | 12 | 13 | 14 | ||
| R | 16 | 16 | 20 | 23 | 30 | 30 | ||
| T | 14 | 14 | 18 | 20 | 20 | 25 | ||
| Mass[g] | 400 | 545 | 890 | 1500 | 2080 | 2870 | ||
Performance table [operating characteristics]
Type AM.Type 2.5, Type 5, Type 10, Type 20, Type 40, Type 80.
| Model | Static friction torque (N · m) | Coil (20 ℃) | Magnet attraction time (ms) | Torque rise time (ms) | Release time of armature (ms) | ||||
| Voltage [DC-V) | Current (A) | Resistance (Ω) | Power capacity (W) | Time constant (ms) | |||||
| AMC2.5 | 0.25 | 24 | 0.13 | 192 | 3 | 5 | 11 | 15 | 16 |
| AMB2.5 | 4 | 10 | 15 | ||||||
| AMC 5 | 0.5 | 0.17 | 144 | 4 | 8 | 12 | 17 | 20 | |
| AMB 5 | 7 | 13 | 20 | ||||||
| AMC 10 | 1 | 0.25 | 96 | 6 | 11 | 18 | 27 | 25 | |
| AMB 10 | 10 | 17 | 25 | ||||||
| AMC 20 | 2 | 0.26 | 94 | 6.1 | 13 | 20 | 35 | 25 | |
| AMB 20 | 11 | 21 | 26 | ||||||
| AMC 40 | 4 | 0.38 | 64 | 9 | 26 | 35 | 55 | 45 | |
| AMB 40 | 19 | 32 | 40 | ||||||
| AMC 80 | 8 | 0.48 | 50 | 11.5 | 33 | 39 | 60 | 48 | |
| AMB 80 | 24 | 37 | 52 | ||||||
Performance table [workload].
Type AM.Type 2.5, Type 5, Type 10, Type 20, Type 40, Type 80.
|
Model AMC·AMB |
Maximum adjustable clearance [mm]. | Maximum adjustable total workload [J] | Maximum total workload [J]. | Permissible rotational speed [r/min]. |
| 2.5 | 0.4 | 2.8 | 8.7 | 3600 |
| 5 | 0.45 | 4.5 | 1.4 | |
| 10 | 0.55 | 7.5 | 2.3 | |
| 20 | 0.6 | 1.2 | 3.8 | |
| 40 | 0.7 | 1.8 | 5.8 | |
| 80 | 0.7 | 2.7 | 8.5 |
Applicable scenarios:
The AM series products are widely used in situations that require precise control and fast start stop due to their high precision, fast response, and no reverse clearance design. For example, in the fields of automation equipment, robots, medical instruments, textile machinery, office equipment, etc., the presence of AM series products can be seen. They are responsible for transmitting power, achieving fast start stop, and ensuring position accuracy in these applications.
Product Function:
High sensitivity action: capable of quickly generating and releasing torque, achieving precise action control.
No reverse clearance: Adopting a spring plate drive mode, there is no reverse clearance in the rotation direction, and the rotation is smooth with low noise.
Strong heat dissipation: With excellent heat dissipation capability, it ensures long-term stable operation without affecting performance.
Good durability: High quality materials and process design ensure the long-term service life of the product.
Easy installation: The installation direction is free, and the clutch yoke is supported by bearings, making the installation process simple and fast.
