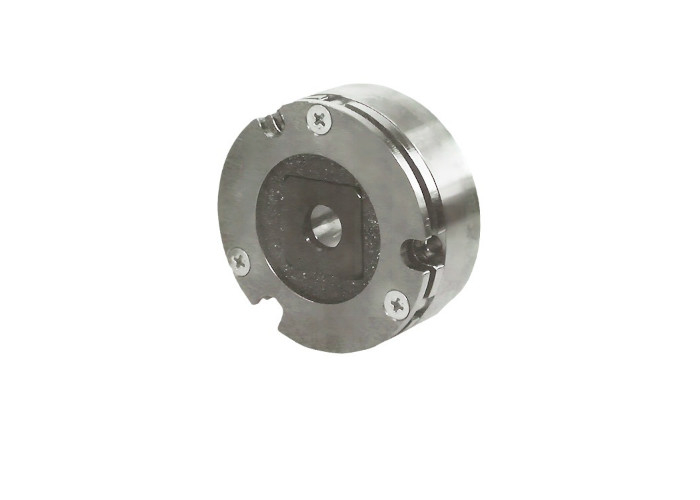

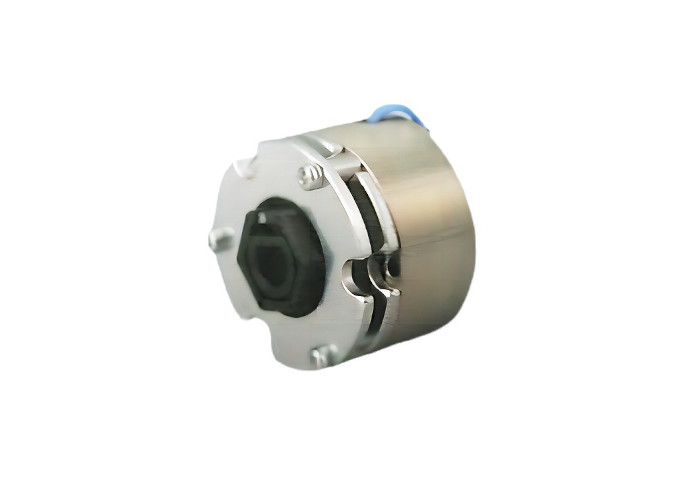

Enhanced MCNB Molddisc Series
,3.8N・m Molddisc Series
-
Torque Range0.38~3.8N・m
-
Electrical ParametersDC 24V
-
Allowable Number Of Rotations6000r/min
-
Moment Of InertiaLow Inertia
-
Place of OriginJapan
-
Model NumberMCNB Molddisc series
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging
Torque Range 0.38-3.8N・m Enhanced MCNB Molddisc Series for Small Non-Excited Action Brake
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:
The MCNB Molddisc series small non excited action brake is a high-performance product with wide application prospects in servo motors and robots due to its high torque, durability, low inertia torque, and flexible customization. Through precise electrical parameters and optimized mechanical design, this brake can provide stable and reliable braking control, meeting the high requirements for braking performance in the field of industrial automation.
Technical Parameter:
Dimension table
| Model | MCNB | 3 | 15 | 40 | |
| static friction torque | 〔N・m〕 | 0.38 | 1.52 | 3.8 | |
| inertia | J×10−4〔kg・m2〕 | 0.02 | 0.018 | 0.075 | |
| hole diameter | dh7 | 8 | 10 | 12 | |
| circumferential direction | A | 35 | 52 | 68 | |
| B±0.2 | 29 | 46 | 60 | ||
| C-0.1 | 35 | 52 | 68 | ||
| E | 9 | 12 | 18 | ||
| F | 3.4 | 3.4 | 4.5 | ||
| G | 7 | 8 | 8 | ||
| H | 12 | 19 | 25 | ||
| axial direction | L | 28.2 | 24.5 | 27.5 | |
| M | 27.7 | 24 | 27 | ||
| N | 20.7 | 16 | 17.6 | ||
| P±0.2 | 23.9 | 19.8 | 21.4 | ||
| Q | 3.5 | 4 | 4 | ||
| R | 6 | 6.5 | 7 | ||
| S[initial average clearance] | 0.06~0.13 | 0.07~0.15 | 0.08~0.15 | ||
| mass [kg] | 0.15 | 0.3 | 0.6 | ||
Performance table
|
Model |
Torque specification (N · m) | Coil (20 ℃) | Magnet attraction time (ms) | Release time of armature (ms) | Allowable number of rotations(r/min) | |||
| Voltage DC (V) | Current DC (A) | Resistance (Ω) | Power capacity (W) | |||||
| 3 | 0.38 | 24 | 0.25 | 94.4 | 6.1 | 40 | 10 | 6000 |
| 15 | 1.52 | 24 | 0.30 | 78.9 | 7.3 | 50 | 20 | 6000 |
| 40 | 3.8 | 24 | 0.35 | 67.8 | 8.5 | 70 | 20 | 6000 |
Applicable scenarios:
Suitable for motors: Widely applicable to servo motors ranging in size from Φ 40 to Φ 80, meeting the demand for precise braking control in the field of industrial automation.
Robot applications: also applicable to the field of robotics, providing stable and reliable braking solutions.
Product Function:
Braking function: Through electromagnetic principles, fast and reliable braking control is achieved to ensure the safety and stability of equipment operation.
Low noise and low vibration: The optimized design reduces noise and vibration during operation, enhancing the overall user experience.
Personalized customization: We can provide customized services based on customer needs, including special shapes (such as adding wire trays) and performance, to meet specific requirements in different scenarios.
High efficiency: The friction material with high friction coefficient ensures the high efficiency of the brake and extends the service life of the product.
