100V/200V AC Input Brakes
,Single-phase full wave Rectification Brakes
,RNB-N Brakes
-
Torque Range2～200N·m
-
VoltageDC24V/DC90V
-
Rectification MethodSingle-phase Full Wave
-
Frequency50/60Hz
-
AC Input Voltage100V/200V
-
DC Output24V/90V
-
Place of OriginJapan
-
Brand NameOGURA
-
Model NumberRNB-N Series
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging
Single-phase full wave Rectification Powered RNB-N Brakes for 100V/200V AC Input
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:

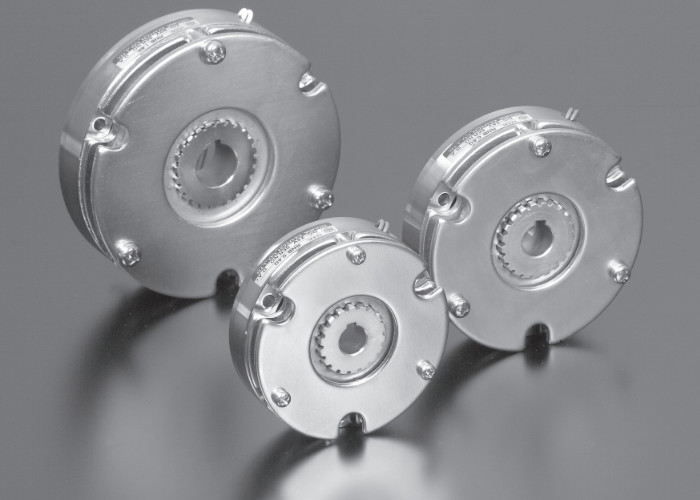

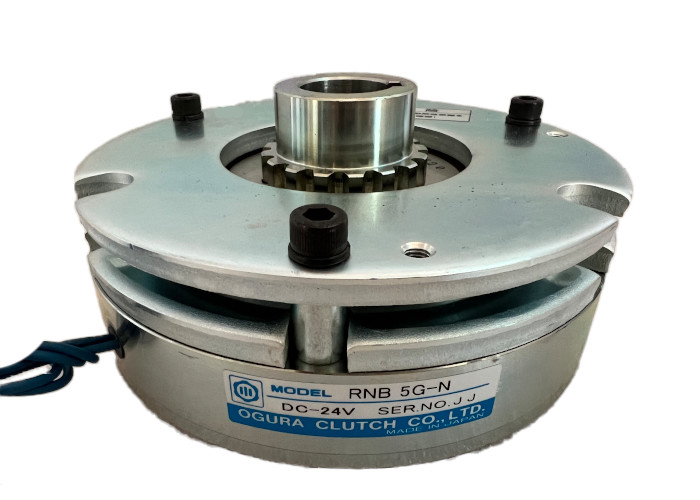

The RNB-N series non excited actuation brake is a high-performance and compact braking product with features such as fast braking, high torque, and manual release. It is widely used in various industrial scenarios that require holding and emergency stopping. Its detailed parameter specifications and installation instructions provide users with comprehensive and reliable technical support.
Technical Parameter:
RNB-N non-excited operating brake [for holding]
0.2 type, 0.4 type, 0.8 type, 1.6 type
Torque: 2 - 16 N·m
| Model | RNB-N | 0.2G | 0.2K | 0.4G | 0.4K | 0.8G | 0.8K | 1.6G | 1.6K | |
| Voltage specification DC (V) | 24 | 90 | 24 | 90 | 24 | 90 | 24 | 90 | ||
| Static friction torque | 〔N・m〕 | 2 | 4 | 8 | 16 | |||||
| Inertia | J×10−4〔kg・m2〕 | 0.215 | 0.360 | 0.782 | 2.93 | |||||
| Bore diameter | dH7 | 12 | 12 | 14 | 19 | |||||
| Keyway | bE9×t ＋0.15 | 4×13.5 | 4×13.5 | 5×16 | 5×21 | |||||
| Circumferential direction | A | 77 | 85 | 97 | 117 | |||||
| B | 68 | 74 | 85 | 108 | ||||||
| Ch9 | 77 | 85 | 97 | 117 | ||||||
| D | 3 | 4 | 4 | 4 | ||||||
| E | 20 | 20 | 25 | 40 | ||||||
| F | 4.5 | 5.5 | 5.5 | 5.5 | ||||||
| G | 10 | 11 | 11 | 11 | ||||||
| H | - | - | - | - | ||||||
| Axial direction | L | 30 | 32 | 35 | 41 | |||||
| M | 25.5 | 27.5 | 29.5 | 34.5 | ||||||
| N | 15 | 16 | 17 | 19.5 | ||||||
| P | 18 | 16 | 14 | 15 | ||||||
| Q | 8 | 12 | 16 | 20 | ||||||
| R | 7 | 7.5 | 8.5 | 8.5 | ||||||
| S(through to stop) | 0.15~0.3 | 0.15~0.3 | 0.15~0.3 | 0.15~0.3 | ||||||
| Mass (kg) | 0.6 | 0.85 | 1.2 | 1.9 | ||||||
RNB-N non-excited operating brake [for holding]
3 type, 5 type, 10 type, 20 type
Torque: 30 - 200 N·m
| Model | RNB-N | 3G | 3K | 5G | 5K | 10G | 10K | 20G | 20K | |
| Voltage specification DC (V) | 24 | 90 | 24 | 90 | 24 | 90 | 24 | 90 | ||
| Static friction torque | 〔N・m〕 | 30 | 50 | 100 | 200 | |||||
| Inertia | J×10−4〔kg・m2〕 | 3.27 | 6.49 | 13.70 | 24.30 | |||||
| Bore diameter | dH7 | 19 | 24 | 28 | 32 | |||||
| Keyway | bE9×t ＋0.15 | 5×21 | 7×27 | 7×31 | 10×35.5 | |||||
| Circumferential direction | A | 125 | 145 | 165 | 187 | |||||
| B | 112 | 130 | 150 | 170 | ||||||
| Ch9 | 125 | 145 | 165 | 187 | ||||||
| D | 4 | 5 | 5 | 6 | ||||||
| E | 49 | 49 | 62 | 62 | ||||||
| F | 6.6 | 6.6 | 9 | 9 | ||||||
| G | 14 | 14 | 18 | 18 | ||||||
| H | M5 | M5 | M6 | M6 | ||||||
| Axial direction | L | 53.5 | 56.5 | 71 | 81 | |||||
| M | 46 | 49 | 61 | 71 | ||||||
| N | 26 | 27 | 32 | 37 | ||||||
| P | 16 | 18 | 22 | 21 | ||||||
| Q | 25 | 25 | 30 | 40 | ||||||
| R | 11 | 14 | 17 | 21 | ||||||
| S(through to stop) | 0.15~0.3 | 0.15~0.3 | 0.15~0.3 | 0.2~0.35 | ||||||
| Mass (kg) | 3.6 | 5.2 | 7.9 | 12.3 | ||||||
Performance table (operating characteristics).
RNB-N type [for holding] 0.2 type, 0.4 type, 0.8 type, 1.6 type, 3 type, 5 type, 10 type, 20 type.
|
Model RNB-N |
Torque specification (N · m) | Coil (20 ℃) | Magnet attraction time (ms) | Release time of armature (ms) | Allowable number of rotations(r/min) | ||||
| Voltage DC (V) | Current DC (A) | Resistance (Ω) | Power capacity (W) | ||||||
| 0.2 | G | 2 | 24 | 0.41 | 59 | 10 | 35 | 12 | 5000 |
| K | 90 | 0.11 | 815 | ||||||
| 0.4 | G | 4 | 24 | 0.54 | 45 | 13 | 45 | 12 | 4000 |
| K | 90 | 0.14 | 630 | ||||||
| 0.8 | G | 8 | 24 | 0.63 | 38 | 15 | 55 | 15 | 4000 |
| K | 90 | 0.17 | 540 | ||||||
| 1.6 | G | 16 | 24 | 0.76 | 32 | 18 | 55 | 25 | 3500 |
| K | 90 | 0.20 | 445 | ||||||
| 3 | G | 30 | 24 | 0.96 | 25 | 23 | 70 | 35 | 3500 |
| K | 90 | 0.25 | 358 | ||||||
| 5 | G | 50 | 24 | 1.13 | 21 | 27 | 90 | 50 | 3000 |
| K | 90 | 0.30 | 300 | ||||||
| 10 | G | 100 | 24 | 1.37 | 17.5 | 33 | 180 | 65 | 3000 |
| K | 90 | 0.37 | 245 | ||||||
| 20 | G | 200 | 24 | 1.88 | 12.8 | 45 | 250 | 90 | 2500 |
| K | 90 | 0.50 | 180 | ||||||
Applicable scenarios:
Maintain function: Provide braking force through non excited state when stable load holding is required.
Emergency stop: In case of emergency, the power can be quickly cut off, and rapid braking can be achieved through spring force to ensure equipment safety.
Industrial applications: widely used in automation equipment, production lines, machine tools and other fields to ensure the stability and safety of equipment operation.
Product Function:
Non excitation action: When the coil is not energized, the brake is in a braking state; After being powered on, the armature is attracted by the magnetic yoke and the brake is released.
Quick braking: Utilizing spring force to achieve quick braking, with short braking response time and good braking effect.
Manual release: Some models (3-20) support manual release function, which releases the brake by pushing the armature with bolts, facilitating equipment maintenance and troubleshooting.
Protective element: It is recommended to use built-in protective elements or protective elements connected in parallel with the coil to protect the power supply device from damage.
