    Dry Single Board Electromagnetic Clutch/Brake

    ,

    V Series Electromagnetic Clutch/Brake

  • Power Model
    OTPF/H25/H45/H70
  • Rectification Method
    Single-phase Full Wave
  • Frequency
    50/60Hz
  • AC Input Voltage
    100/200V
  • DC Output
    24V
  • Heat Dissipation
    Strong
  • Durability
    Good
  • Sensitivity
    High
  • Place of Origin
    Japan
  • Model Number
    V series
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage

  • V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage
  • V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage
  • V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage
  • V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage
Get Price Contact Now

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

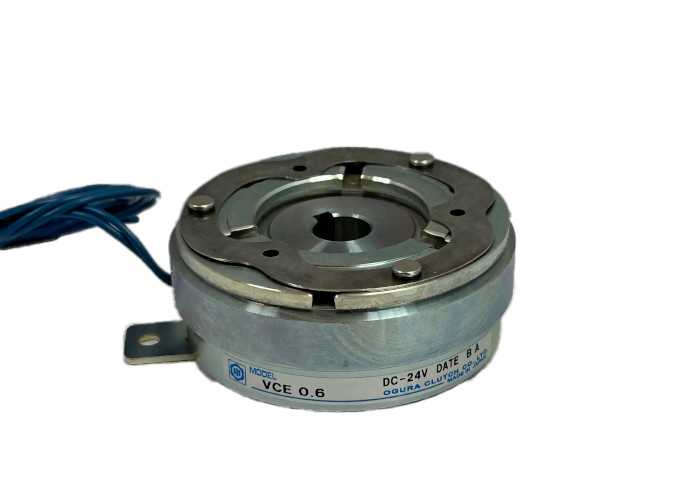

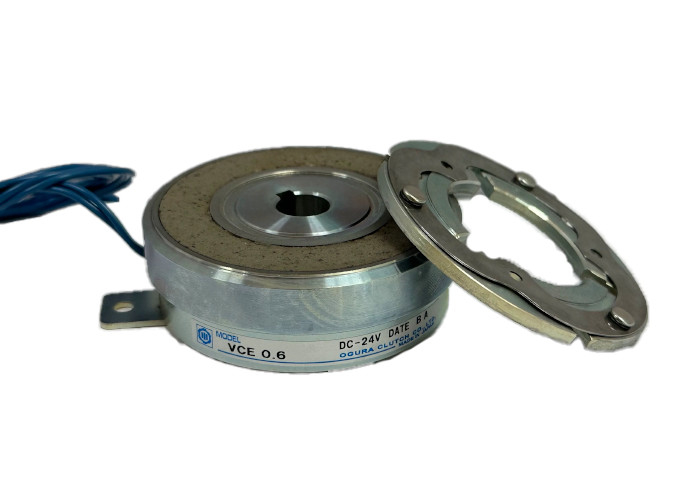

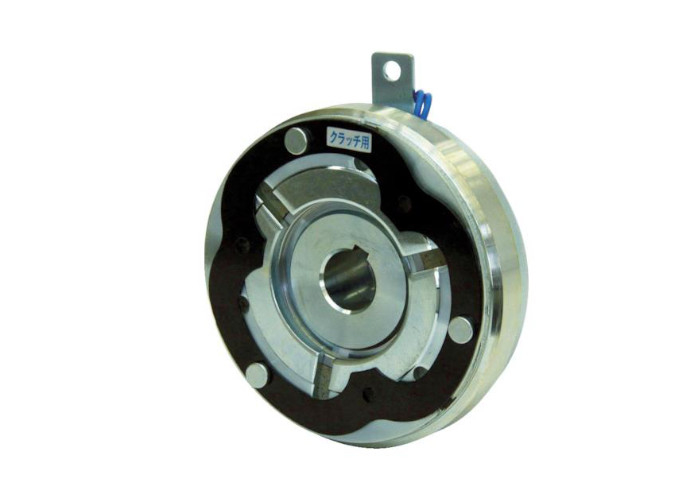

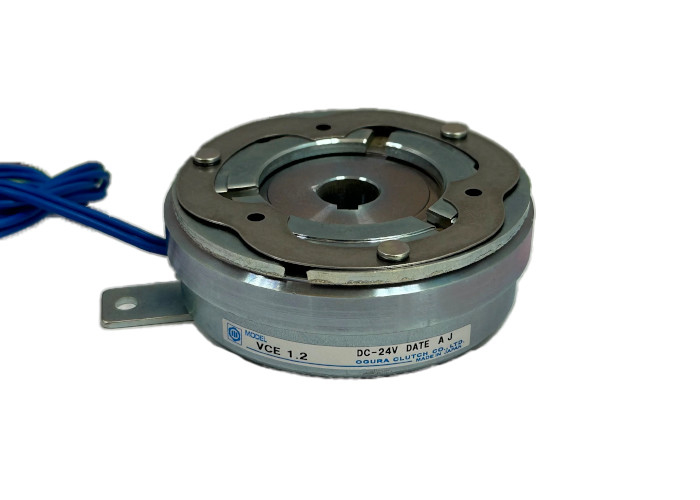

The Electromagnetic Clutch&Brake V series products are a dry single board electromagnetic clutch/brake that combines lightweight, high torque, easy installation, high sensitivity, noise free operation, and strong heat dissipation capabilities. This product is widely used in the field of industrial automation, providing precise torque control and braking solutions for various mechanical equipment, while meeting the needs of long-term stable operation.

Technical Parameter:

VCE dry single-plate electromagnetic clutch

Type 0.6, Type 1.2, Type 2.5, Type 5, Type 10, Type 20

Torque: 6 - 200 N·m.

Model VCE 0.6 1.2 2.5 5 10 20
Static friction torque [N·m] 6 12 25 50 100 200
Inertia J×10-4[kg·m2] Rotor end 0.9 2.6 8.1 24.1 58.0 182
Armature end 0.5 1.5 4.8 14.3 45.0 136
Bore diameter dH7 12 15 20 25 30 40
Keyway side bJs9×t+0.15 4×13.8 5×17.3 6×22.8 8×28.3 8×33.3 12×43.3
Circumferential direction A 70 90 113 142 178 225
C 35 45 53 66 83 107
E 41 56 65 78 100 125
F 5 6 6 6 10 10
G 14 16 16 16 24 24
H 4.5 5.5 6.5 6.5 8.5 8.5
J 46 60 76 95 120 158
K M3 M4 M5 M6 M8 M10
Axial direction L 30 35.1 40.5 45.5 50.6 60.5
M 24 26.5 30 33.5 37.5 44
N 5.5 6.6 8.5 10 13.1 44
P 0.5 2 2 2 0 0
R 5.8 7 8.2 10.4 14 17.5
T 1.6 2 2 2 2.9 2.9
Mass[kg] 0.53 0.99 1.9 3.2 5.8 10.8

V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage 0

VBE dry single-plate electromagnetic brake

Type 0.6, Type 1.2, Type 2.5, Type 5, Type 10, Type 20

Torque: 6 - 200 N·m

Model VBE 0.6 1.2 2.5 5 10 20
Static friction torque [N·m] 6 12 25 50 100 200
Inertia. J×10-4[kg·m2] 0.5 1.5 4.8 14.3 45.0 136
Circumferential direction A 67 86 108 136 170 215
C 35 45 53 66 83 107
D 35 45 52 65 80 107
E 62 82 100 125 156 200
F 85 110 135 165 210 265
G 75 98 122 150 190 240
H 4.5 5.5 6.5 6.5 8.5 11
J 46 60 76 95 120 158
K M3 M4 M5 M6 M8 M10
Axial direction L 24.5 27.5 31.5 35 40 47.5
R 5.8 7 8.2 10.4 14 17.5
T 1.8 2.1 2.4 2.4 2.7 3
Mass[kg] 0.32 0.59 1.1 2.0 3.7 7.0

V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage 1

Performance table "Operating characteristics".

Type V, Type 0.6, Type 1.2, Type 2.5, Type 5, Type 10, Type 20.

Model Static friction torque [N · m] Coil (20 ℃) Magnet attraction time (S) Torque rise time (S) Release time of armature (S) Allowable number of rotations (r/min)
Voltage (DC-V) Current (A) Resistance (Ω) Power capacity (W)
VCE0.6 6 24 0.50 48 12 0.020 0.050 0.020 7000
VBE0.6 0.010 0.040
VCE1.2 12 0.65 37 15 0.020 0.050 0.030 6000
VBE1.2 0.62 39 0.015 0.045
VCE2.5 25 0.92 26 22 0.030 0.070 0.050 5500
VBE2.5 0.020 0.060
VCE5 50 1.41 17 33 0.045 0.085 0.070 4500
VBE5 0.025 0.065
VCE10 100 1.60 15 38 0.090 0.130 0.085 3600
VBE10 0.040 0.078 0.035
VCE20 200 2.20 11 53 0.110 0.155 0.095 3000
VBE20 0.055 0.095 0.062



Performance table "Workload".

Type V, Type 0.6, Type 1.2, Type 2.5, Type 5, Type 10, Type 20.

Model

VCE,VBE

 Maximum adjustable gap [mm] Maximum adjustable total workload [J] Maximum total workload [J]
0.6 0.5 2.9×107 13×107
1.2 0.6 6.6×107 25×107
2.5 0.7 13×107 49×107
5 0.8 26×107 88×107
10 1.2 62×107 170×107
20 1.5 120×107 320×107

V Series Dry Single Board Electromagnetic Clutch/Brake with 100/200V AC Input Voltage 2

Applicable scenarios:

Application areas: Suitable for industrial automation fields that require precise control of torque transmission and braking, such as mechanical processing, automated production lines, packaging machinery, etc.

Installation environment: Free installation direction, easy to install, suitable for various complex installation environments.

Product Function:

Torque control: Provides a torque range of 6 to 200N · m to meet different load requirements.

Quick response: capable of quickly generating and releasing torque, achieving high-precision motion control.

Silent operation: Due to the use of a zero backlash design, no noise is generated during rotation, improving the quality of the working environment.

Heat dissipation and durability: It has strong heat dissipation capability to ensure long-term stable operation, while also having good durability.

Accessory parts: equipped with screws, spring washers, spacers, washers, protective elements and other accessories for easy installation and maintenance.
