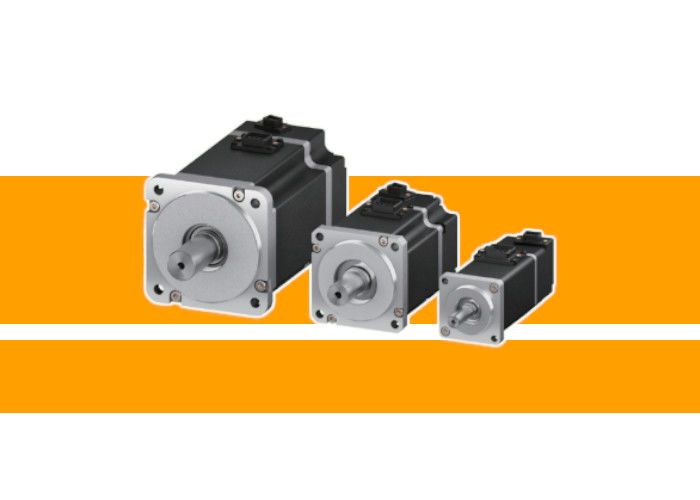

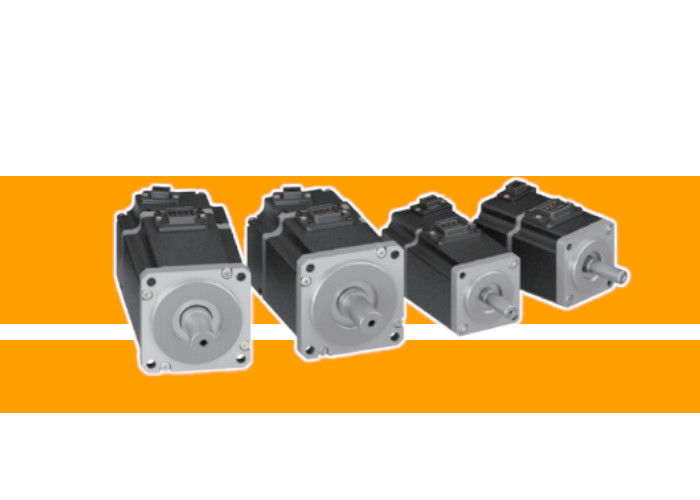

AC servo motor E-series, fast positioning, stable operation, and adjustable load free operation.
-
Power50 W~750 W
-
Protection LevelIP67
-
Encoder17 Bits/23 Bits
-
Maximum Speed6000 RPM
-
Place of OriginTaiwan
-
Model NumberE1series
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging
AC servo motor E-series, fast positioning, stable operation, and adjustable load free operation.
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:
AC servo motor is a type of motor with high speed and low torque. It can control the rotating motor through the driver for current, speed, and position control, and has the characteristics of high precision, low noise, high response, and high instantaneous output.
The newly developed AC servo motor is not only used in automation industries such as panels, semiconductors, laser cutting, PCBs, tool machines, 3C electronics, energy, automobiles, measurement/detection, etc., but also has a smaller volume and improved maximum speed and analysis accuracy feedback compared to the previous generation FR series. Paired with a brand new E-series drive, it showcases advantages such as fast positioning and tuning, good operational stability, and no need to adjust to changing loads, effectively improving overall work efficiency and level.
Features of E-series servo motors:
- The maximum speed can reach 6000 RPM
- Resolution rotation of 17 bits/23 bits
- High servo control bandwidth
- Easy and quick installation interface
- Power range from 50 W to 750 W, optional for brake, IP67 protection, and keyway installation
Application scenarios
Various automation industries such as panels, semiconductors, lasers, PCBs, tool machines, measurement/testing, energy, etc.
Technical Parameter

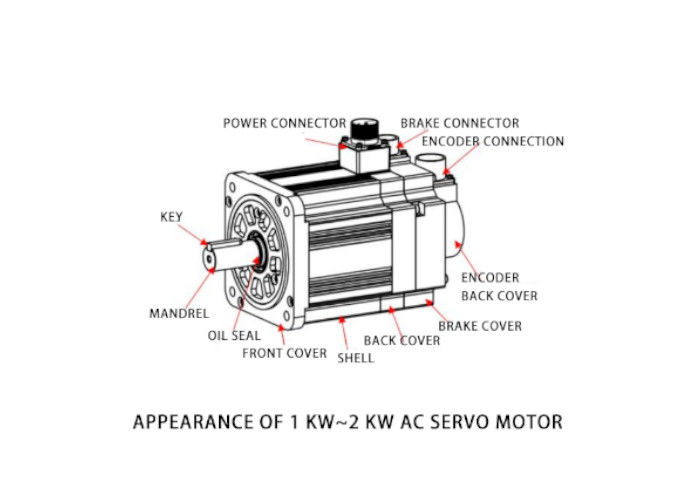

Technical parameters of medium inertia high-speed version servo motor.
| Parameter | 1.2kW | 2kW |
| Driver input voltage(V) | AC220 | |
| output power(W) | 1200 | 2000 |
| Rated torque(Nm) | 5.73 | 9.55 |
| Rated current(A) | 9.1 | 12 |
| Instantaneous maximum torque(Nm) | 16 | 30 |
| Instantaneous maximum current(A) | 27 | 42 |
| Rated speed(RPM) | 2000 | |
| Maximum speed(RPM) | 5000 | |
| Torque constant(Nm/Arms) | 0.63 | 0.796 |
| Back electromotive force constant(Vrms/KRPM) | 41.52 | 50.49 |
| Line resistance(Ω) | 0.482 | 0.264 |
| Line inductance(mH) | 4.54 | 2.825 |
| Inertia of rotor (including brakes)(kg·m2) | 7.2 | 12.8 |
| Quality (including brakes)(kg) | 5.3(6.1) | 7.9(8.7) |
| Insulation level | Class F | |
| Protection level | Fully enclosed self cooling, IP67 (except for shaft end) | |
| Insulation impedance | 10MΩ,DC 500V | |
| Dielectric Strength | AC 1500V,60 seconds | |

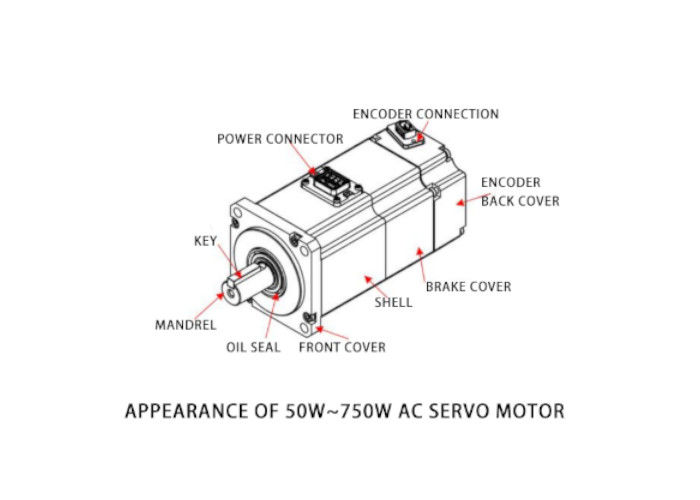

Specification of medium inertia servo motor.
| Parameter | 50W | 100W | 200W | 400W | 750W | 1KW |
| Driver input voltage(V) | AC220 | |||||
| output power(W) | 50 | 100 | 200 | 400 | 750 | 1000 |
| Rated torque(Nm) | 0.16 | 0.32 | 0.64 | 1.27 | 2.39 | 4.77 |
| Rated current(A) | 0.64 | 0.78 | 1.6 | 2.5 | 4.65 | 5.1 |
| Instantaneous maximum torque(Nm) | 0.59 | 1.18 | 2.24 | 4.44 | 8.36 | 14.3 |
| Instantaneous maximum current(A) | 2.8 | 3.45 | 6.4 | 10 | 18.6 | 15.3 |
| Rated speed(RPM) | 3000 | 2000 | ||||
| Maximum speed(RPM) | 6000 | 3000 | ||||
| Torque constant(Nm/Arms) | 0.25 | 0.41 | 0.4 | 0.508 | 0.514 | 0.935 |
| Back electromotive force constant(Vrms/KRPM) | 18.526 | 28.364 | 27.23 | 33.87 | 33.48 | 54.15 |
| Line resistance(Ω) | 25.24 | 22.72 | 5.53 | 3.59 | 1.08 | 0.81 |
| Line inductance(mH) | 13.09 | 13.86 | 8.76 | 7.22 | 4.6 | 8 |
| Inertia of rotor (including brakes)(kg-m2) | 0.0368 | 0.062 | 0.263 | 0.48 | 1.44 | 7.2 |
| Quality (including brakes)(kg) | 0.3(0.5) | 0.41(0.61) | 0.8(1.03) | 1.2(1.74) | 2.64(3.3) | 5.4(6.2) |
| Insulation level | Class F | |||||
| Protection level | Fully enclosed self cooling, IP67 (except for shaft end) | |||||
| Insulation impedance | 10MΩ,DC 500V | |||||
| Dielectric Strength | AC 1500V,60 seconds | |||||
