AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems

AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems

  • Model
    FR Series
  • Protection Level
    IP65
  • Input Power Supply
    220V
  • Place of Origin
    Taiwan
  • Model Number
    FR series
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

Universal servo motor: FR series

AC servo motor is a high speed and low torque universal rotary motor, often used in automation, processing machines, flippers, inspection equipment, or winding machines.

Paired with servo drive control, it can achieve high response, high acceleration and deceleration, and excellent motion stability. Paired with various transmission components and diverse motor options to meet various customer application needs.



  • Internally rotating permanent magnet motor
  • Brushless electronic commutation drive
  • High energy density
  • high efficiency
  • Optional keys
  • Optional brake and oil seal

Model specifications:

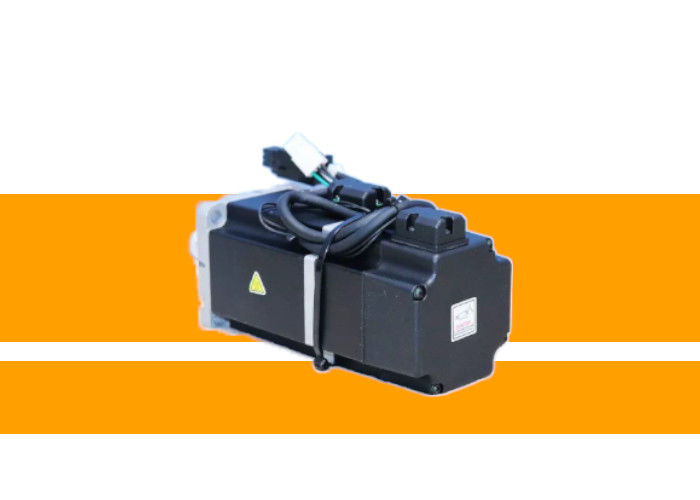

AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems 0

Technical Parameter:

Low inertia, small capacity

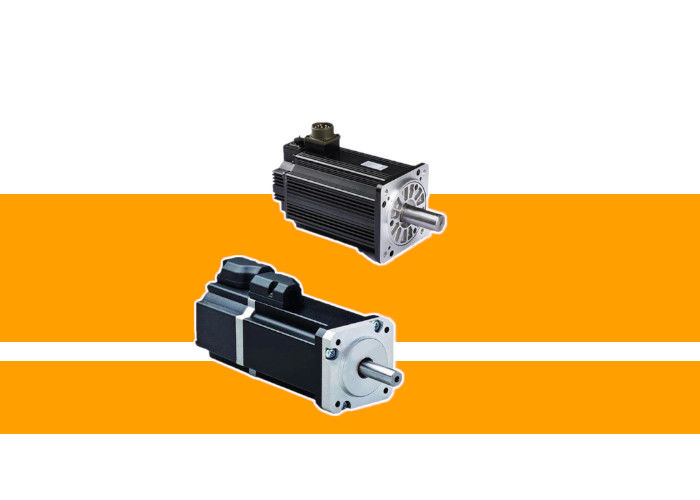

AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems 1

Parameter 50W 100W 200W 400W
Driver input voltage (V) AC220
Output power (W) 50 100 200 400
Rated torque (N.m) 0.16 0.32 0.64 1.27
Rated current (A) 0.9 0.9 1.7 2.5
Instantaneous maximum torque (N.m) 0.48 0.96 1.92 3.81
Instantaneous maximum voltage (A) 2.7 2.7 5.1 7.5
Rated speed (rpm) 3000
Rated no-load speed (rpm) 4500
Torque constant (N.m/Arms) 0.178 0.356 0.38 0.51
Back electromotive force constant (Vrms/Krpm) 10.74 21.98 23 31.9
Line resistance (Ω) 4.7 8 4.3 3.5
Line inductance (mH) 4.7 8.45 13 13
Inertia of rotor (including brake) (kg-m2 (x10-4)) 0.02(0.022) 0.036(0.038) 0.17(0.21) 0.27(0.31)
Mass (including brakes) (kg) 0.45(0.58) 0.63(0.76) 0.95(1.5) 1.31(1.86)
Insulation level Class A(UL)
Protection level Fully closed self cooling, IP65 (except for shaft end and connector end)
Insulation impedance 10MΩ,DC500V
Dielectric Strength AC1500V, 60 seconds



Medium inertia, small capacity

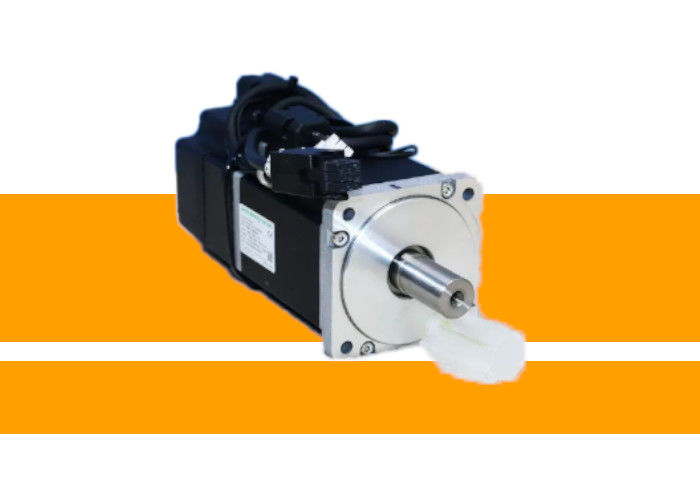

AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems 2AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems 3

Parameter 50W 100W 200W 400W 750W
Driver input voltage (V) 220
Output power (W) 50 100 200 400 750
Rated torque (N.m) 0.16 0.32 0.64 1.27 2.4
Rated current (A) 0.9 0.9 1.7 2.6 5.1
Instantaneous maximum torque (N.m) 0.48 0.96 1.92 3.81 7.2
Instantaneous maximum voltage (A) 2.7 2.7 5.1 7.8 15.3
Rated speed (rpm) 3000
Rated no-load speed (rpm) 4500
Torque constant (N.m/Arms) 0.178 0.356 0.38 0.48 0.47
Back electromotive force constant (Vrms/Krpm) 11.51 20.93 25 29.61 28.4
Line resistance (Ω) 13.17 19 5.63 4.13 0.813
Line inductance (mH) 11.75 23.78 11.5 9.9 3.4
Inertia of rotor (including brake) (kg-m2 (x10-4)) 0.025(0.027) 0.051(0.055) 0.24(0.26) 0.44(0.48) 1.4(1.46)
Mass (including brakes) (kg) 0.38(0.51) 0.54(0.67) 0.95(1.5) 1.31(1.86) 2.66(3.32)
Insulation level Class A(UL)
Protection level Fully closed self cooling, IP65 (except for shaft end and connector end)
Insulation impedance 10MΩ,DC500V
Dielectric Strength AC1500V, 60 seconds



Medium inertia, medium capacity

AC Servo motor FR series, used for smooth and precise positioning of industrial motors in automation systems 4

Parameter 1000W 2000W
Driver input voltage (V) AC220 -
Output power (W) 1000 2000
Rated torque (N.m) 4.77 9.55
Rated current (A) 5.1 11
Instantaneous maximum torque (N.m) 14.3 28.65
Instantaneous maximum voltage (A) 15.3 33
Rated speed (rpm) 2000 -
Rated no-load speed (rpm) 3000 -
Torque constant (N.m/Arms) 0.94 0.87
Back electromotive force constant (Vrms/Krpm) 54.7 57.8
Line resistance (Ω) 0.81 0.41
Line inductance (mH) 8 3.7
Inertia of rotor (including brake) (kg-m2 (x10-4)) 7.6(8.7) 13(14.1)
Mass (including brakes) (kg) 5.4(6.2) 8(8.8)
Insulation level Class A(UL)
Protection level Fully closed self cooling, IP65 (except for shaft end and connector end)
Insulation impedance 10MΩ,DC500V
Dielectric Strength AC1500V, 60 seconds
