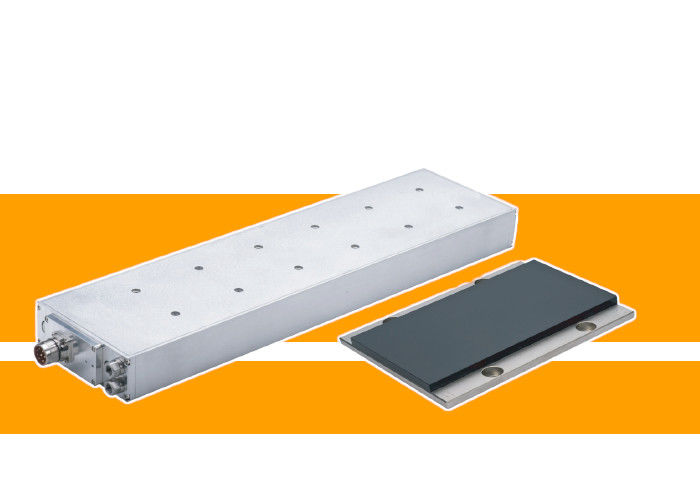

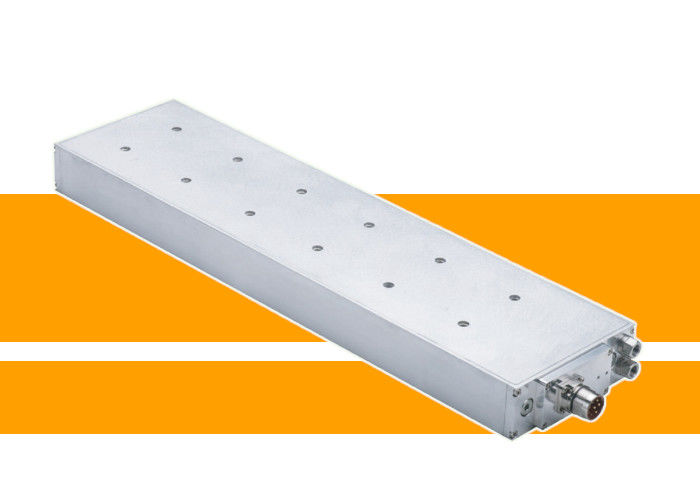

Linear motor LMFP series, water-cooled. There are only two motors in Europe with an instantaneous thrust of 20,000N
-
Installation Height66.1mm
-
Maximum Temperature Of Coil120℃
-
Water Cooling Temperature20℃
-
Thermal Time Constant150s
-
Protection LevelIP65
-
Place of OriginTaiwan
-
Model NumberLMFP series
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging
Linear motor LMFP series, water-cooled. There are only two motors in Europe with an instantaneous thrust of 20,000N
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:
The new generation permanent magnet synchronous linear motor LMFP in the high-precision positioning platform is outstanding. Based on inheriting the advantages of the previous generation and making innovations, it has become a highlight product in the European machine tool market, providing strong power and the best solution for the machine tool and related fields.
LMFP Number Description:
Technical Parameter:
| PARAMATER | LMFP24-F40 | LMFP24-H40 | LMFP31-Q10 | LMFP31-Q20 |
| Continuous thrust (N) | 874 | 874 | 413 | 413 |
| Continuous current (A) | 5.7 | 8.6 | 4.1 | 8.2 |
| Continuous thrust (WC) (N) | 1747 | 1747 | 827 | 827 |
| Continuous current (WC) (A) | 11.4 | 17.2 | 8.2 | 16.5 |
| Instantaneous thrust (1s) (N) | 3477 | 2477 | 1797 | 1797 |
| Instantaneous current (1s) (A) | 35.3 | 53.2 | 25.6 | 51.2 |
| Thrust constant (N/A) | 153.6 | 101.8 | 100.3 | 50.2 |
| Suction force between rotor and stator (N) | 4583 | 4583 | 3121 | 3121 |
| Maximum temperature of coil (℃) | 120 | |||
| Electrical time constant (ms) | 8.1 | 7.9 | 12 | 12 |
| Resistance (between wires, 25 ° C) (Ω) | 7.1 | 3.2 | 3.6 | 0.9 |
| Resistance [Between Lines, 120C) (Ω) | 9.7 | 4.4 | 4.9 | 1.2 |
| Inductance (Between Lines) (mH) | 57.6 | 25.3 | 43.2 | 10.8 |
| Extreme distance (mm) | 30 | 30 | 46 | 46 |
| Back electromotive force constant (line to line) (Vrms) | 88.7 | 58.8 | 57.9 | 29 |
| Motor constant (25 ° C) (N/√ W) | 47 | 46.6 | 43.3 | 43.3 |
| Thermal resistance (℃/W) | 0.2 | 0.19 | 0,77 | 0.78 |
| Thermal resistance (WC) (℃/W) | 0.05 | 0.05 | 0.19 | 0.19 |
| Thermal time constant (s) | 150 | |||
| Minimum flow rate (L/min) | 4 | |||
| Water cooling temperature (℃) | 20 | |||
| Pressure drop (bar) | 3.18 | 3.18 | 0.57 | 0.57 |
| Thermal sensing switch | 1 x PT1000 + 1X(3 PTC SNM 120 In Series) | |||
| Instantaneous thrust maximum speed (m/s) | 0.7 | 1.3 | 2.4 | 5.1 |
| Maximum input power (W) | 20565 | 23200 | 9130 | 13883 |
| Maximum heat loss (W) | 1891 | 1953 | 494 | 490 |
Applicable scenarios:
It is mainly applied in the machine tool industry and related fields, driving the development of the industry.
Product Function:
Outstanding thermal countermeasures: Inheriting and optimizing the built-in water cooling system, and the special electromagnetic and heat dissipation design improves thrust density performance, showing outstanding performance in thermal management.
Powerful thrust: It is the only linear motor in the European machine tool market with an instantaneous thrust of up to 20,000N, bringing strong power support to the machine tool industry.
Integrated packaging shell technology: In highly polluted environments such as those filled with cutting fluid and high dust and other harsh conditions, it provides better protection than the IP65 waterproof level to ensure stable operation of the motor.
Advantages in combination: When used in combination with the precision water-cooled product LMFC and adopting a double-layer dual-circuit water-cooled design, the motor efficiency and surface temperature can reach the best performance state, providing a solid guarantee for high-precision processing and stable operation.
