Linear motor LMSA series has small size and high thrust, suitable for PCB, FPC, FPD, and LDI industries

Linear motor LMSA series has small size and high thrust, suitable for PCB, FPC, FPD, and LDI industries

  • Installation Height
    34mm,36mm
  • Maximum Operating Voltage
    325v
  • Extreme Distance
    30mm
  • Place of Origin
    Taiwan
  • Model Number
    LMSA series
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

Linear motor LMSA series has small size and high thrust, suitable for PCB, FPC, FPD, and LDI industries

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

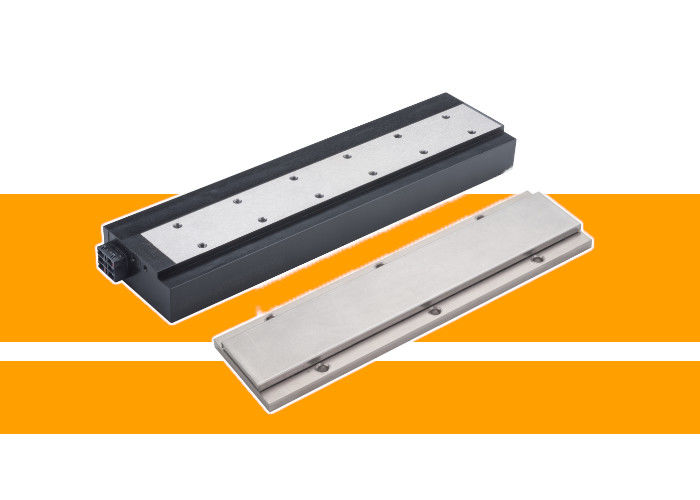

The synchronous linear motor LMSA is an outstanding representative among linear drive products. With its low flatness and compact design, it achieves the perfect fusion of minimum volume and maximum thrust output within a limited space, demonstrating excellent engineering wisdom. Among them, the LMSA-Z series is even more unique.

Technical Parameter:

parameter unit LMSA01-Z LMSA02-Z LMSA11-Z
continuous thrust N 52 104 103
Continuous current A 2.1 4.2 2.1
Instantaneous thrust (1s) N 112 224 289
Instantaneous current (1s) A 6.3 12.6 6.3
force constant N/A 24.5 24.5 48.6
Suction force between rotor and stator N 241 482 481
Maximum temperature of coil 120
Electrical time constant ms 3 3.7 4.4
Resistance (between wires, 25 ° C) Ω 6.2 3.1 8.4
Resistance (between wires, 120 ° C) Ω 8.5 4.3 11.6
Inductance (Between Lines) mH 23 11.6 37.1
Extreme distance mm 30
Motor wire deflection radius mm -
Back electromotive force constant (line to line) Vrms/(m/s) 14.2 14.2 28.1
Motor constant (25C) N/√W 8.1 11.5 13.7
thermal resistance ℃/W 1.69 0.83 1.23
Thermal time constant S 610
Thermal sensing switch - 3PTC SUN120 In Series
Maximum operating voltage VDC 325
Motive mass kg 0.49 0.98 0.7
Unit mass of stator kg/m 1.9 1.9 2.7
