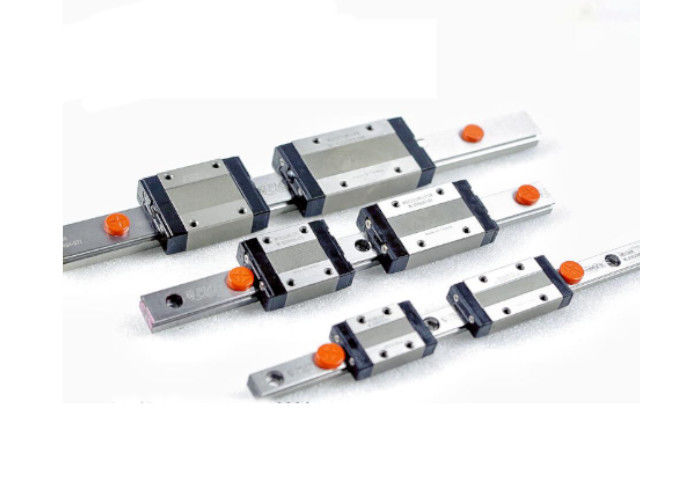

Miniature linear guide MSC12M - Miniature MSC12: Ultra - miniaturization, low frictional resistance.

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

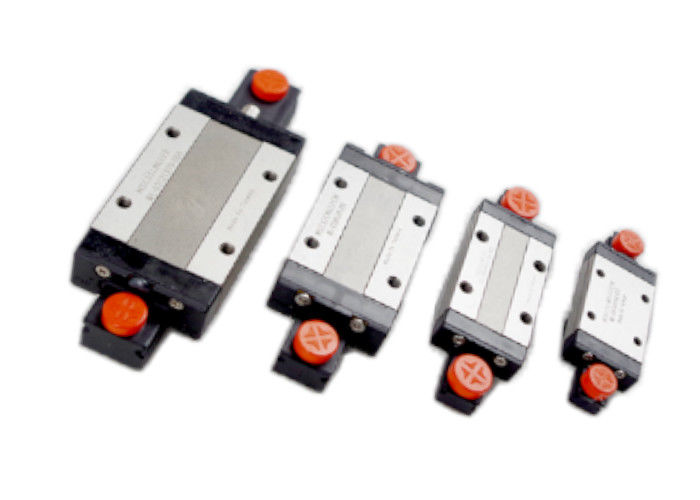

The MSC standard type and MSD wide stainless steel series of this linear guide play an important role in the field of linear guides with their unique design and excellent performance. This series adopts the steel ball design of two rows of Goethe arc contact and 45° contact angle. Combined with the characteristics of ultra-miniaturization, low frictional resistance and the lubricating oil circuit design, it provides high-precision, high-reliability and smooth and stable linear motion solutions for various equipments.

Technical Parameter:

Precision grade of PMI linear guide rail

Applicable scenarios:

Due to its excellent performance and characteristics, the MSC standard type and MSD wide stainless steel series of this linear guide are widely used in various fields, such as electronic equipment manufacturing, automated production lines, precision instruments, medical equipment, etc. In these fields, this series of linear guides provides a reliable guarantee for the accurate movement and stable operation of equipment.

Product Function:

Four-way equal load design:

The steel ball column design is unique, adopting two rows of Goethe arc contact type and a 45° contact angle, so that it has the same rated load capacity in the radial, anti-radial and transverse directions. This design makes it suitable for various installation methods of X, Y, Z and other axes, providing strong support for the multi-directional movement of equipment.

Ultra-small design:

In a limited space, this series of linear guides provides the best choice for miniaturized devices. Its compact size and optimized structural design can meet the strict space requirements of small devices without sacrificing performance and reliability.

Steel ball wire retainer design:

Equipped with a steel ball wire retainer design, it effectively prevents the steel balls from falling off improperly. This design feature improves the stability and reliability of the guide rail and reduces the failure and maintenance cost caused by the falling off of steel balls.

Smooth walking and low noise:

The steel ball return path design is simple and smooth. When used in combination with impact-resistant reinforced synthetic resin steel ball circulation accessories, it ensures smooth operation and low noise. This design makes the equipment run more quietly and smoothly during operation, improving the comfort of the working environment and the reliability of the equipment.

Interchangeability feature:

Under strict manufacturing precision control, the size can be maintained within a stable tolerance. This makes it possible for interchangeable linear guides that the slider can be assembled arbitrarily on the same type of guide rail during assembly while maintaining the same smoothness, preload and accuracy. This feature greatly facilitates the assembly and maintenance of equipment, improving production efficiency and reducing maintenance costs.
