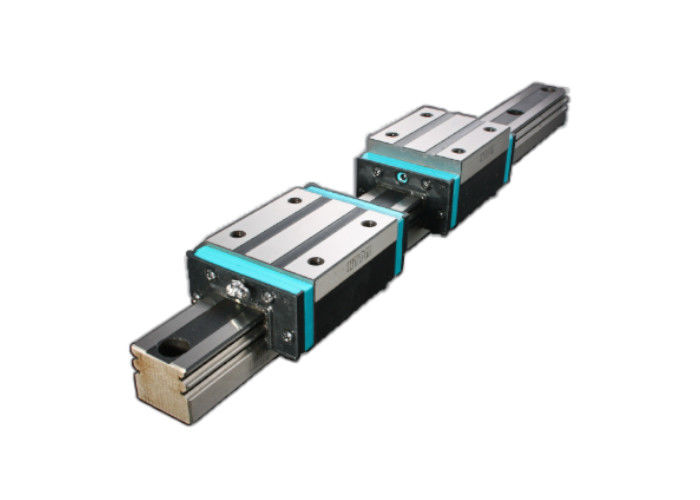

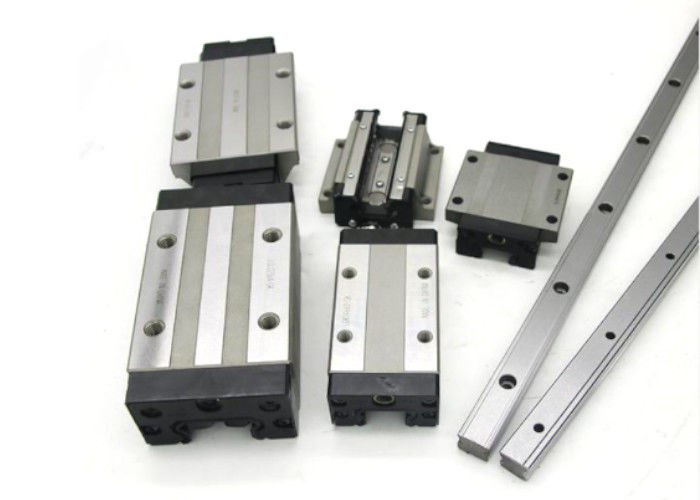

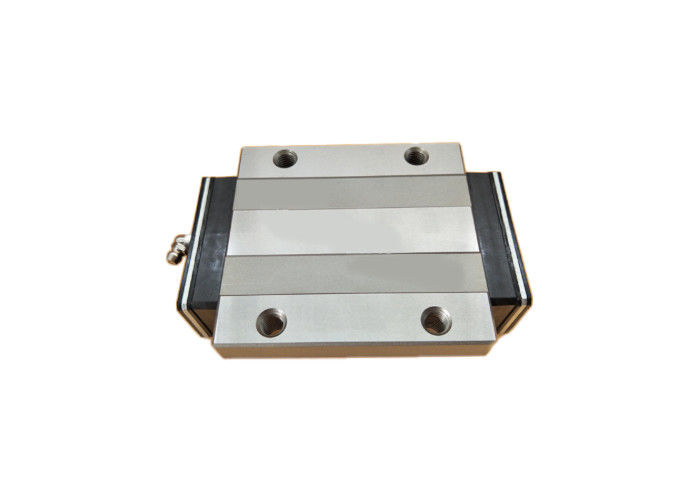

Ultra - high - rigidity, low - center - of - gravity, retainer - type roller linear guide SRN series

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

Linear guide SRG system: By using roller retainers to evenly separate and arrange the rollers for circulation, it can prevent roller displacement when the slider reaches the load area, and minimize the fluctuation of rolling resistance, thereby achieving smooth and stable motion.

The SRN type achieves low friction and smooth motion by using roller retainers, making it an ultra high rigidity roller guide that allows for long-term operation without maintenance.

Technical Parameter:

customization:

Ultra high rigidity

By using high rigidity rollers as rolling elements and making the total length of the rollers 1.5 times or more the diameter of the rollers, higher rigidity can be obtained.

4-way equal load

In order to ensure that all four directions of action (radial, anti radial, and lateral) on the LM slider have the same rated load, each rolling column row is designed to be configured at a contact angle of 45 °, thus having high rigidity in all directions.

Smooth motion achieved by preventing offset

By using roller retainers to evenly separate and arrange the rollers for circulation, it is possible to prevent roller displacement when the slider reaches the load area, and to minimize the fluctuation of rolling resistance, thereby achieving smooth and stable motion.

Long term operation without maintenance

The use of roller retainers can eliminate the mutual friction between rollers and improve the grease retention ability, thereby achieving long-term operation without maintenance.

Thin and low center of gravity

The overall height of this model is lower than that of the cage type roller rolling guide SRG type, making it most suitable for compact design.

SRN type lubrication hole

SRN type allows lubrication from the side and top surfaces of LM slider. In order to prevent foreign objects from entering the LM slider, the standard component did not drill through the lubrication hole. If using lubrication holes, please consult.
