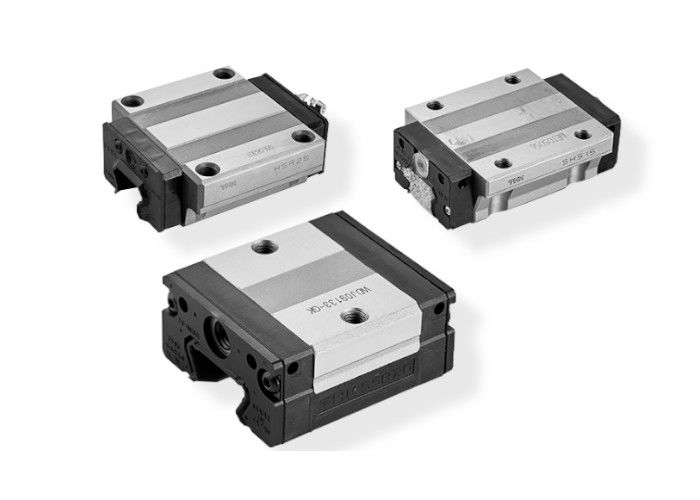

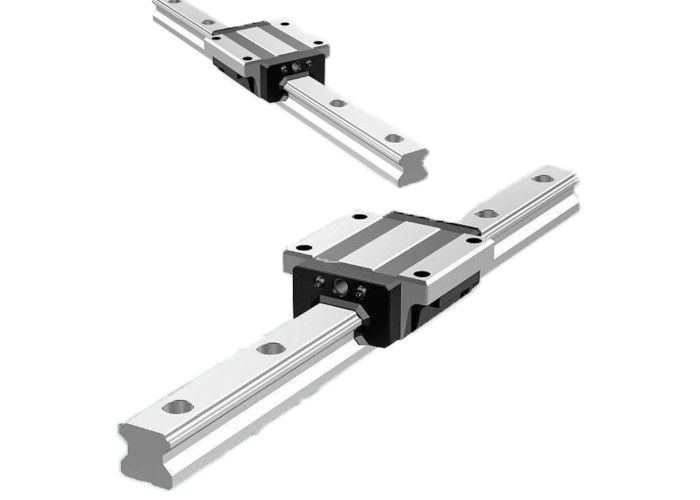

Ultra-high rigidity SRG linear guide: Reduces rolling resistance and achieves smooth and stable motion

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

The SRG series linear guide has many remarkable advantages. Its rollers are evenly spaced and arranged and circulate through the roller retainers. This design cleverly prevents the rollers from displacing when the slider reaches the load area, greatly minimizes the fluctuation of rolling resistance, and thus achieves an extremely stable motion state.

The SRG type realizes smooth motion with low friction by virtue of the roller retainers. This characteristic makes it an ultra-high rigidity roller guide that can operate for a long time without maintenance, saving users a great deal of maintenance costs and time and energy. Whether in the field of precision machining or on automated production lines, the SRG series linear guides can play an important role with their excellent performance and reliable quality, providing strong guarantees for the efficient operation of various equipments.

Technical Parameter:

customization:

Ultra-high rigidity:

By using high-rigidity rollers as rolling elements and making the total length of the rollers 1.5 times or more that of the roller diameter, higher rigidity can be obtained.

Four-way equal load:

To ensure that the linear guide slider has the same rated load in four action directions (radial, anti-radial, and lateral), each rolling column row is designed with a contact angle of 45° configuration, thus having high rigidity in all directions.

Achieving smooth motion by preventing offset:

Using roller retainers to evenly separate and arrange the rollers for circulation can prevent roller displacement when the slider reaches the load area and minimize the fluctuation of rolling resistance, thereby achieving smooth and stable motion.

Long-term maintenance-free operation:

Using roller retainers can eliminate the mutual friction between rollers and improve the grease retention ability, thus achieving long-term maintenance-free operation.

SRG type lubrication hole:

The SRG type allows lubrication from both the side and top surfaces of the linear guide slider. To prevent foreign objects from entering the linear guide slider, the standard component does not have a drilled-through lubrication hole. If using lubrication holes, please consult.

If lubrication holes are used on the top surface of SRG-R and SRG-LR types, separate lubrication accessories are required for lubrication. For detailed information, please consult.

When the installation method is not horizontal, the lubricant may be difficult to be delivered to the rolling surface.
Be sure to contact to understand the installation method of the linear guide slider and the installation positions of the oil nozzle and piping joint.
