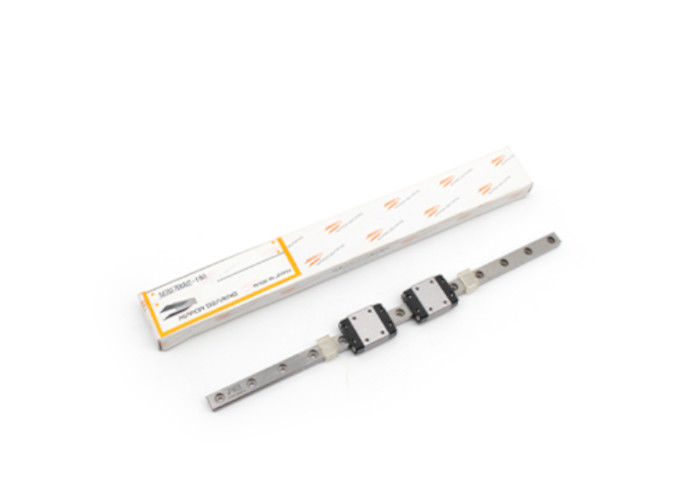

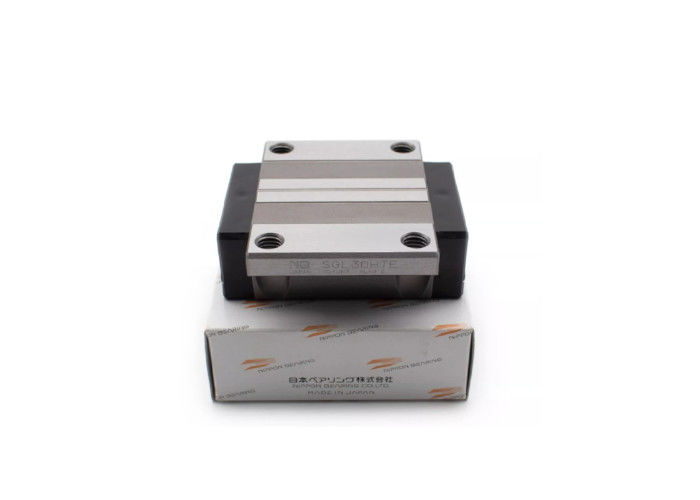

Linear guide SGL series has high load capacity, long lifespan, and the same load capacity in all four directions

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

This product showcases tremendous advantages in numerous fields with its outstanding performance and diverse characteristics. It not only meets the requirements of various complex application scenarios but also brings higher economic benefits and ease of use to users. Whether in improving production efficiency, ensuring equipment precision, reducing maintenance costs, or prolonging service life, it has excellent performance.

Technical Parameter:

Applicable scenarios:

Due to its multiple excellent characteristics such as high load capacity, long lifespan, allowing for greater torque, having the same load capacity in all four directions, smooth movement, corrosion resistance, dustproofing, and fiber cardboard, this product is widely applicable to scenarios with high requirements for load capacity, movement smoothness, corrosion resistance, and dustproofing. For example, in industrial automation production lines, it can accurately and efficiently complete various material conveying tasks to ensure the smooth progress of production. In the field of precision instrument equipment, its smooth movement and high load capacity provide a solid foundation for the accurate operation of instruments. In environments such as clean rooms, its corrosion resistance and dustproof characteristics make it an ideal choice.

Product Function:

High load capacity and long lifespan: The conveying surface of the product is carefully processed into an R shape approximating the radius of a steel ball. This unique design greatly increases the contact area between steel balls, successfully achieving high load capacity and long lifespan. When facing various heavy work tasks, this product can exhibit excellent performance and lasting durability.

Allow for greater torque: With its wide design, the torque resistance of this product is significantly improved, and it can easily handle even in single-axis use. This characteristic provides more possibilities for its use in various complex application scenarios.

Same load capacity in all four directions: Steel balls are evenly arranged at a 45-degree angle, ensuring that the product has the same load capacity in all four directions: up, down, left, and right. No matter which direction the force is applied from, it can maintain stable and reliable performance, providing a solid guarantee for the smooth operation of the equipment.

Smooth movement: The synergy of many effective steel balls enables this product to achieve extremely smooth linear movement. During operation, almost no vibration or shaking can be felt, providing strong support for the high-precision operation of the equipment.

Corrosion resistance specification: The track and slider are treated with low-temperature black chrome, greatly improving the corrosion resistance of the product. The LB specification has been standardized, making it particularly suitable for use in places with high environmental requirements such as clean rooms. This corrosion resistance can effectively extend the service life of the product and reduce maintenance costs.

Dustproof: The side sealing ring has been standardized for loading, providing the first line of defense against dust for the product. In addition, to further improve the dustproof effect, there are also bottom sealing rings and dedicated covers available. In dusty environments, this dustproof design can effectively protect the internal structure of the product and ensure its normal operation.

Fiber cardboard: The slider body can be equipped with fiber cardboard containing lubricating grease. This fiber cardboard can supply an appropriate amount of lubricating grease to the conveying groove, thereby greatly extending the oil injection interval. Reducing the frequency of maintenance improves the convenience and reliability of using the product.
