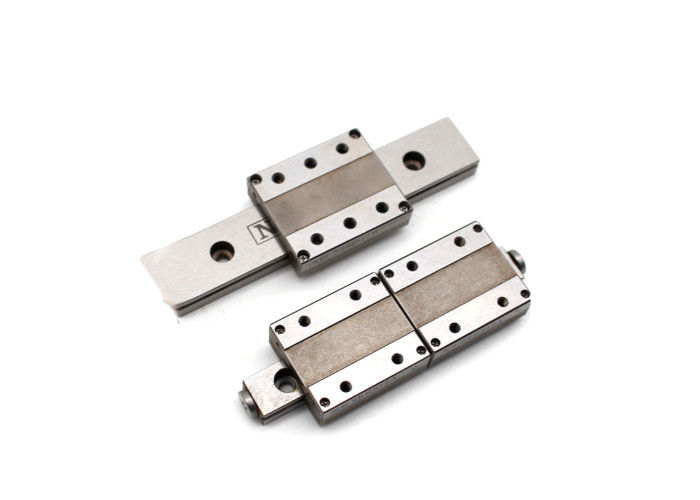

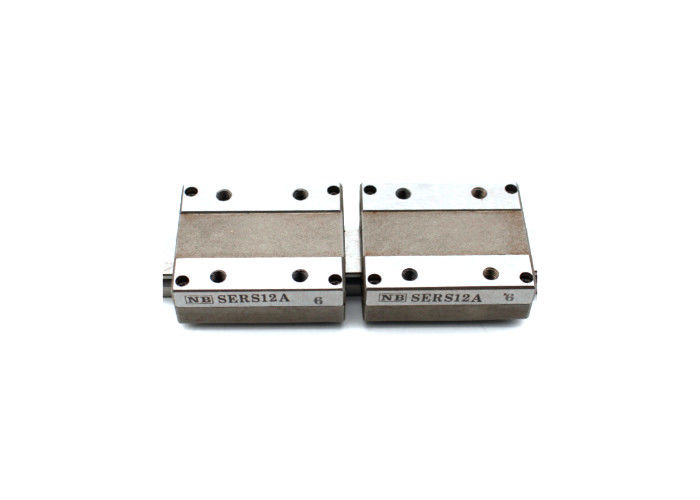

Linear guide SER micro, roller type, long life, high load capacity.

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

High load capacity and long lifespan

The conveying surface is processed into an R shape that approximates the radius of a steel ball, resulting in a large contact area between the steel balls and achieving high load capacity and long lifespan.

Allow for a larger torque

Due to its wide design, the torque resistance has been significantly improved, making it suitable for even single axis use.

The load capacity in all four directions is the same

Steel balls are evenly arranged at a 45 degree angle, ensuring the same load capacity in all four directions: up, down, left, and right.

Smooth movement

There are many effective steel balls, which can achieve extremely smooth linear motion.

Corrosion resistance specifications

The track and slider have undergone low-temperature black chrome treatment, greatly improving their corrosion resistance. The LB specification has been standardized and is most suitable for use in clean rooms and other environments.

dustproof

The side sealing ring has been standardized for loading. Furthermore, in order to improve the dust prevention effect, there are also bottom sealing rings and dedicated covers available.

Fiber cardboard

The slider body can be equipped with fiber cardboard containing lubricating grease inside, which can supply an appropriate amount of lubricating grease to the conveyor groove, thereby greatly extending the oil injection interval.

Technical Parameter:
