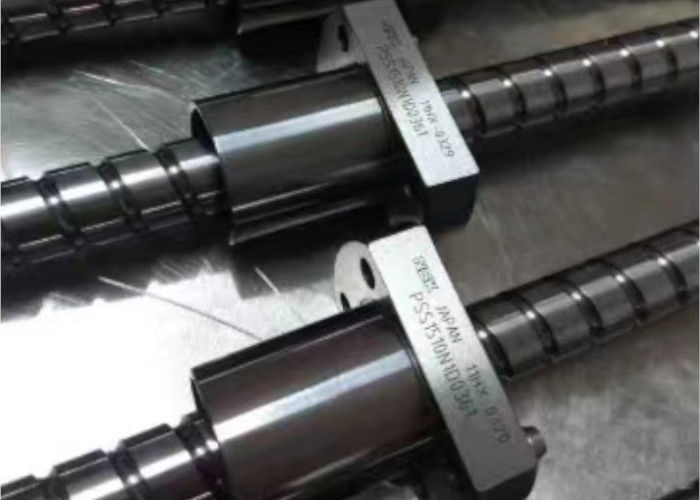

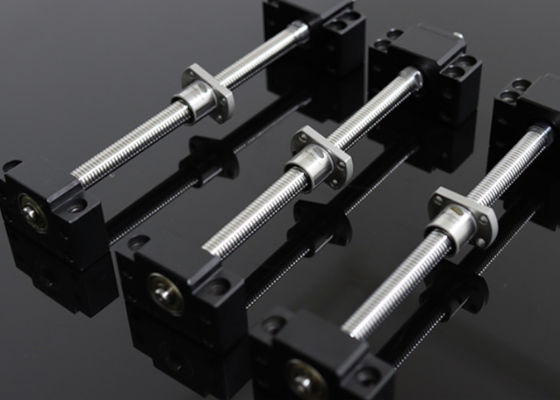

Precision ball screw BIF, DIK, BNFN, DKN, BLW, BNF, DK, MDK, BLK/WGF, BNT types, small and lightweight.

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

Advantages of this precision ball screw series: The DIK type single-nut ball screw is an offset preloaded nut. It creates a phase difference between the left and right threads at the center of a single nut, thereby achieving a negative axial clearance (preloaded state). Compared with the traditional double-nut type (inserting adjustment shims between two nuts), the DIK type is both small and lightweight and can achieve smooth and stable movement.

Technical Parameter:

customization:

Rich combinations of shaft diameter and lead

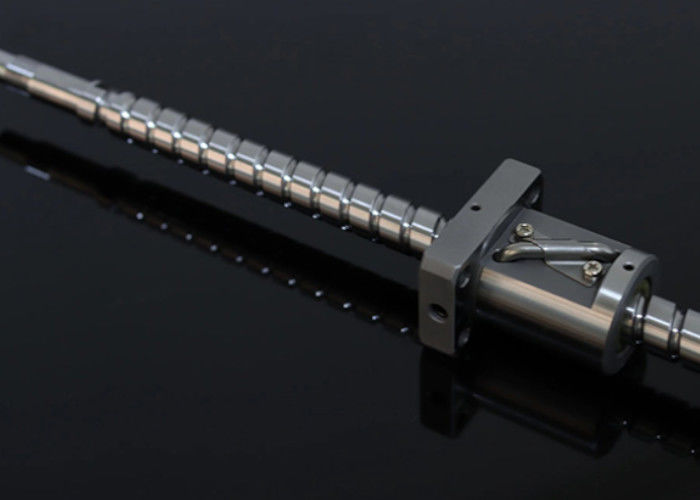

You can choose the combination of shaft diameter and lead that meets the usage conditions from various nut types and screw shaft lead combinations. The types of nuts include reflux pipe nuts (representing the most diverse types in the series), compact single nuts, and large lead end cap nuts.

Provide standard inventory items (unprocessed shaft end products, completed shaft end products)

The type of unprocessed screw shaft at the end of the shaft is mass-produced according to the standard length of the screw shaft; The type of screw shaft that is machined at the end of the shaft, in which the screw shaft is machined to fit the corresponding support unit. Both types are provided as standard components.

Accuracy specifications in accordance with JIS (ISO)

The accuracy of ball screws is managed according to JIS standards (JIS B1192-1997). Move.

Equipped with optional purchasing parts that meet the requirements of the usage environment

The optional purchased parts provided include a QZ self lubricator and a cleaning ring (W). The former significantly extends the interval between repairs, while the latter improves the ability to remove foreign objects in harsh environments.

Structure and Special Features of DIK Type Single Nut Misalignment Pre pressed Ball Screw

The DIK type single nut ball screw is a misaligned preloaded nut. In the central part of the single nut, a phase difference is applied to the threads on the left and right sides, resulting in a negative axial clearance (preloaded state).

Compared with the traditional double nut type (inserting adjustment plates between two nuts), the DIK type is both small and lightweight, and can achieve smooth and smooth movement.
