EK Series Linear Guide Support with Special Sealing Gasket and 45° Contact Angle

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

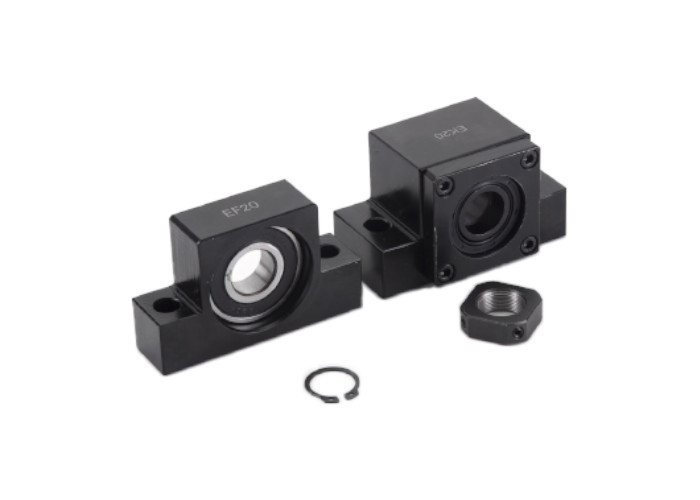

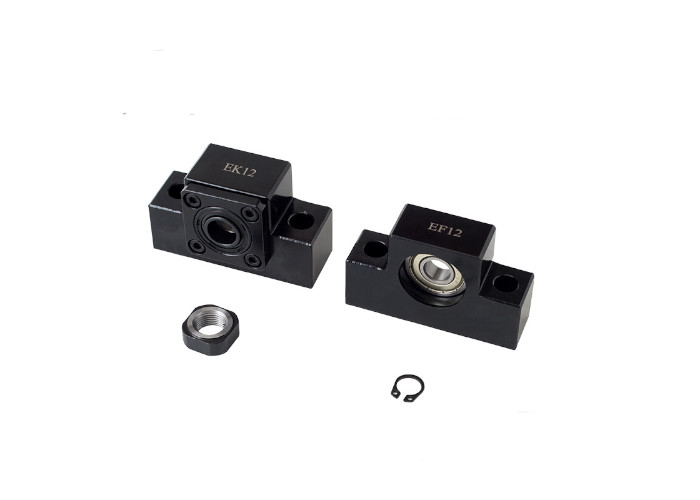

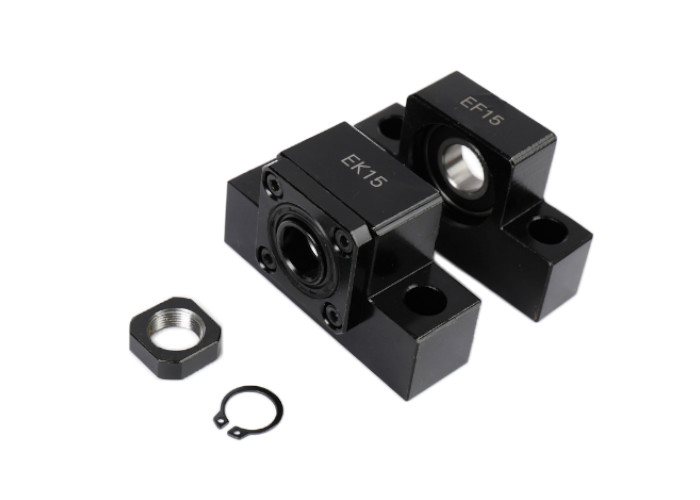

The EK series silent screw support seat is a component designed specifically for high-precision transmission systems, using deep groove ball bearings and special sealing technology to ensure long-term stable operation. This support seat is suitable for various industrial automation fields and is known for its high rigidity, low torque, and excellent rotational performance.

Technical Parameter:

Applicable scenarios:

The EK series silent screw support seat plays an important role in multiple key fields. In the field of CNC machine tools, it provides stable support for the precise processing of machine tools, ensuring high precision and high quality in the processing process. In automated equipment, as a key component connecting ball screws and motors, the EK series support seat guarantees the smooth operation of the transmission system and improves the efficiency and reliability of automated production. In terms of precision instruments, with stable and high-precision support, it provides strong guarantee for the accurate measurement and reliable operation of instruments.

Product Function:

Stable support: High rigidity and low torque angular contact ball bearings are used to ensure the stability of the screw rod during high-speed operation.

Silent operation: By using special sealing gaskets and appropriate lubricating grease, friction noise is reduced to achieve silent operation.

High precision transmission: Designed with ultra small angular contact ball bearings to improve transmission accuracy and meet precision machining requirements.

Convenient installation: The support unit has a small volume, easy installation, reduces assembly time, and improves assembly accuracy.

Long term durability: The internal bearings have good sealing and long-lasting lubrication, ensuring long-term use without frequent maintenance.

Strong adaptability: Provides two types of support units: angular and circular, which can be flexibly selected according to actual use.

Reduce vibration: Optimized bearing design and support structure effectively reduce vibration and impact during the transmission process.

Improving efficiency: Stable support and transmission performance help to enhance the overall operational efficiency of the equipment.

Easy maintenance: compact structure, easy maintenance, reducing maintenance costs and time.
