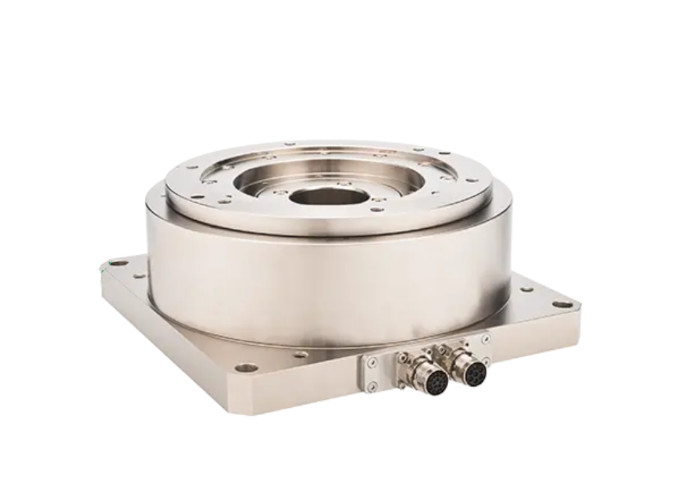

DMN95/DMN9A Linear Servo Motor 1.41 Nm Continuous Torque for Precise Motion Control
-
Highlight
1.41 Nm Linear Servo Motor
,Precise Motion Control Linear Servo Motor
,DMN95/DMN9A Linear Servo Motor
-
Continuous Torque1.41 Nm
-
Instantaneous Torque (1s)4.7 Nm
-
Torque Constant6.01 Nm/Arms
-
Maximum Speed8000 Rpm
-
Axial Deflection/radial Deflection0.03 Mm/0.03 Mm
-
Motor Weight2.36 Kg
-
Place of OriginTaiwan
-
Model NumberDMN95/DMN9A
-
Minimum Order QuantityNegotiate
-
PriceNegotiate
-
Packaging DetailsCustom packaging
DMN95/DMN9A Linear Servo Motor 1.41 Nm Continuous Torque for Precise Motion Control
The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.
Product Description:

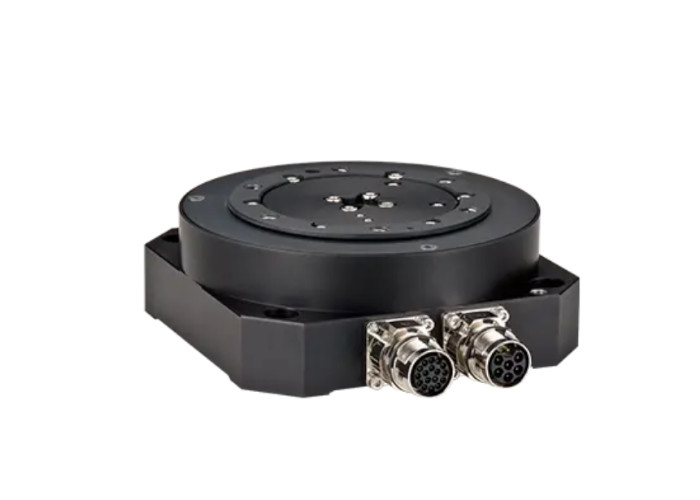

The DMN95/DMN9A series direct drive motors have the lightest appearance and use high-resolution incremental/absolute feedback systems to accurately feedback position. They have high dynamic response, high torque output, and high-precision positioning capabilities, making them suitable for industrial needs with low thrust but requiring precise positioning.
Technical Parameter:
| Specifications | Company | DMN95-5 | DMN9A-5 |
|---|---|---|---|
| Continuous torque | Nm | 47 | 94 |
| Continuous current | Arms | 4 | 12 |
| Instantaneous torque (1s) | Nm | 141 | 282 |
| Instantaneous current (1s) | Arms | 12 | 36 |
| Torque constant | Nm/Arms | 11.76 | 7.6 |
| time constant | ms | 4.7 | 4.3 |
| Inter line resistance (coil temperature 25C) | Ω | 6.01 | 1.06 |
| Inter line inductance | mH | 28 | 4.57 |
| Extreme numbers | 22 | 22 | |
| Back electromotive force constant (line to line) | Vrms/rad/s | 6.8 | 4.4 |
| Motor constant (coil temperature 25C) | Nm/√w | 3.9 | 6 |
| thermal resistance | K/W | 0.52 | 0.33 |
| Temperature sensor | PTC SNM100 | PTC SNM100 | |
| Maximum operating voltage | VDC | 600 | 600 |
| Rotor moment of inertia | Kgm2 | 0.042 | 0.042 |
| Motor quality | kg | 22.5 | 31.5 |
| Maximum axial load | N | 8000 | 8000 |
| Maximum torque load | Nm | 120 | 120 |
| Maximum speed | rpm | 250 | 350 |
| resolving power | p/rev | 4320000 (incremental, sin/cos 1Vpp) | |
| Reproduce accuracy | arc-sec | ±2.5 | ±2.5 |
| accuracy | arc-sec | ±15/±10 | ±15/±10 |
| Axial deflection | mm | 0.03(0.0052) | 0.03(0.0052) |
| Radial deflection | mm | 0.03(0.0152) | 0.03(0.0152) |
| height | mm | 95 | 155 |
Applicable scenarios:
Semiconductor manufacturing: used for high-precision operations such as wafer cutting and packaging.
Laser cutting: supports high-precision cutting operations to ensure processing quality.
New energy: suitable for the manufacturing and maintenance of equipment such as solar panels and wind turbines.
Automotive manufacturing: precise positioning and assembly applied to automated production lines.
Consumer electronics: precision assembly of electronic products such as mobile phones, tablets, etc.
Panel industry: Manufacturing and processing of glass substrates and display panels.
Medical equipment: high-precision medical robots, surgical instruments, etc.
Measurement/Testing: High precision measurement and testing equipment to ensure product quality.
Product Function:
High precision: Adopting a high-resolution incremental optical ruler to achieve high-precision positioning and measurement.
High dynamic response: Excellent dynamic performance, regulating rapidly changing load conditions.
Miniaturization design: Internal rotating platform design reduces space occupation and enhances system integration.
Maintenance free: Designed for a long lifespan, reducing maintenance costs and downtime.
Multiple encoding options: Supports Hall sensors, mechanical brakes, different precision compensation, and other options to meet different application needs.
Wide applicability: Suitable for various automation equipment.
