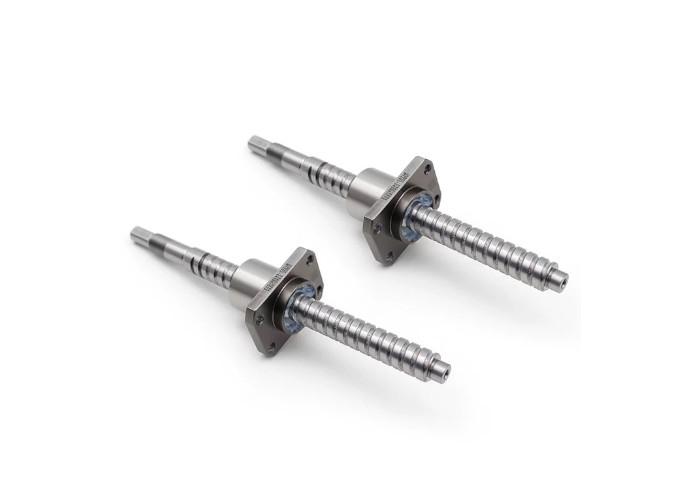

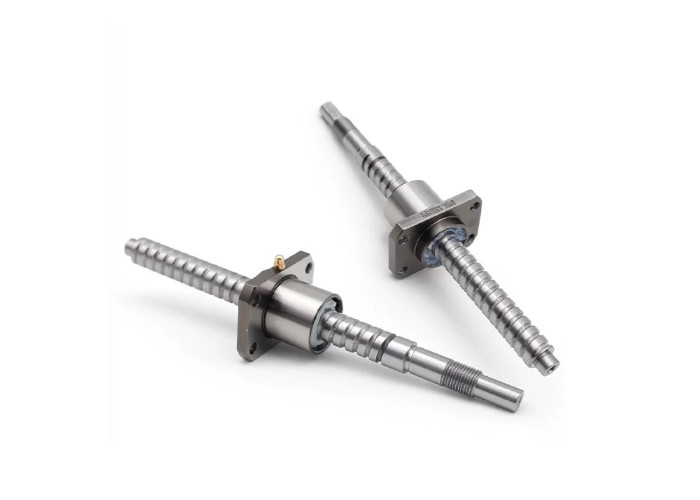

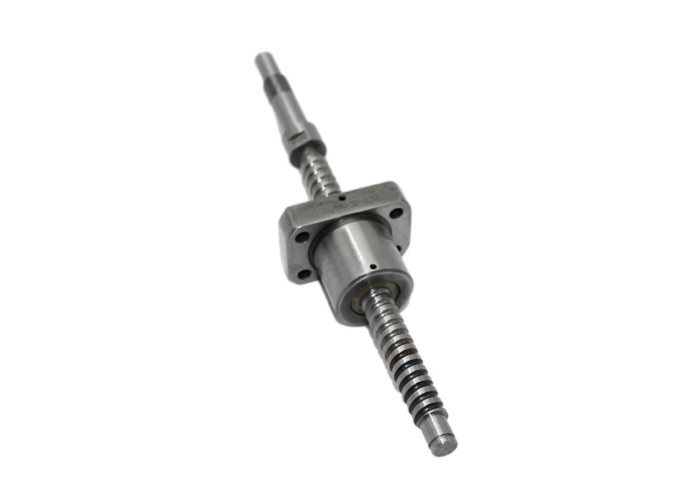

High Precision SA Type Ball Screw for Finished Shaft End Products C3/C5 Lead Accuracy

High Precision SA Type Ball Screw for Finished Shaft End Products C3/C5 Lead Accuracy

  • Highlight

    C3/C5 Ball Screw

    ,

    Finished Shaft End Ball Screw

    ,

    High Precision Ball Screw

  • Type
    SA Type Ball Screw For Shaft End Finished Products
  • Lead Accuracy
    C3、C5
  • Environmental Tolerance
    Tall
  • Place of Origin
    Japan
  • Model Number
    SA series ball screw
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

High Precision SA Type Ball Screw for Finished Shaft End Products C3/C5 Lead Accuracy

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

The SA type shaft end product is a high-precision, low friction ball screw designed specifically for various industrial equipment and precision instruments. Its superior performance is attributed to its precise manufacturing process and material selection, ensuring reliability in high-speed operation and high-precision positioning scenarios. The SA type ball screw not only provides stable linear motion, but also has a long service life and easy maintenance.

Technical Parameter:

Nut model Axis diameter x lead/rotation direction Pre compression mode/cycle mode Ball diameter/ball spacing circle diameter Screw groove diameter Effective number of laps Accuracy level/preload, gap symbol Basic rated load
Rated dynamic load Rated static load
MPFD 8x2/right P preloading/internal circulation type 1.200/8.3 6.9 1×3 C3/Z 1080 1630
PFT 10x4/right P pre pressure/tube circulation type 2.00/10.3 8.2 2.5×1 C3/Z 2250 3290

Applicable scenarios:

SA type ball screws are widely used in fields such as CNC machine tools, automation equipment, industrial robots, semiconductor equipment, medical devices, and precision measuring instruments. They play a crucial role in these high-precision and cutting-edge devices, achieving precise, stable, and high-speed linear motion control.

Product Function:

Accurate positioning: High lead accuracy ensures the precise positioning of mechanical equipment during high-precision machining or measurement.

High speed operation: supports high-speed movement, improves production efficiency, and reduces non production time.

Strong bearing capacity: able to withstand large dynamic and static loads, meeting the requirements of heavy load or impact load applications.

Long lifespan: Excellent materials and design extend the service life of bearings and reduce maintenance costs.

Easy maintenance: The simple structural design facilitates replacement and maintenance, reducing downtime.

Low noise operation: Optimized raceway design and high-quality lubrication reduce noise and vibration during operation.

Wide adaptability: Supports multiple installation methods, suitable for different device layouts and space limitations.

Environmental tolerance: Made of corrosion-resistant materials and sealed design, suitable for working in harsh environments.

Stable and reliable: Through precision machining and strict quality control, the stability and reliability of bearings are ensured.

Adjustable preload: Provides preload force adjustment function to meet the requirements of rigidity and motion accuracy in different application scenarios.

Support and Services

  • 24/7 customer service support to answer any questions.
  • Expert advice on product selection and troubleshooting.
  • Detailed product information and training materials.
  • Full warranty and repair services.
  • Product updates and upgrades.

Packing and Shipping

Finished SA type ball screw at the shaft end is packaged and shipped in a cardboard box that is designed to keep the product safe and secure during transit. The box has a custom-sized insert to fit the product securely, and is sealed with tape. Inside the box, the product is wrapped in bubble wrap and foam padding to provide additional cushioning and protection. A packing slip and any promotional materials are included in the package.The package is then shipped via a reliable carrier such as UPS or FedEx. Tracking information is provided to the customer to follow the package's progress. Delivery time will vary depending on the chosen shipping method and destination.
