    Sturdy BK Series Supports

    ,

    Supports for Mechanical Applications

  • Model Range
    BK10/12/15/20/25/30/35/40/50
  • Material Quality
    High Quality Alloy Steel
  • Surface Treatment
    Hard Chrome Plating Or Special Rust Prevention Treatment
  • Place of Origin
    Japan
  • Model Number
    BK
  • Minimum Order Quantity
    Negotiate
  • Price
    Negotiate
  • Packaging Details
    Custom packaging

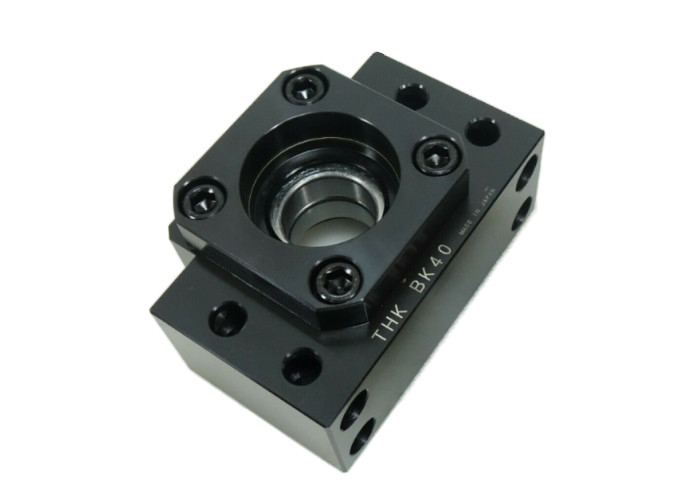

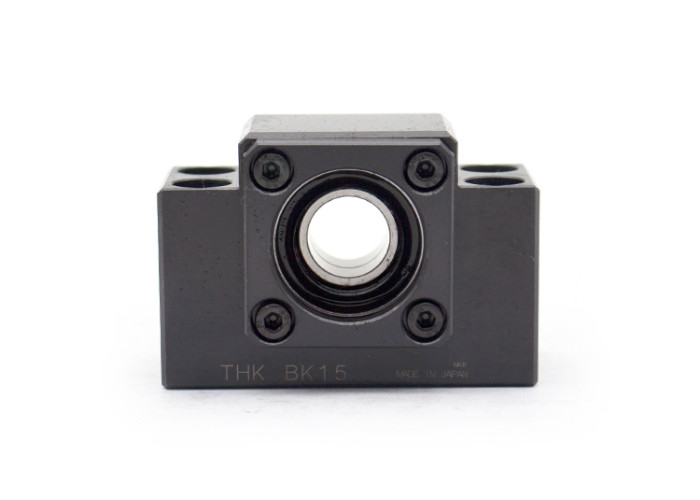

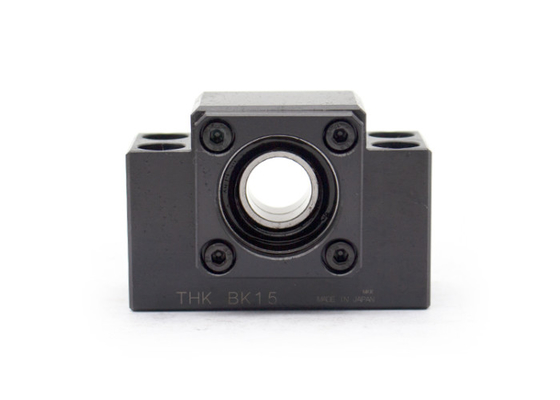

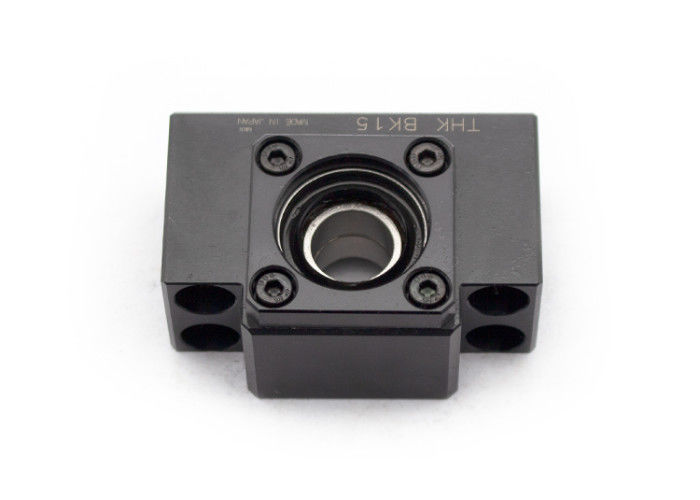

Sturdy BK Series Supports for Mechanical Applications

  • Sturdy BK Series Supports for Mechanical Applications
  • Sturdy BK Series Supports for Mechanical Applications
  • Sturdy BK Series Supports for Mechanical Applications
Get Price Contact Now

The pictures, models, parameters and other relevant information displayed in the product are for reference only. If you are searching for products related to fields such as electronic components, precision components, office automation, and factory automation, or if you need customized products in this field. Welcome to contact us through the consultation form, telephone or any way you find convenient. We will reply to you as soon as possible. We always adhere to the purpose of striving for the best to provide you with the highest quality service. We look forward to establishing a friendly and stable cooperative relationship with you.

Product Description:

The BK series support seat is a high-performance, multifunctional screw fixing seat and motor bearing bracket designed specifically for various industrial automation and precision mechanical equipment. This series of products has been widely used in fields such as machine tools, automation equipment, semiconductor equipment, etc. due to its stable support, high precision, and easy installation. The BK series products ensure their reliability and durability under complex working conditions through meticulous craftsmanship and strict quality control.

Technical Parameter:

Model Shaft diameter L L1 L2 L3 B H b h1 B1 H1
d ±0.02 ±0.02
BK  10 10 25 5 29 5 60 39 30 22 34 32.5
BK  12 12 25 5 29 5 60 43 30 25 35 32.5
BK  15 15 27 6 32 6 70 48 35 28 40 38
BK  17 17 35 9 44 7 86 64 43 39 50 55
BK  20 20 35 8 43 8 88 60 44 34 52 50
BK  25 25 42 12 54 9 106 80 53 48 64 70
BK  30 30 45 14 61 9 128 89 64 51 76 78
BK  35 35 50 14 67 12 140 96 70 52 88 79
BK  40 40 61 18 76 15 160 110 80 60 100 90



P C1 C2 d1 d2 h M T Using bearings Quality
kg
46 13 6 6.6 10.8 5 M3 16 Equivalent to 7000 0.39
46 13 6 6.6 10.8 1.5 M3 19 Equivalent to 7001 0.41
54 15 6 6.6 11 6.5 M3 22 Equivalent to 7002 0.57
68 19 8 9 14 8.5 M4 24 Equivalent to 7203 1.27
70 19 8 9 14 8.5 M4 30 Equivalent to 7004 1.19
85 22 10 11 17.5 11 M5 35 Equivalent to 7205 2.3
102 23 11 14 20 13 M6 40 Equivalent to 7206 3.32
114 26 12 14 20 13 M8 50 Equivalent to 7207 4.33
130 33 14 18 26 17.5 M8 50 Equivalent to 7208 6.5



Sturdy BK Series Supports for Mechanical Applications 0

Part number Component Name number
1 Supporting seat 1
2 Bearing 1 set
3 Fixed cover 1
4 Ring ring 2
5 seal ring 2
6 Lock nut 1
7 Hexagonal socket fixing screw (with cushion block) 1

Applicable scenarios:

The BK series support seat is widely used in the following fields:

Transmission system of CNC machine tools and automation equipment.

Positioning systems for semiconductor manufacturing and precision electronic equipment.

Support structure for robot arm and automation workstation.

Various mechanical systems that require high-precision linear motion.

Product Function:

High precision support: provides stable support for the screw and bearings, ensuring high-precision positioning and movement.

Reduce vibration: Through structural design, effectively reduce vibration during operation and improve operational stability.

Easy to install and maintain: Provides standard installation dimensions and simple installation instructions for users to quickly install and maintain.

Improving efficiency: Optimized structural design makes equipment operate more smoothly, thereby enhancing production efficiency.

Long lifespan: High quality materials and exquisite craftsmanship ensure the durability and long-term service life of the product.

Support and Services

  • 24/7 customer service support to answer any questions.
  • Expert advice on product selection and troubleshooting.
  • Detailed product information and training materials.
  • Full warranty and repair services.
  • Product updates and upgrades.

Packing and Shipping

BK series support seat is packaged and shipped in a cardboard box that is designed to keep the product safe and secure during transit. The box has a custom-sized insert to fit the product securely, and is sealed with tape. Inside the box, the product is wrapped in bubble wrap and foam padding to provide additional cushioning and protection. A packing slip and any promotional materials are included in the package.The package is then shipped via a reliable carrier such as UPS or FedEx. Tracking information is provided to the customer to follow the package's progress. Delivery time will vary depending on the chosen shipping method and destination.
